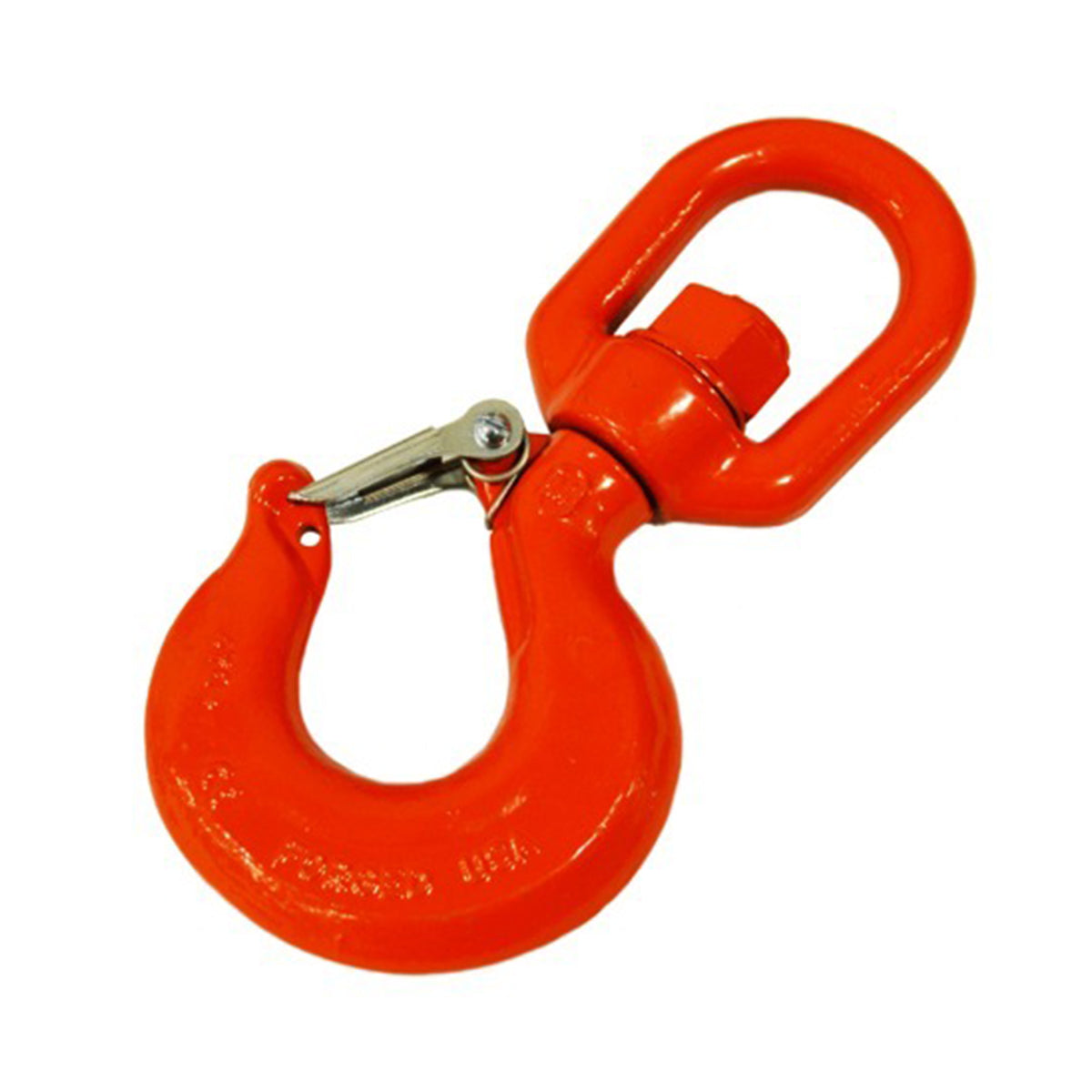

16mm Eye Swivel Hook With Latch
A Grade 80 alloy steel eye swivel hook with safety latch, rated to 8,000 kg WLL. Ideal for heavy-duty lifting in oil, gas, and industrial applications.
- Working load limit
- 8,000 kg
- Min. breaking load
- 32,000 kg
- Grade
- Grade 80
- Material
- High-grade alloy steel
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This 16 mm eye swivel hook with safety latch is a robust, Grade 80 (Quenched and Tempered) alloy steel lifting component designed for demanding industrial environments, including oil and gas. The integrated swivel allows the hook to be freely positioned prior to loading, reducing snagging and improving operational efficiency, while the spring-loaded safety latch prevents accidental opening under load.
Each hook is marked with the brand, working load limit (WLL), batch number, and size for full traceability, and has been proof load tested to 2.5 times its WLL. The ultimate breaking load is four times the rated capacity, providing a substantial safety margin in critical lifting situations.
- Grade 80 high-alloy steel construction, Quenched and Tempered for superior strength
- Working Load Limit: 8,000 kg
- Spring-loaded safety latch prevents hook opening under load
- 360° swivel eye for easy positioning before loading
- Proof load tested to 2.5× WLL; ultimate load 4× WLL
- Marked with brand, WLL, batch number, and size for full traceability
- Suitable for use with Grade 80 alloy chain in lifting applications
Key features
- 01Grade 80 alloy steel
- 028,000 kg working load limit
- 03Safety latch included
- 04360° swivel eye
- 05Fully traceable
Specification
