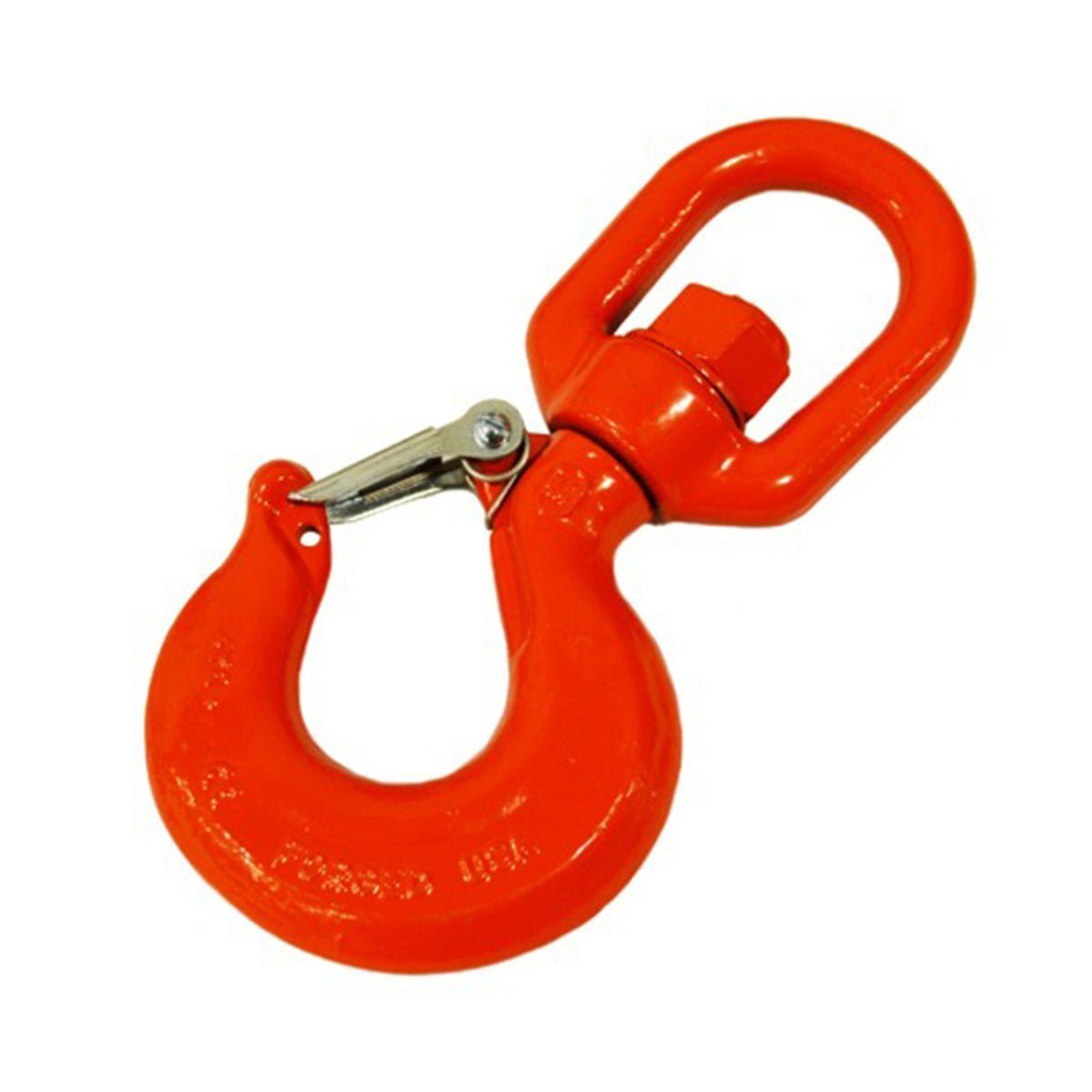

13mm Eye Swivel Hook With Latch
A Grade 80 alloy steel eye swivel hook with safety latch, rated to a 5,300 kg WLL. The integrated swivel allows easy pre-load positioning, making it ideal for chain lifting applications in demanding industries.
- Working load limit
- 5,300 kg
- Min. breaking load
- 21,200 kg
- Grade
- Grade 80
- Material
- High-grade alloy steel
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This 13 mm eye swivel hook with safety latch is a robust, Grade 80 alloy steel lifting component designed for use in heavy-duty chain rigging applications. Suitable for the oil and gas industry and any environment where reliable, safe lifting is essential, the hook's engineered construction prevents accidental opening under load.
The integrated swivel eye allows the hook to be freely positioned before loading, reducing twisting and improving handling efficiency. A spring-loaded safety latch provides an additional layer of security, keeping loads retained at all times.
- Made from high-grade alloy steel, Grade 80 (Quenched and Tempered)
- Working Load Limit (WLL): 5,300 kg
- Proof load tested to 2.5× WLL
- Ultimate load capacity is 4× the rated WLL
- Marked with brand, WLL, batch number and size for full traceability
- Compatible with Grade 80 alloy chain for lifting applications
- Spring-loaded safety latch prevents accidental load release
- Swivel eye allows pre-load positioning to reduce chain twist
Key features
- 01Grade 80 alloy steel
- 025,300 kg working load limit
- 03Safety latch
- 04Integrated swivel eye
- 05Fully traceable
