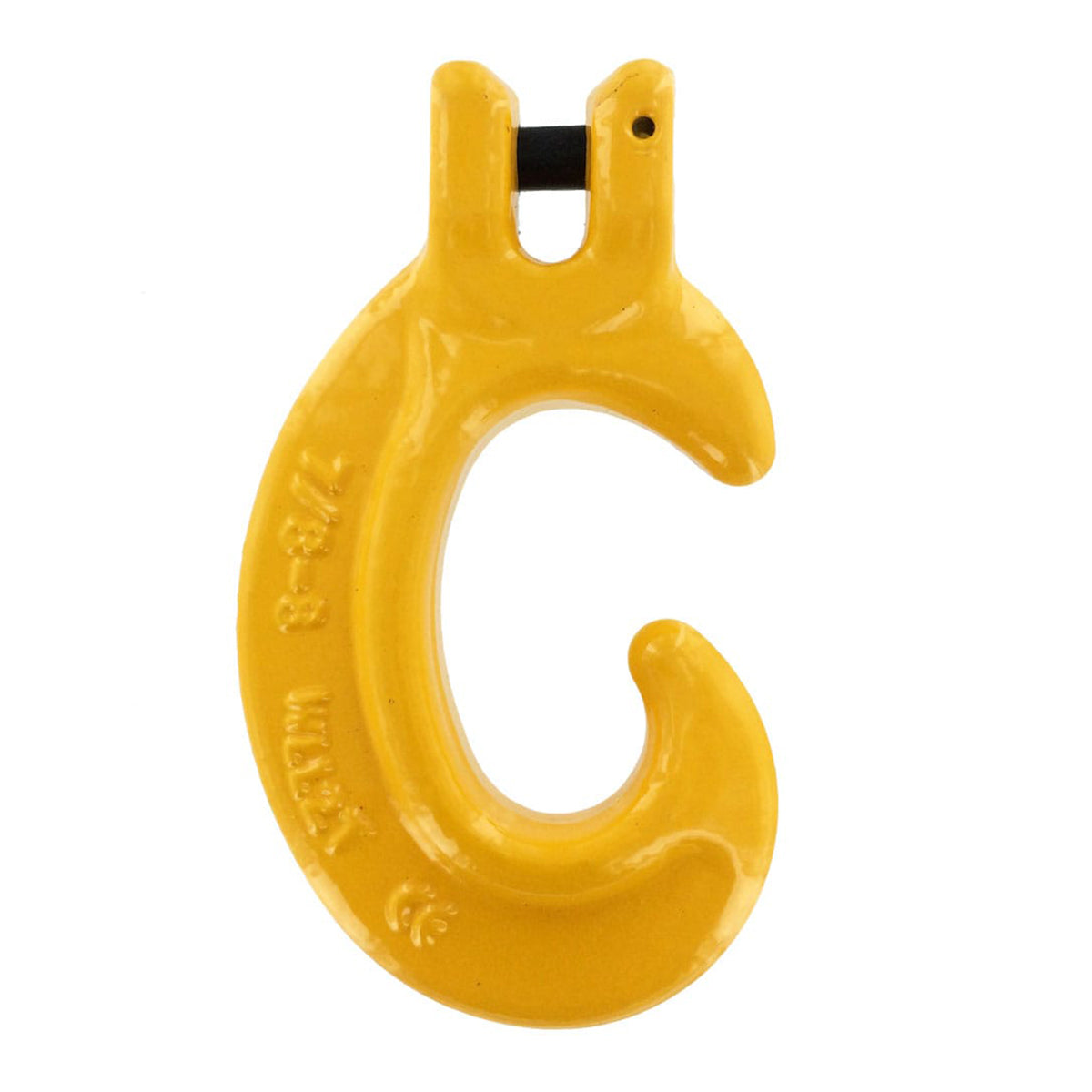

13mm Clevis C Hook
A Grade 80 alloy steel clevis C hook with a 5,300 kg WLL, designed for fast, reliable slinging and lifting applications where no safety catch is required.
- Working load limit
- 5,300 kg
- Min. breaking load
- 21,200 kg
- Grade
- Grade 80
- Fittings
- C-hook
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
Clevis C hooks are a versatile chain component used across a wide range of slinging and lifting applications where a safety catch is not required. This 13 mm hook is manufactured from high-grade quenched and tempered alloy steel to Grade 80 standard, making it suitable for use with Grade 80 alloy chain and wire rope.
The large throat opening allows for quick, straightforward hooking and unhooking, helping to keep operations efficient. Carefully profiled contours prevent fouling during use, and the durable yellow painted finish makes the component easy to identify on site. Every hook is marked with the brand, working load limit, batch number, and size, ensuring full traceability throughout its working life.
- Working Load Limit (WLL): 5,300 kg
- Chain width: 13 mm
- Material grade: Grade 80 (Quenched and Tempered alloy steel)
- Proof load tested to 2.5× WLL
- Ultimate load capacity: 4× WLL
- Marked with brand, WLL, batch number and size for full traceability
- Large throat opening for fast hooking and removal
- Contoured design prevents fouling
Key features
- 015,300 kg Working Load Limit
- 02Large throat opening for fast
- 03Contoured profile prevents fouling
- 04Proof load tested to 25× WLL
- 05Fully traceable
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
