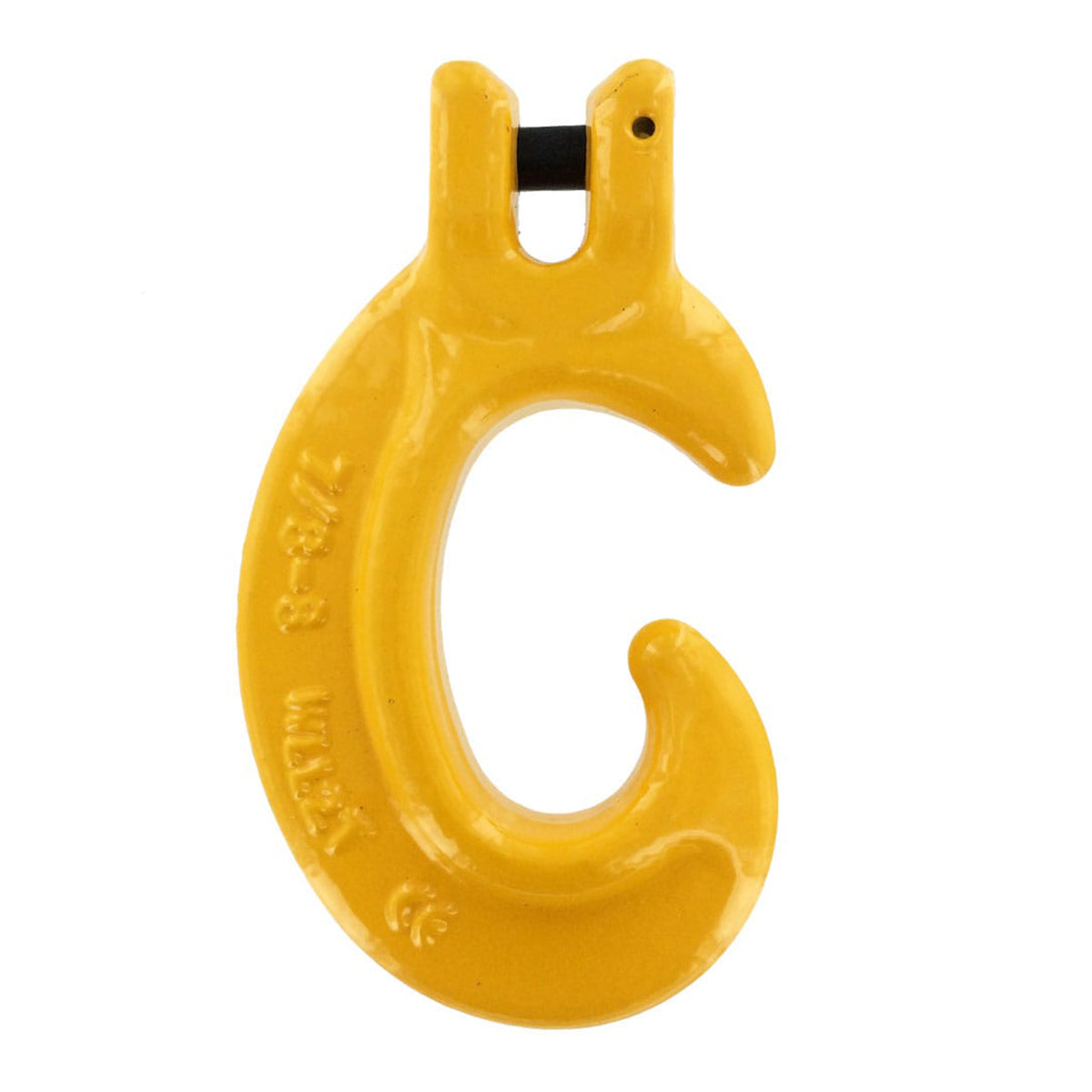

10mm Clevis C Hook
A Grade 80 alloy steel clevis C hook with a 3,100 kg WLL, designed for fast, secure slinging and lifting applications where no safety catch is required.
- Working load limit
- 3,100 kg
- Min. breaking load
- 12,400 kg
- Grade
- Grade 80
- Fittings
- C-hook
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
Clevis C hooks are a versatile chain component used across a wide range of slinging and lifting applications where a safety catch is not required. This 10 mm hook is forged from high-grade alloy steel to Grade 80 (Quenched and Tempered) specification, making it suitable for use with Grade 80 alloy chain and wire rope.
The large throat opening allows for quick and straightforward hooking and unhooking, while the carefully contoured profile prevents fouling during use. Every hook is marked with the brand, working load limit, batch number and size for full traceability, and is supplied in a durable yellow/green painted finish for easy identification on site.
- Working Load Limit (WLL): 3,100 kg
- Chain size: 10 mm
- Material: Grade 80 high-grade alloy steel (Quenched and Tempered)
- Proof load tested to 2.5× WLL
- Ultimate load capacity: 4× WLL
- Marked with brand, WLL, batch number and size for full traceability
- Durable yellow/green painted finish for easy site identification
- Contoured profile designed to prevent fouling
Key features
- 013,100 kg Working Load Limit
- 02Grade 80 Quenched and Tempered alloy steel
- 03Proof load tested to 25× WLL
- 04Large throat opening with anti-fouling contours
- 05Fully traceable
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
