13.5T Dee Shackle – 1-1/8" Screw Pin | ABLE SPD028
Forged screw pin D-shackle with a 9.5-tonne WLL, CE marked and permanently stamped. Built for heavy-duty rigging, lifting and lashing across industrial and marine applications.
- Working load limit
- 9,500 kg
- Safety factor
- 4
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

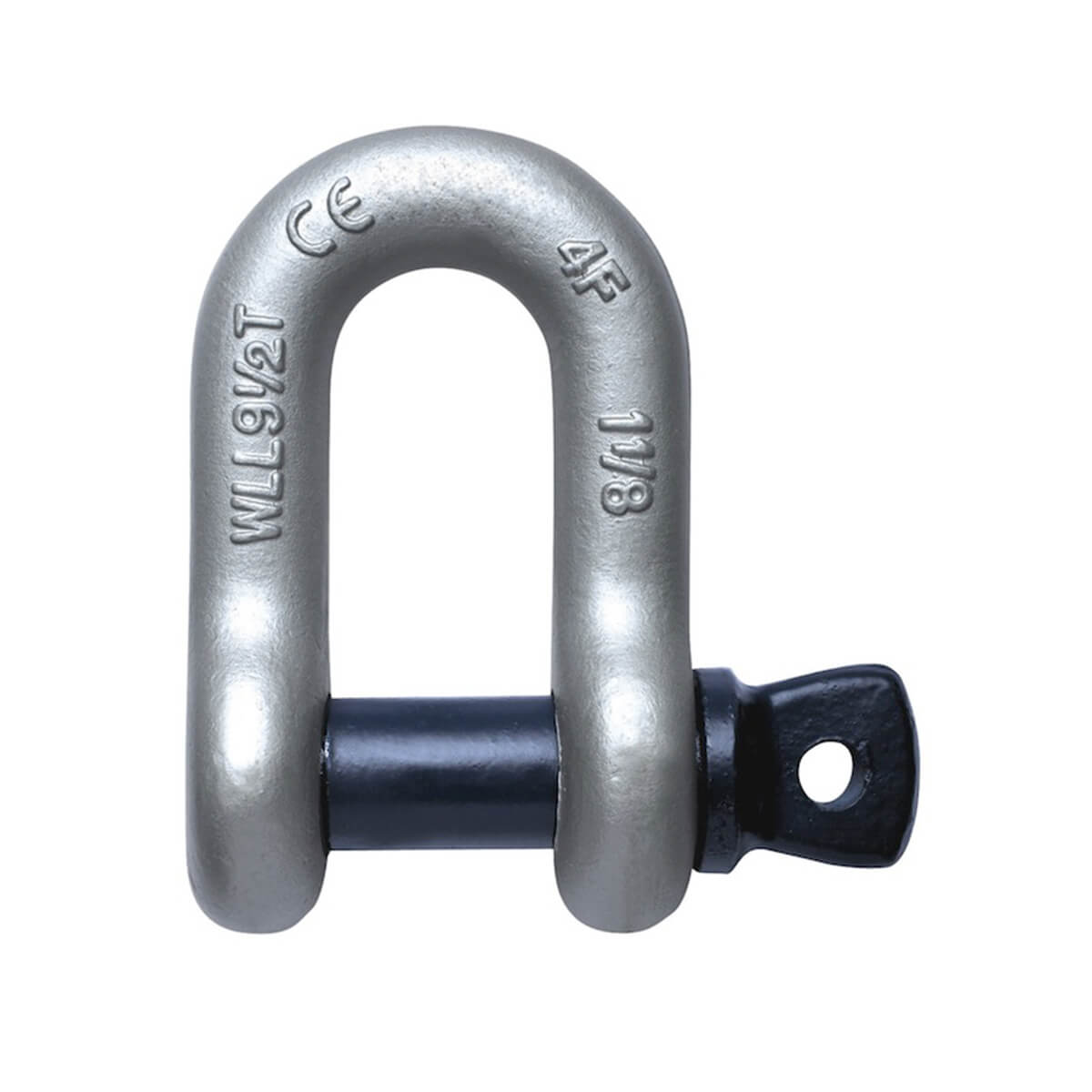

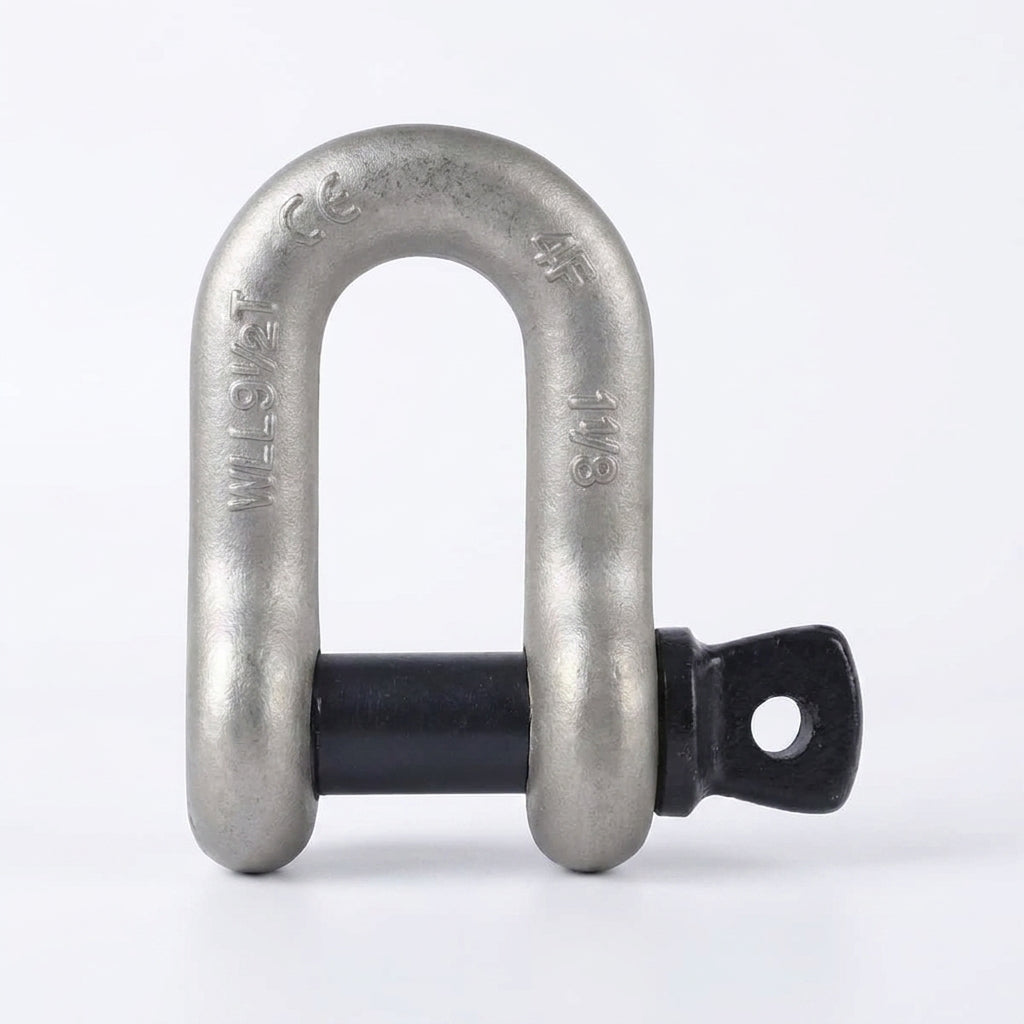

The ABLE Forged Screw Pin Dee Shackle (Model SPD028) is a heavy-duty connecting link designed for demanding rigging, lifting, and lashing operations. Stamped with its Working Load Limit, size, safety factor, and CE mark directly on the bow, this shackle provides instant, permanent identification on site, no guesswork, no risk of mix-ups.

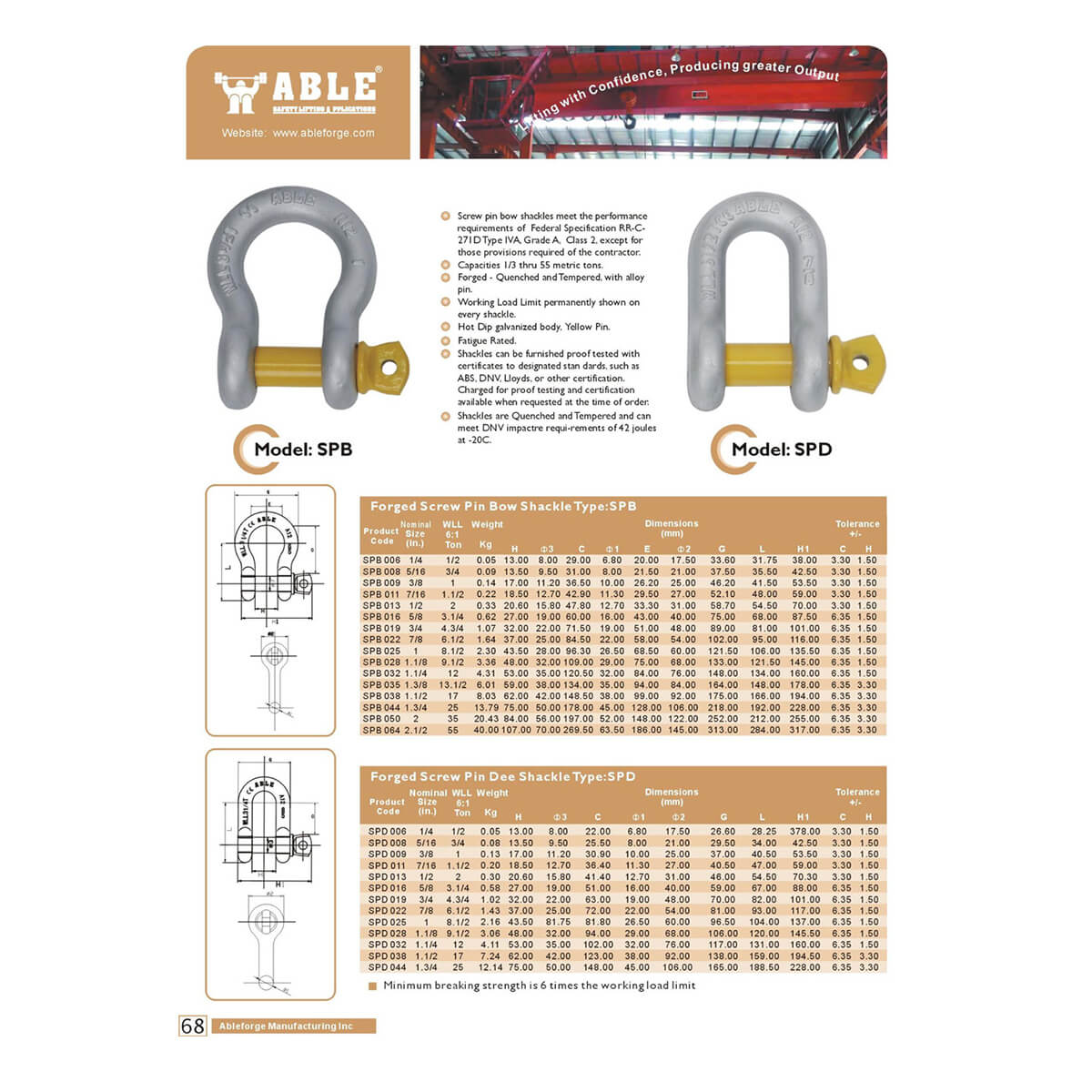

Forged from steel and quenched and tempered for maximum toughness, the shackle body delivers reliable in-line load performance. The screw pin features a captive nut design with a cotter-pin hole for additional security in dynamic or marine environments. A minimum breaking strength of 6 times the working load limit is inherent to the design, as stated in the Ableforge specification sheet.
- Working Load Limit: 9.5 t (WLL permanently stamped on bow)
- Nominal pin size: 1-1/8" (as stamped on shackle)
- Safety factor: 4:1 (stamped as "4F" on bow)
- CE marked, legible on every shackle
- Forged steel, quenched and tempered construction

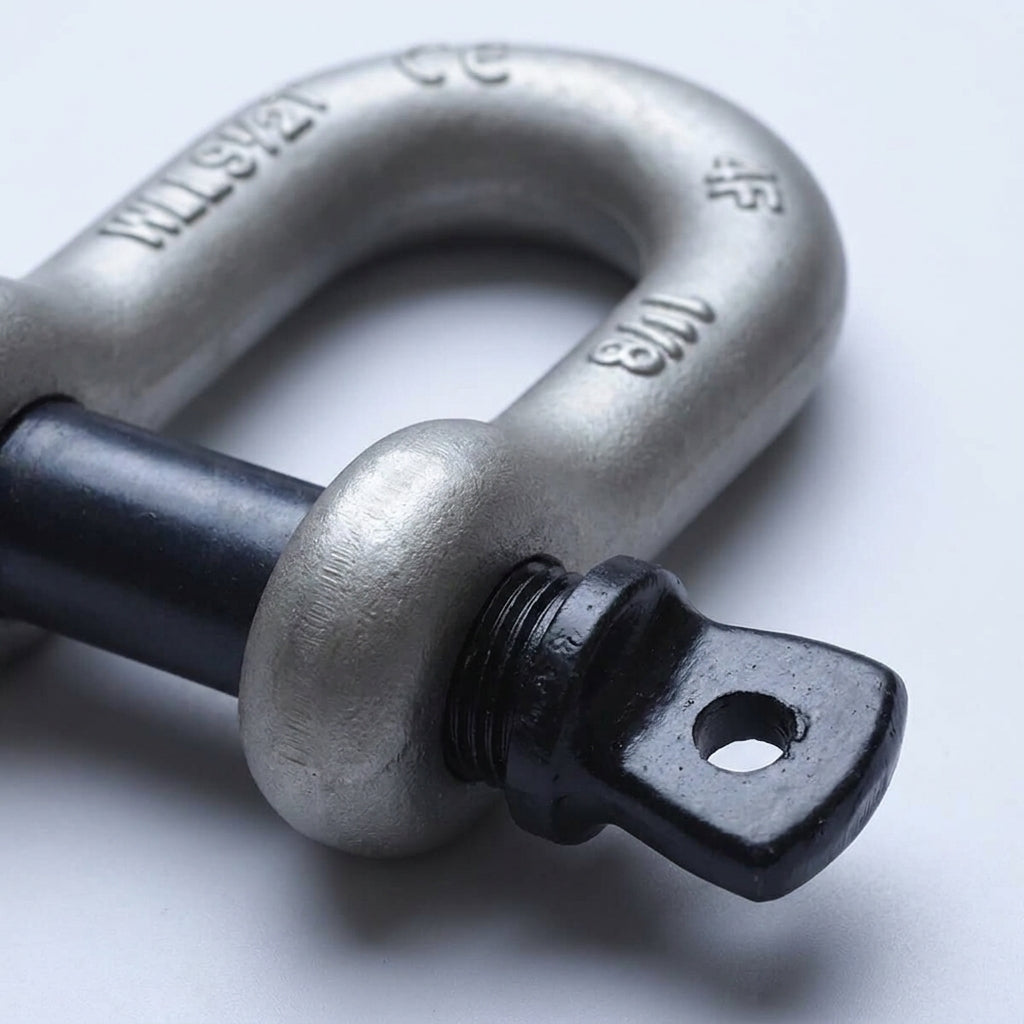

- Screw pin with cotter-pin hole for security
- Minimum breaking strength 6 × WLL (per Ableforge spec sheet)

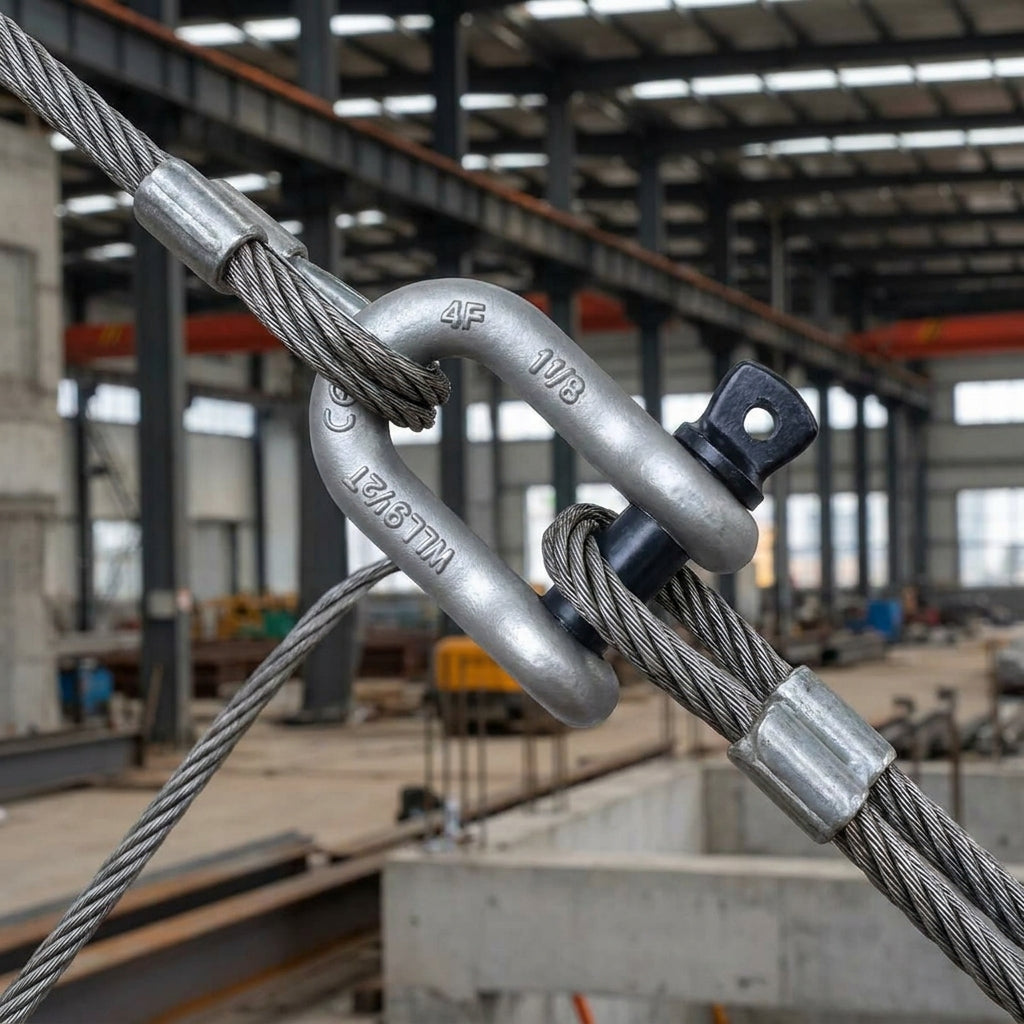

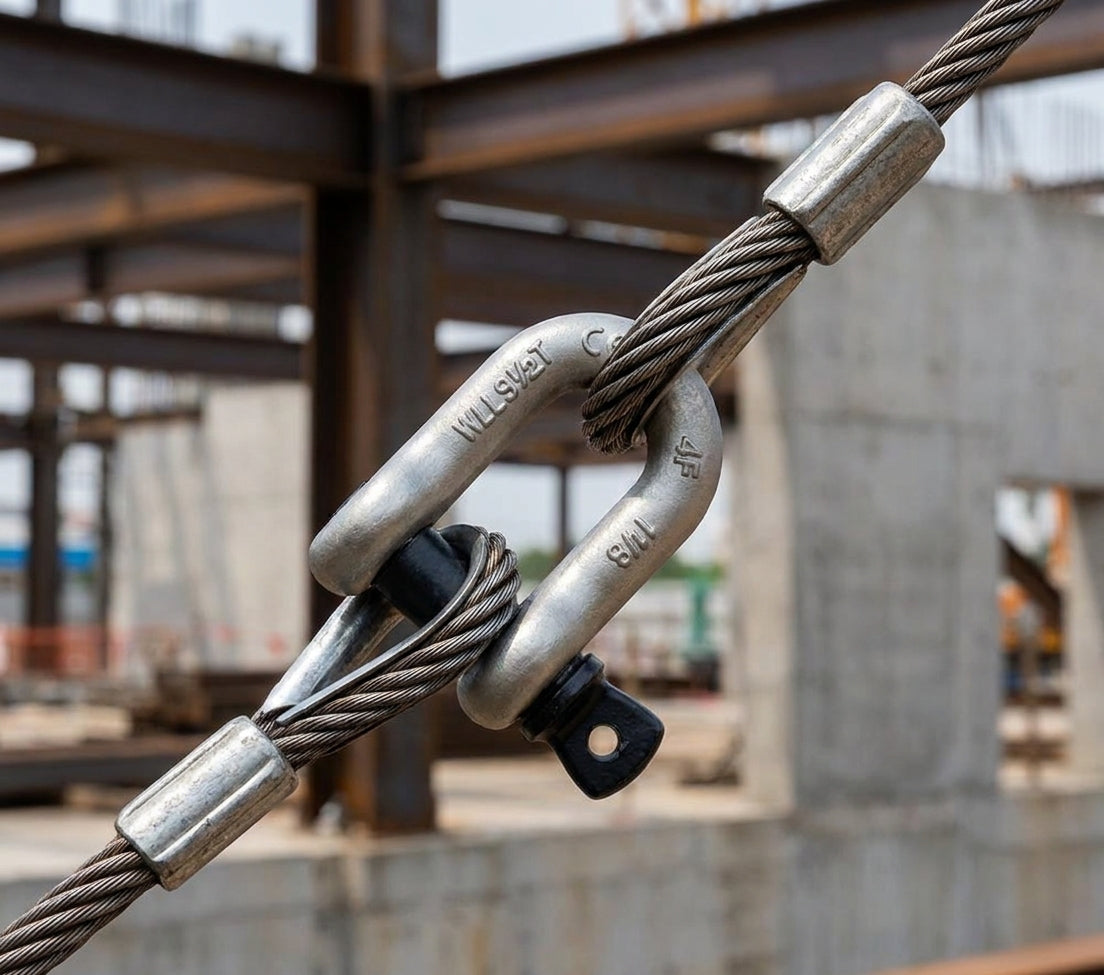

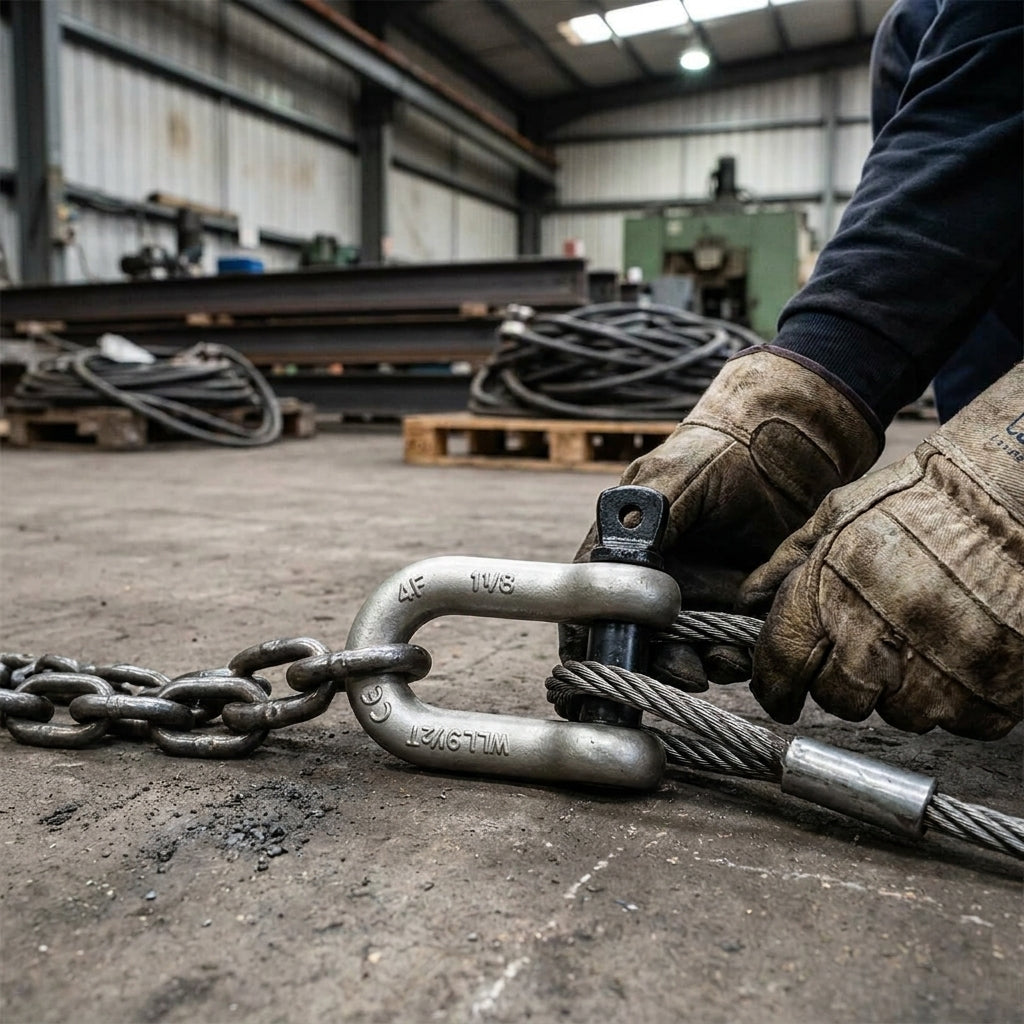

- Suitable for crane rigging, marine, and heavy industrial lifting
Key features
- 0195-tonne WLL stamped on every shackle
- 02CE marked & safety factor 4:1
- 03Forged screw pin dee shackle
- 04Quenched & tempered steel
- 056× minimum breaking strength
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
