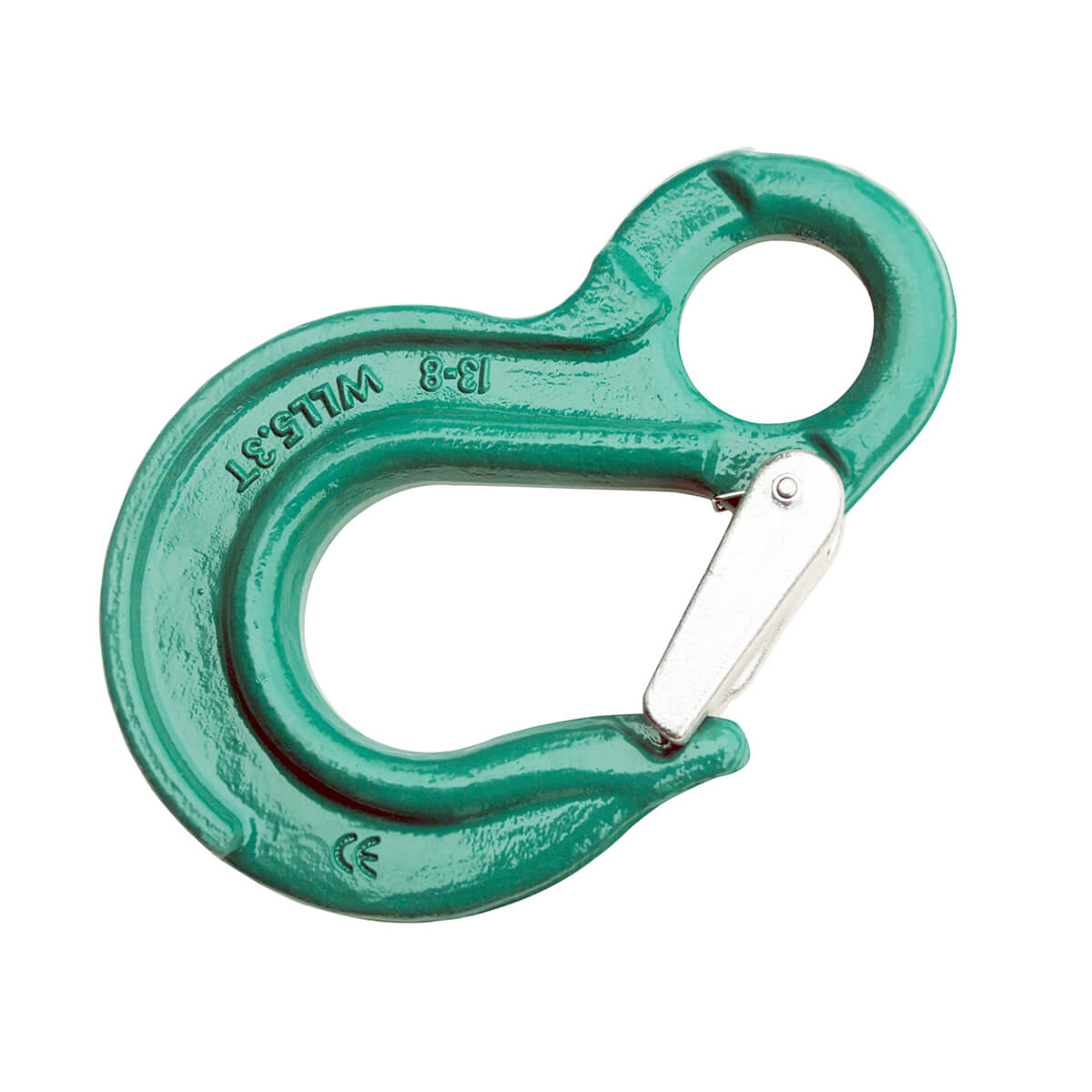

10mm Eye Sling Hook – Grade 80 Alloy Steel (HES 010)
A Grade 80 forged alloy steel eye sling hook with stainless steel safety latch, rated to a 3.2-tonne WLL. Ideal for use with 10 mm alloy chain in lifting and rigging applications.
- Working load limit
- 3,200 kg
- Min. breaking load
- 12,800 kg
- Grade
- Grade 80
- Fittings
- Sling hook
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

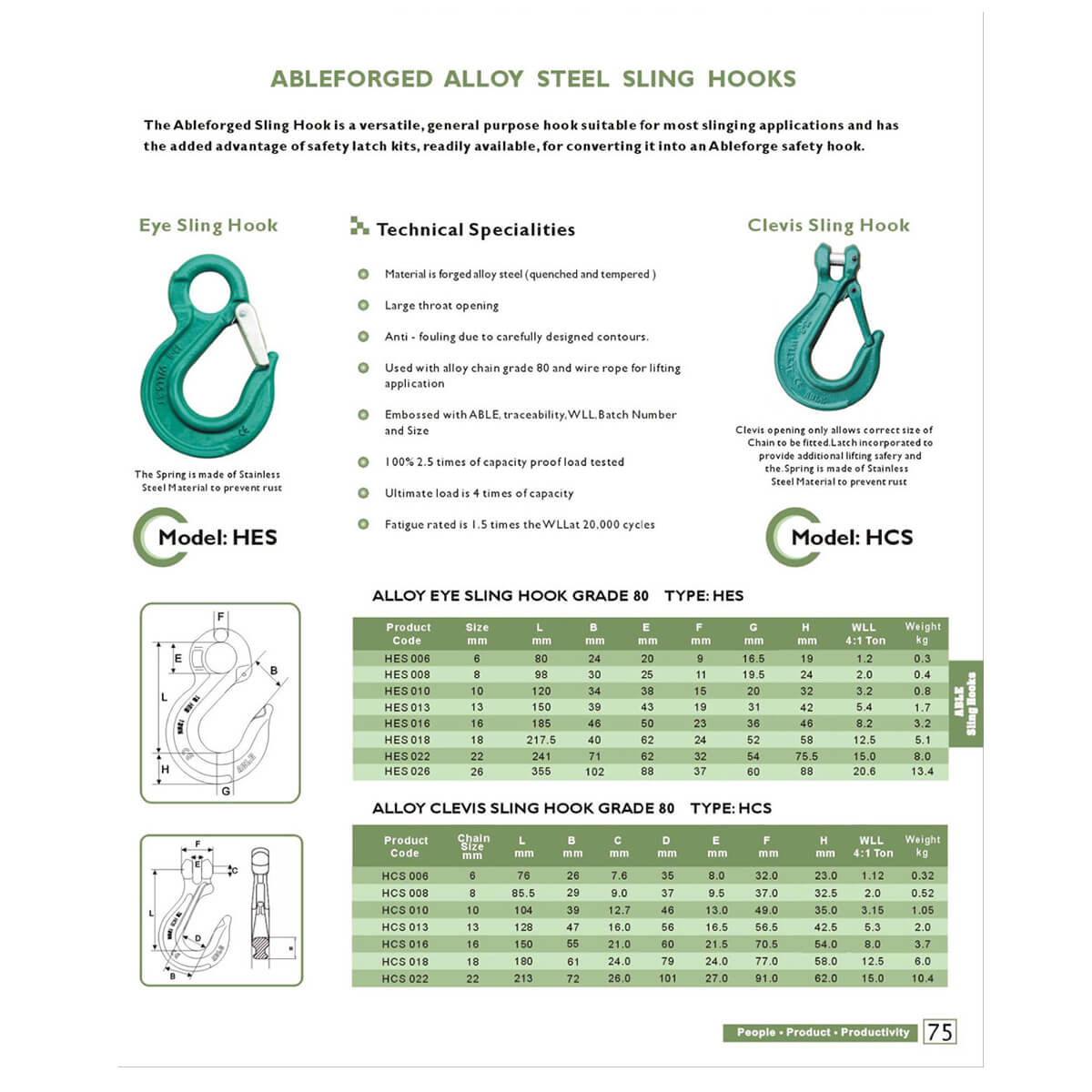

The Ableforged HES 010 Eye Sling Hook is a versatile, general-purpose Grade 80 forged alloy steel hook designed for use with 10 mm alloy chain and wire rope in most slinging and lifting applications. Its large throat opening and carefully designed anti-fouling contours make attachment and release straightforward, even in demanding conditions.
Each hook is embossed with the brand, WLL, batch number and size for full traceability, and is 100% proof load tested to 2.5 times its working load limit as standard. The stainless steel safety latch prevents accidental load release and is rust-resistant for long service life.
- Material: forged alloy steel, quenched and tempered, Grade 80
- Working Load Limit (WLL): 3.2 tonnes (4:1 safety factor)
- Proof load tested to 2.5× WLL; ultimate load is 4× capacity
- Fatigue rated to 1.5× WLL at 20,000 cycles
- Large throat opening with anti-fouling contoured body
- Stainless steel safety latch spring to prevent rust
- Embossed with brand, WLL, batch number and size for traceability
- Green painted finish
Key features
- 01Grade 80 forged alloy steel
- 02Safety latch as standard
- 03100% proof load tested
- 04Fits 10 mm alloy chain
- 05Fully traceable
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
