1000kg Vertical Lifting Clamp – Able VLC1
The Able VLC1 is a 1-tonne rated vertical lifting clamp designed for the safe vertical lifting, turning and transfer of steel plates and structural steelwork, with a built-in safety latch that holds even when the lifting rope is slackened.
- Working load limit
- 1 kg
- Material
- 20 CrMn Ti alloy steel (forged and heat treated)
- Safety factor
- 6
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

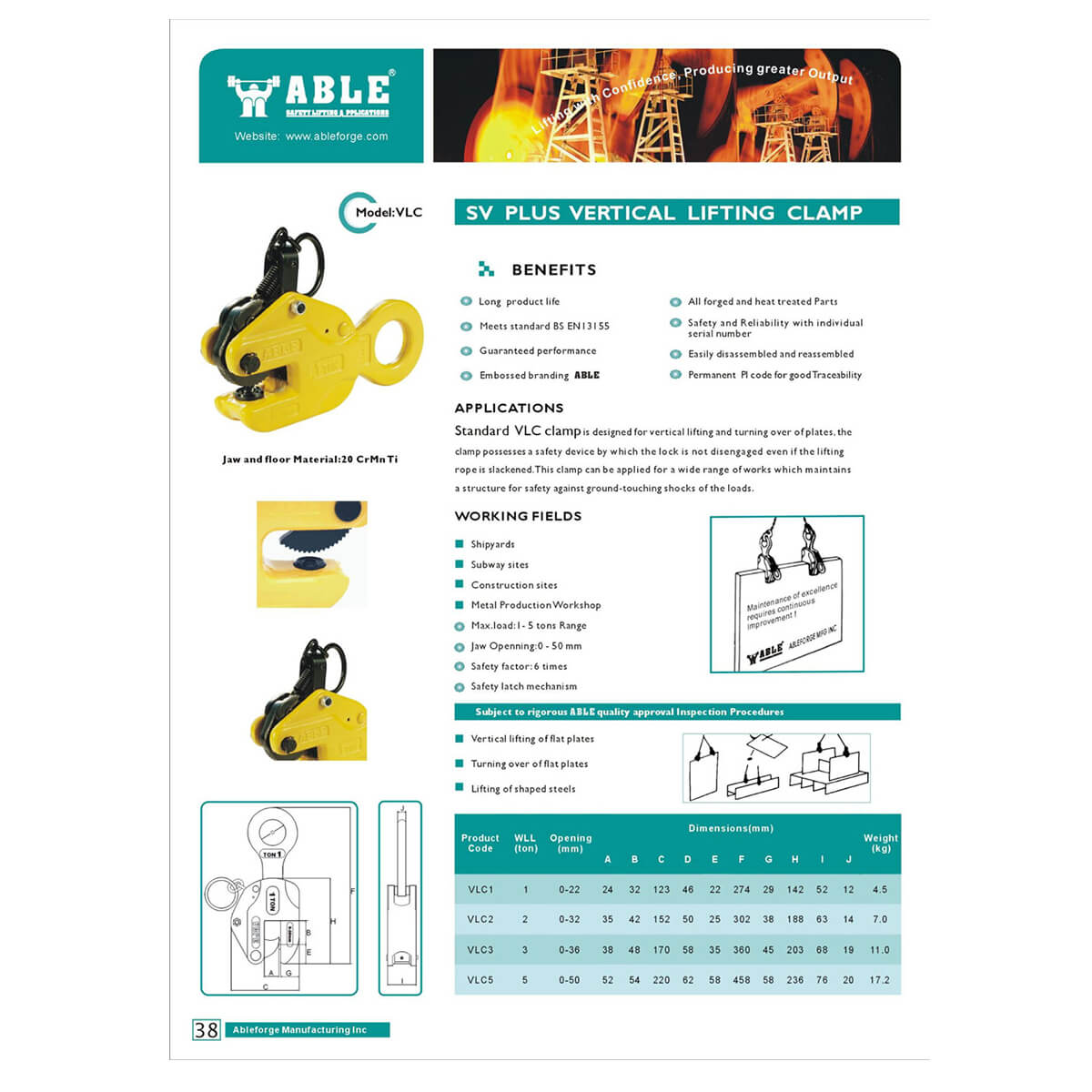

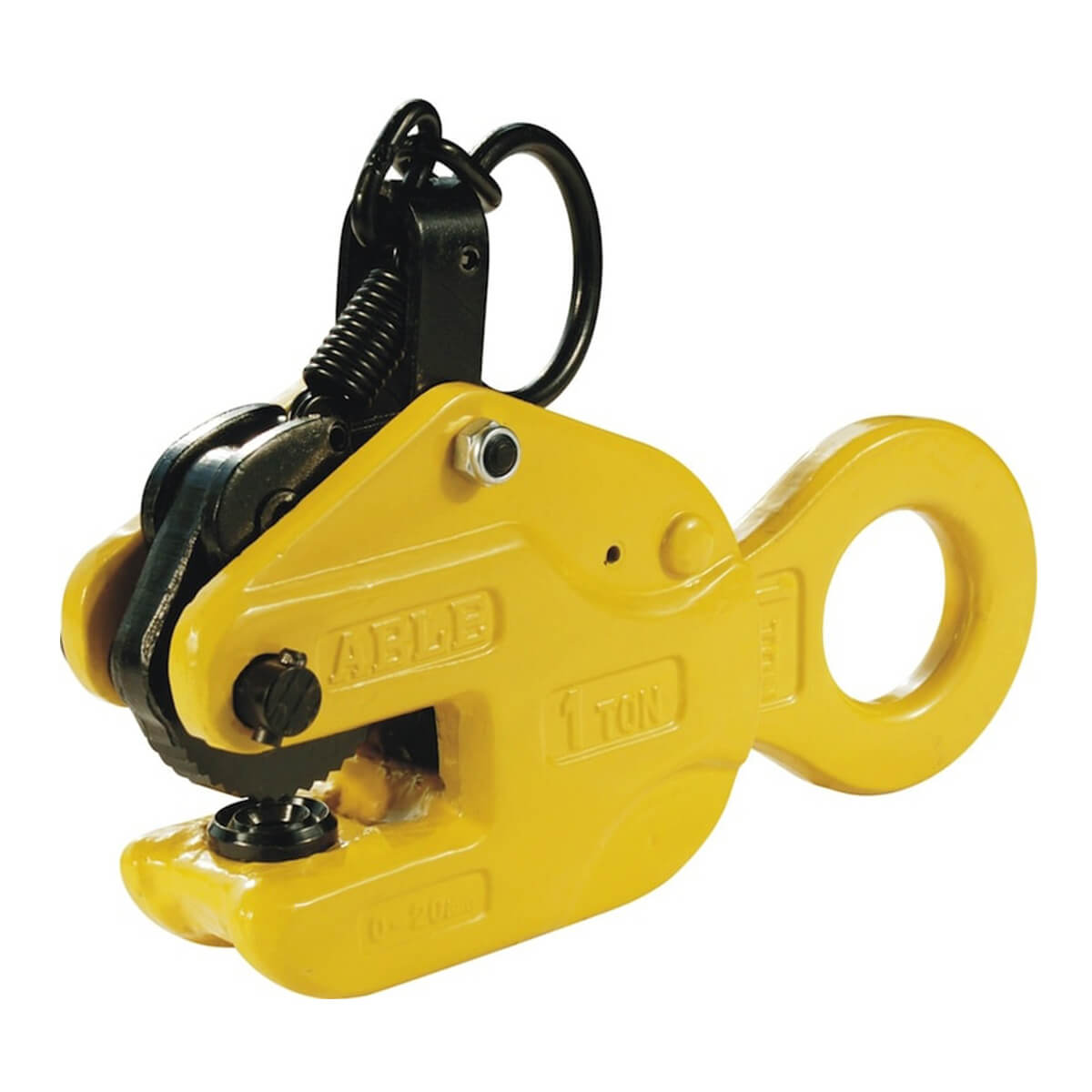

Able SV Plus Vertical Lifting Clamp, 1 Tonne (VLC1)
The Able VLC1 is a professional-grade vertical lifting clamp built for the vertical lifting, turning over and transfer of flat steel plates, shaped steels and other sheet materials. Engineered from fully forged and heat-treated alloy steel (20 CrMn Ti jaw and floor material), every clamp is individually serialised and PI-coded for complete traceability throughout its working life.
A positive safety latch mechanism ensures the clamp jaw cannot disengage even if the lifting rope goes slack, providing a critical layer of protection against accidental load release. The clamp meets BS EN 13155 and is subject to Able's rigorous quality approval inspection procedures before leaving the factory.
Key Features
- All forged and heat-treated parts for maximum strength and long service life
- Built-in safety latch, jaw remains locked even when lifting rope is slackened
- Individual serial number and permanent PI code for full traceability
- Meets BS EN 13155 standard for non-fixed load lifting attachments
- Safety factor of 6 times the Working Load Limit
- Jaw opening 0-22 mm to suit a range of plate thicknesses
- Easily disassembled and reassembled for maintenance
Typical Applications
- Vertical lifting and turning of flat steel plates
- Lifting of shaped and structural steels
- Shipyards, subway sites, construction sites and metal production workshops
Key features
- 01Rated 1 tonne WLL
- 02Positive safety latch
- 03Meets BS EN 13155
- 04All-forged construction
- 05Versatile jaw opening
