1000kg Geared Girder Trolley With Chain
A hand-operated geared girder trolley designed to travel along the bottom flange of a monorail beam, giving precise control when moving and positioning suspended loads up to 1,000 kg, no power supply required.
- Working load limit
- 1,000 kg
- Material
- Cast and fabricated steel
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

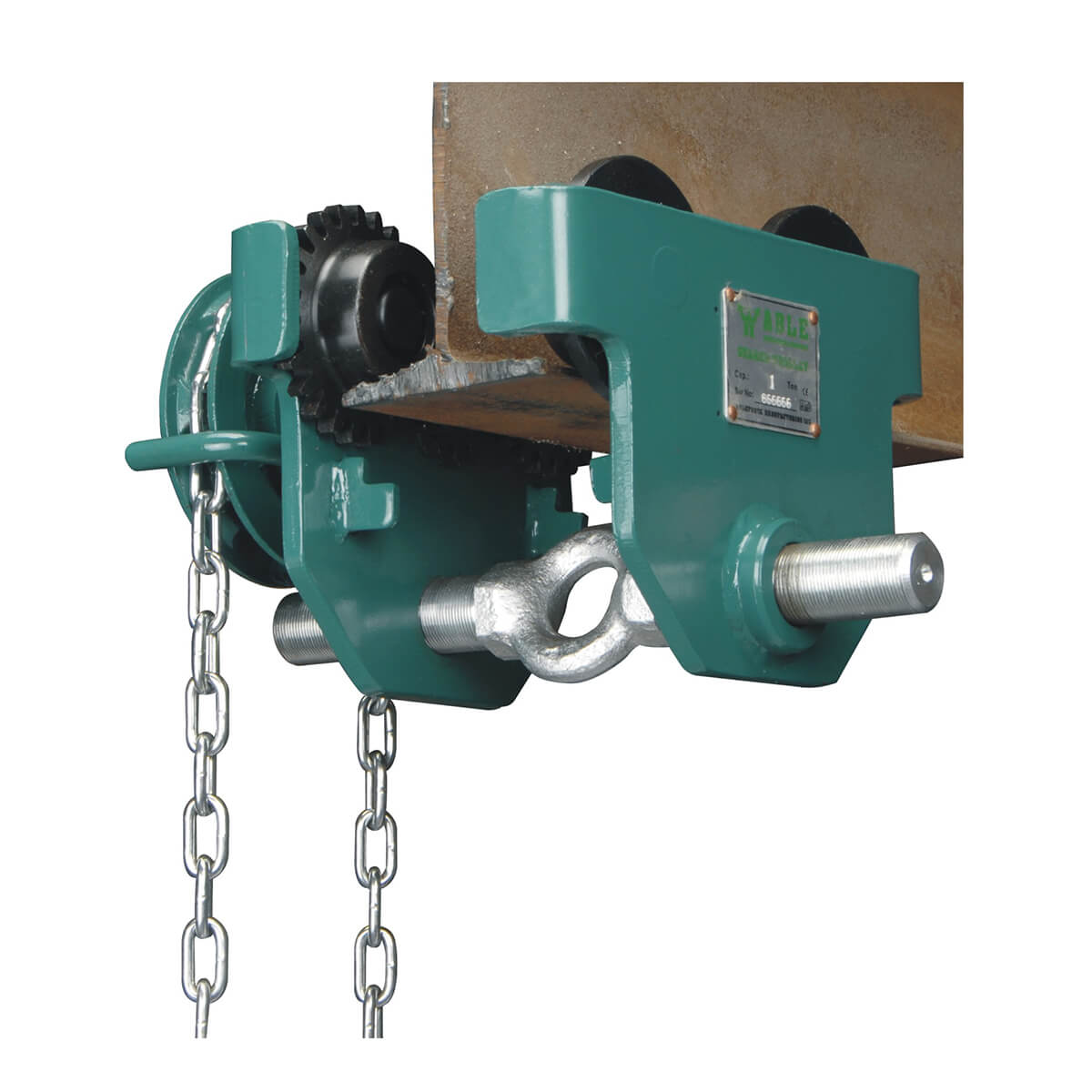

1000kg Geared Girder Trolley With Chain
This heavy-duty geared girder trolley (Model GT-II10) is hand-operated by pulling the hand chain, allowing smooth, controlled movement of suspended loads along the bottom flange of a monorail in either direction. With a working load limit of 1,000 kg and a test load of 1.50 tonnes, it is individually proof-load tested and certified to EN 13157-2010, making it a dependable choice for professional lifting applications.
The screw-adjustable hanger allows the trolley to be fitted to a wide range of I-beam flange widths, from 64 mm up to 220 mm, without the need for additional parts. This versatility makes it well suited to factories, mines, wharves, docks, warehouses and engine rooms, particularly wherever no electrical power supply is available.
The geared drive mechanism provides a greater level of positional control compared with plain push trolleys, especially useful when handling heavier loads that need careful placement. The trolley is finished in a hard-wearing green paint and carries a hand-chain height of 3.0 m.
- Tested and certified to EN 13157-2010, individually proof-load tested with its own serial number
- Working load limit: 1,000 kg (1.0 tonne); test load: 1.50 tonnes
- Adjustable beam width: 64 mm minimum to 220 mm maximum flange width
- Hand-chain operated, no power supply required; ideal for remote or off-grid locations
- Minimum curve radius: 1.0 m; hand-chain height: 3.0 m

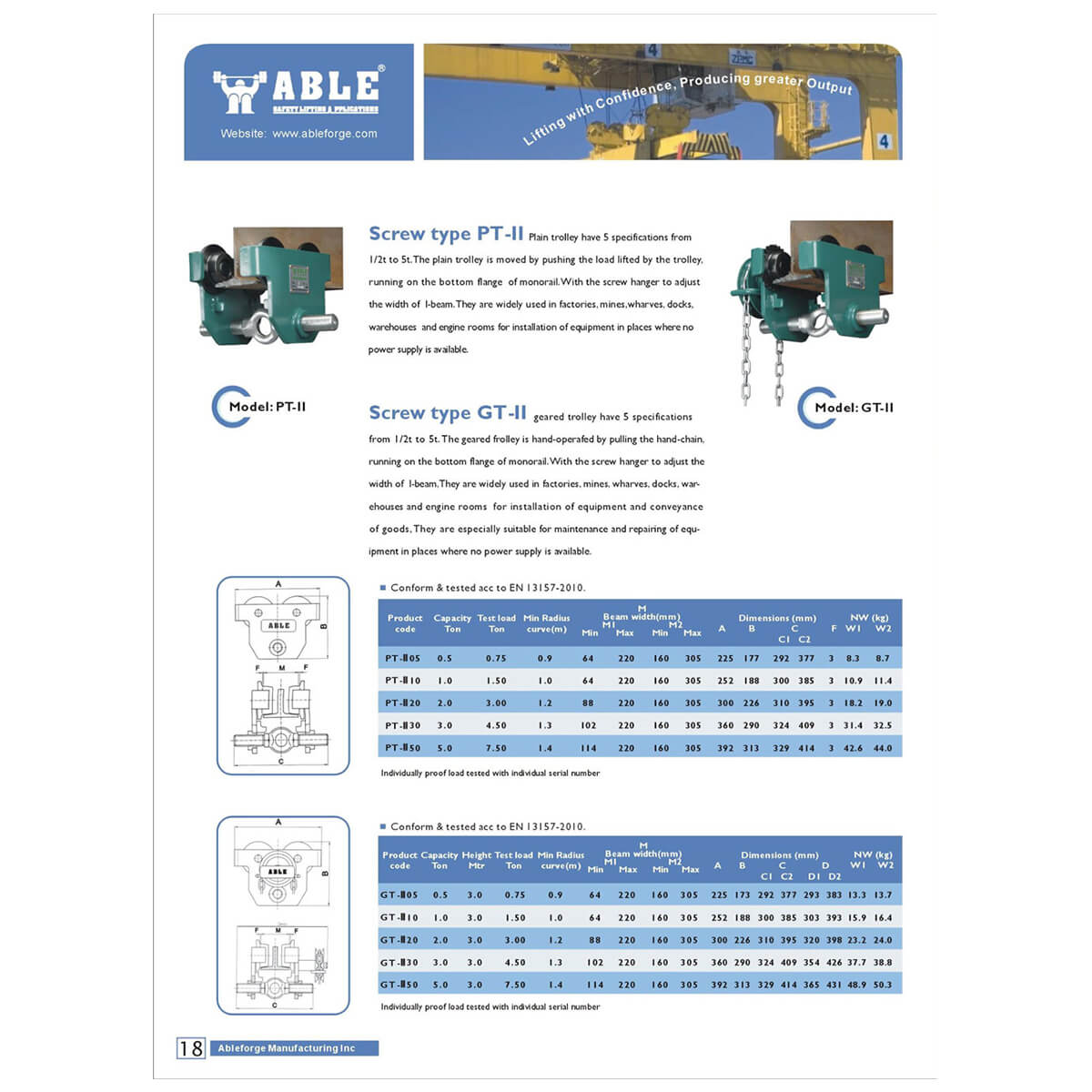

- Dimensions (mm): A 252, B 188, C1 300, C2 385, D1 303, D2 393
- Net weight: 15.9 kg (W1) / 16.4 kg (W2)
Key features
- 01Geared hand-chain operation
- 021,000 kg working load limit
- 03Wide beam compatibility
- 04Heavy-duty construction
- 05Minimum curve radius 10 m
