1,600kg Steel Wire Rope Puller x 60m
Able RWP-16 hand-operated steel wire rope puller with 1,600kg lifting capacity and 60m wire rope included. Compact, lightweight design ideal for pulling and lifting vehicles, machinery, and heavy loads at any angle.
- Working load limit
- 1,600 kg
- Pulling capacity
- 2,400 kg
- Rope diameter
- 11 mm
- Fittings
- Sling hook
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
Easy Winder Ratchet Strap Winder Tool £9.60£8.00
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

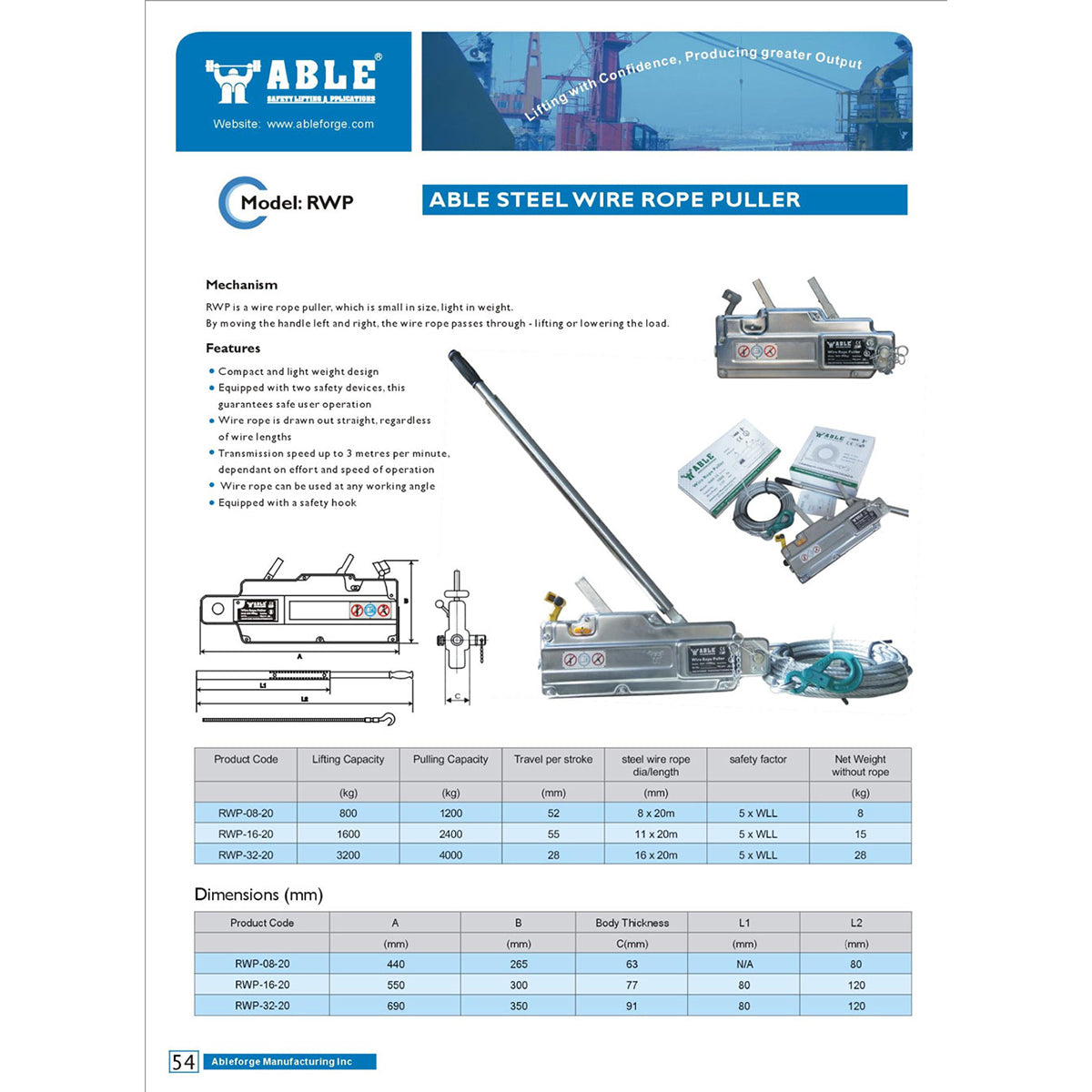

The Able Steel Wire Rope Puller (Model RWP) is a compact, hand-operated pulling and lifting tool designed for demanding industrial, construction, and recovery applications. By moving the handle left and right, the wire rope passes through the mechanism to lift or lower a load, no drum required, keeping the unit small and light.
This listing is for the 1,600kg lifting capacity (RWP-16-20) model supplied with a 60m steel wire rope. The wire rope is always drawn out straight regardless of length, and the puller can be used at any working angle, making it highly versatile on site.
- Compact and lightweight design, easy to transport and store
- Equipped with two built-in safety devices for safe user operation
- Transmission speed up to 3 metres per minute, depending on effort and speed of operation
- Wire rope can be used at any working angle
- Equipped with a safety hook; supplied with removable lever handle and 60m steel wire rope
- Wire rope diameter: 11mm; travel per stroke: 55mm
- Safety factor: 5 x WLL
Typical applications: moving vehicles, logs, plant machinery, and other heavy objects. The quick-release lever saves time when adjusting rope length. Ideal for construction sites, workshops, forestry, marine, and recovery operations.
Key features
- 011,600kg lifting capacity / 2,400kg pulling capacity
- 02Supplied complete
- 03Compact and lightweight design (15kg net without rope) means easy one-person transport and use in confined or remote locations
- 04Two built-in safety devices and wire rope always drawn out straight regardless of length ensure safe
- 05Transmission speed up to 3 metres per minute
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use a wire rope puller
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
