1,600kg Steel Wire Rope Puller with 30m Wire Rope – Able RWP-16-20

The Able RWP Steel Wire Rope Puller is a compact, hand-operated pulling and lifting tool designed for moving vehicles, logs, machinery, and other heavy loads. By moving the handle left and right, the wire rope is drawn through the body, lifting or lowering the load with no drum required, keeping the unit small and easy to transport.

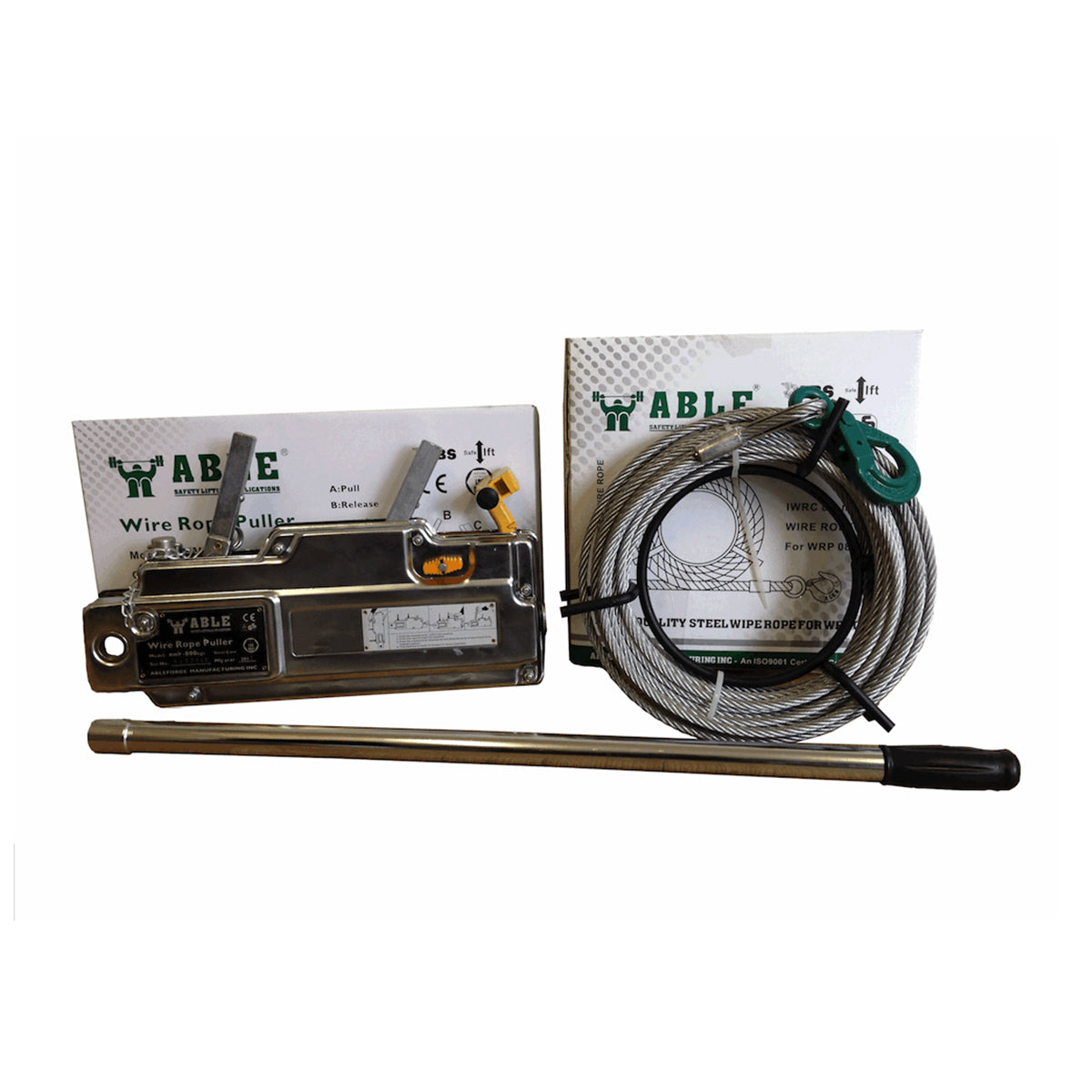

This listing is for the RWP-16-20 rated at 1,600 kg lifting capacity, supplied complete with a 30 m length of 11 mm diameter IWRC steel wire rope and a safety hook. The wire rope is always drawn out straight regardless of length, and can be used at any working angle, making it exceptionally versatile on site.

• Compact and lightweight body, no rope drum needed
• Dual safety devices built in for safe user operation
• Wire rope drawn out straight regardless of wire length
• Transmission speed up to 3 metres per minute (dependent on effort and speed of operation)
• Suitable for use at any working angle
• Supplied with safety hook and removable lever handle

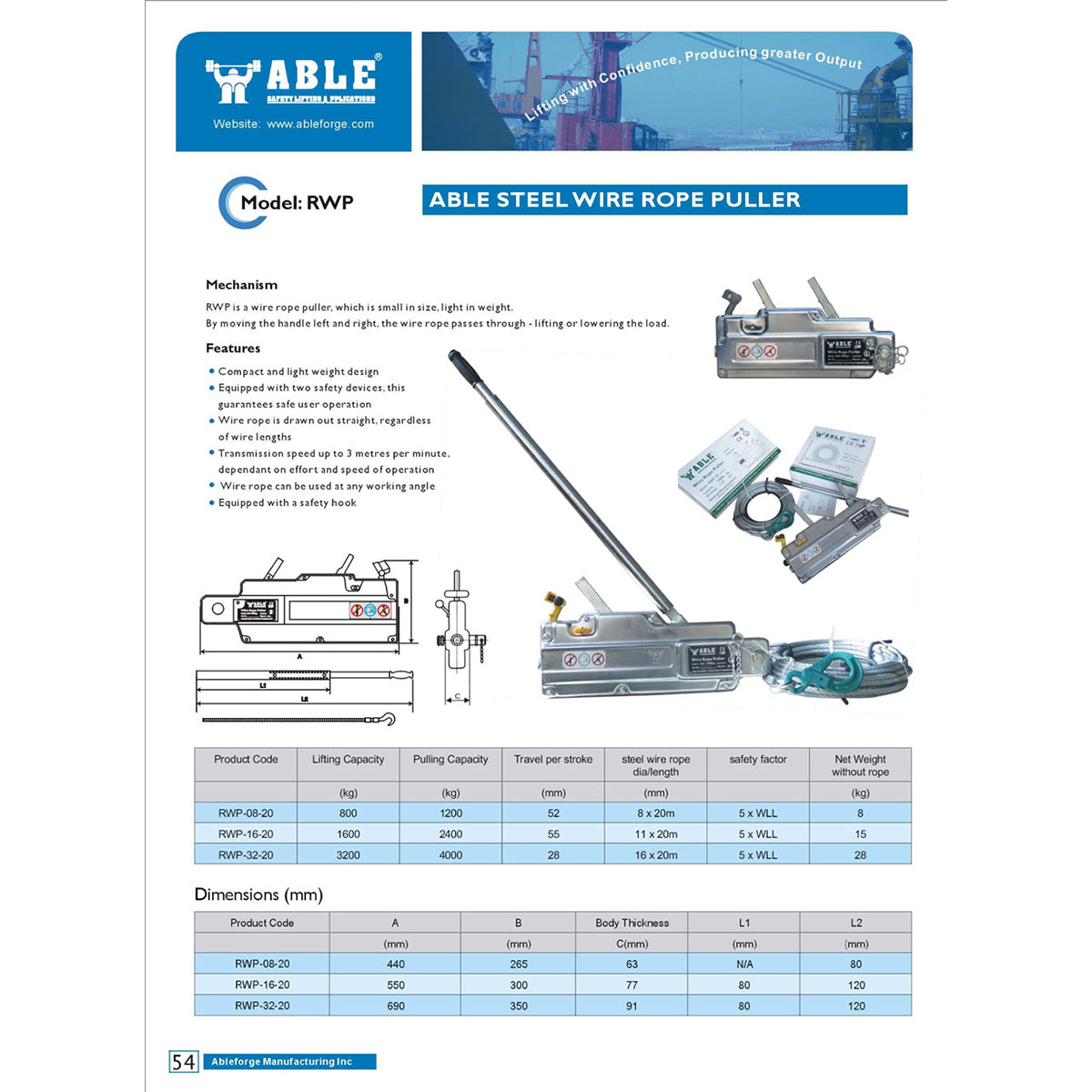

Specification (RWP-16-20):

• Lifting Capacity: 1,600 kg
• Pulling Capacity: 2,400 kg
• Travel per stroke: 55 mm
• Wire rope diameter / length: 11 mm × 20 m (30 m supplied with this listing)
• Safety factor: 5 × WLL
• Net weight (without rope): 15 kg
• Body length (A): 550 mm
• Body width (B): 300 mm
• Body thickness (C): 77 mm
• Handle length L2: 120 mm

Manufactured by Ableforge Manufacturing Inc, an ISO 9001 certified company. CE marked.
