1,600kg Steel Wire Rope Puller x 20m
Able RWP-16-20 hand-operated steel wire rope puller with 1,600kg lifting capacity and 20m wire rope included. Compact, lightweight, and suitable for any working angle, ideal for pulling and lifting vehicles, machinery, and heavy loads.
- Working load limit
- 1,600 kg
- Pulling capacity
- 2,400 kg
- Rope diameter
- 11 mm
- Fittings
- Sling hook
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
Easy Winder Ratchet Strap Winder Tool £9.60£8.00
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

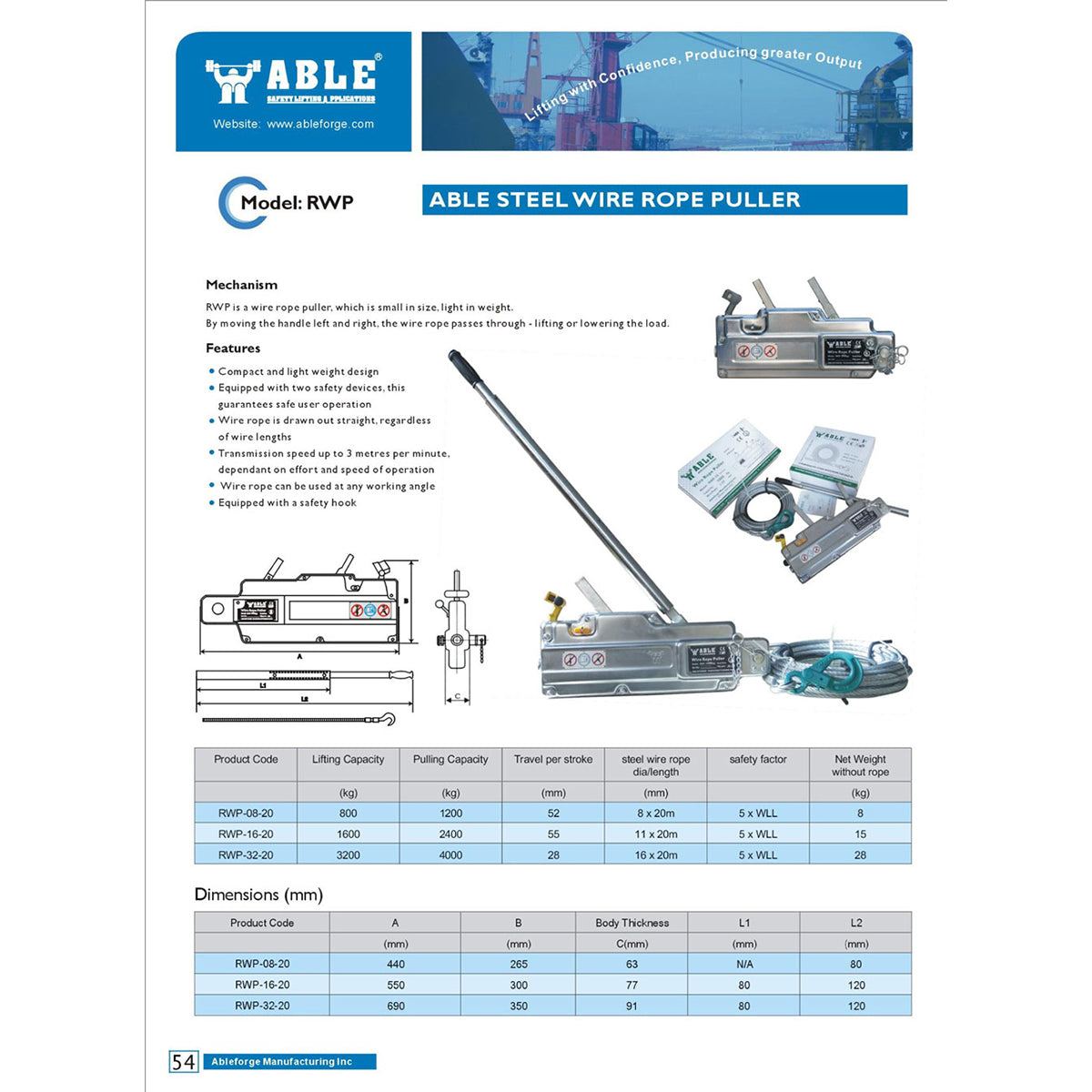

The Able RWP-16-20 Steel Wire Rope Puller is a compact, hand-operated pulling and lifting tool designed for demanding industrial, construction, and recovery applications. By moving the handle left and right, the wire rope is drawn through the body, lifting or lowering the load with ease, at any working angle.

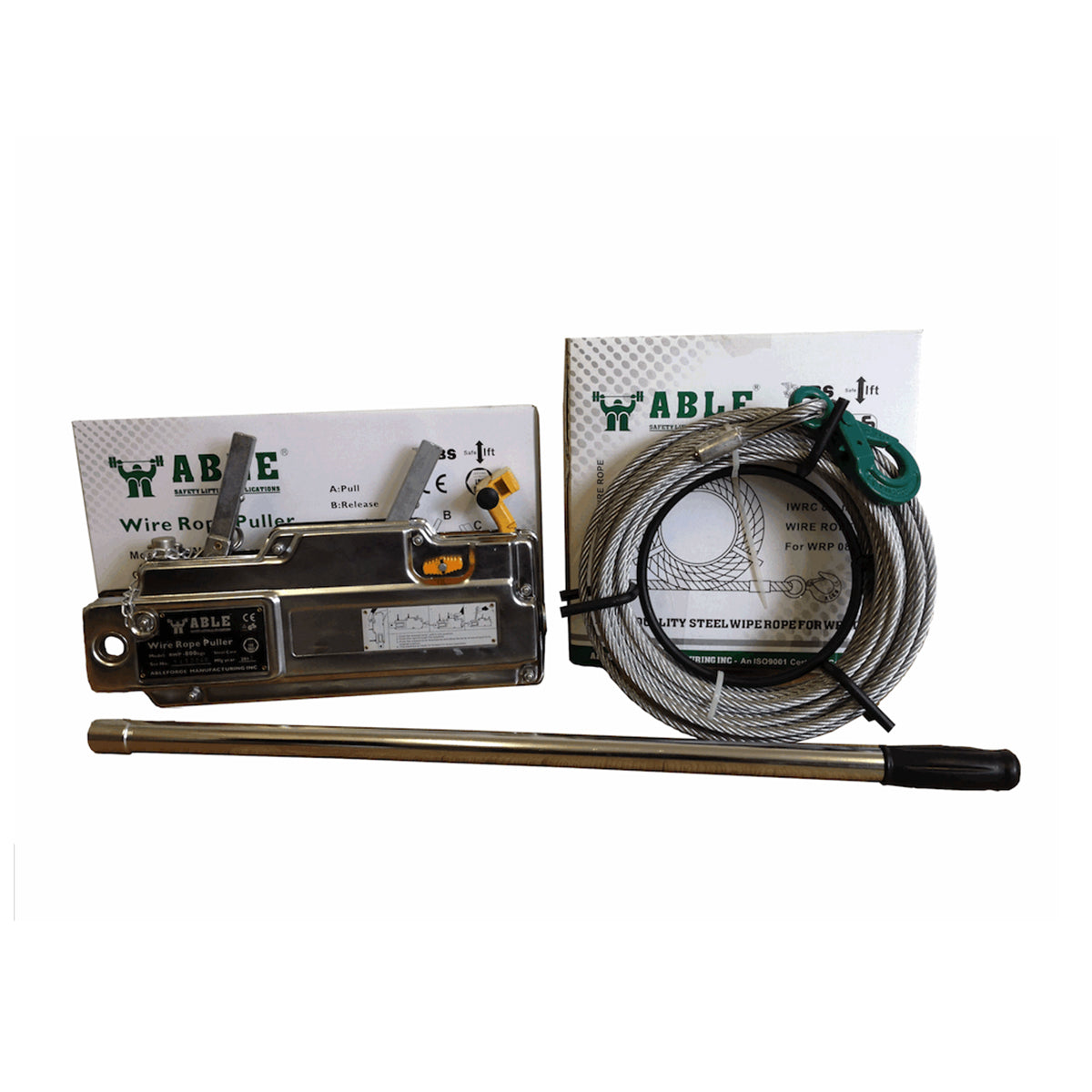

Unlike conventional winches, there is no drum to store the rope, keeping the unit small and remarkably lightweight at just 15 kg (without rope). The puller is supplied complete with a 20-metre, 11 mm diameter IWRC steel wire rope and a heavy-duty safety hook, so it is ready to work straight out of the box.
Two built-in safety devices guarantee safe operation, and the handle mechanism allows rapid rope adjustment via a quick-release lever. Transmission speed reaches up to 3 metres per minute depending on effort and operating speed.
Key Features
- Compact and lightweight design, easy to transport and store
- Equipped with two safety devices for secure, reliable operation
- Wire rope drawn out straight regardless of rope length
- Operates at any working angle for maximum versatility
- Supplied with 20 m × 11 mm IWRC steel wire rope and safety hook
- Quick-release lever for fast rope-length adjustment
- Transmission speed up to 3 metres per minute
Typical Applications
Pulling and lifting vehicles, logs, machinery, structural steel, and other heavy objects on construction sites, in workshops, and in recovery situations.
Key features
- 011,600 kg lifting capacity and 2,400 kg pulling capacity
- 02Supplied complete
- 03Operates at any working angle
- 04Two built-in safety devices and a 5 × WLL wire rope safety factor ensure dependable
- 05Transmission speed up to 3 m/min
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use a wire rope puller
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
