0.75T 5/16" Blue Pin Dee Shackle
Forged steel dee shackle with a 0.75 tonne WLL, quenched and tempered for superior strength. Screw-pin closure with CE marking, ideal for rigging, lifting and lashing applications.
- Working load limit
- 0.75 kg
- Safety factor
- 6
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

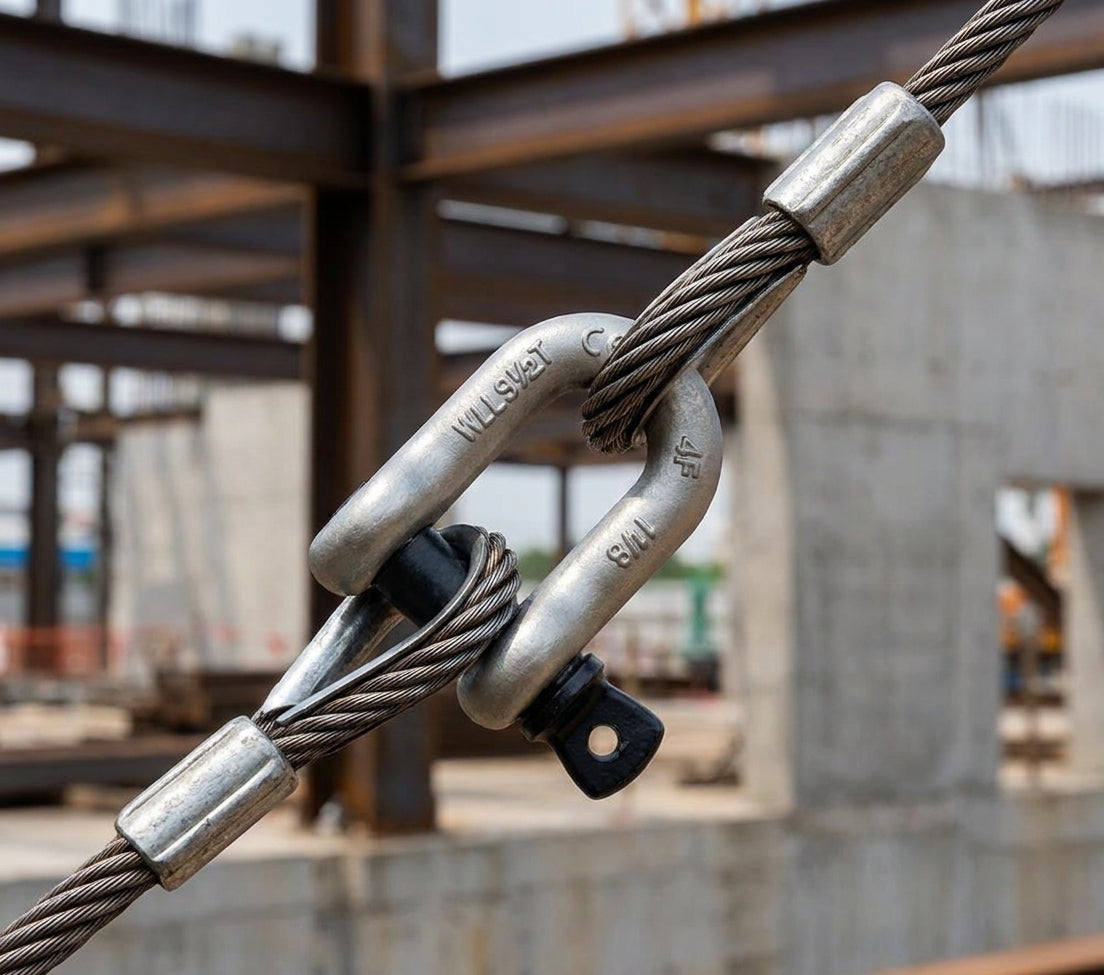

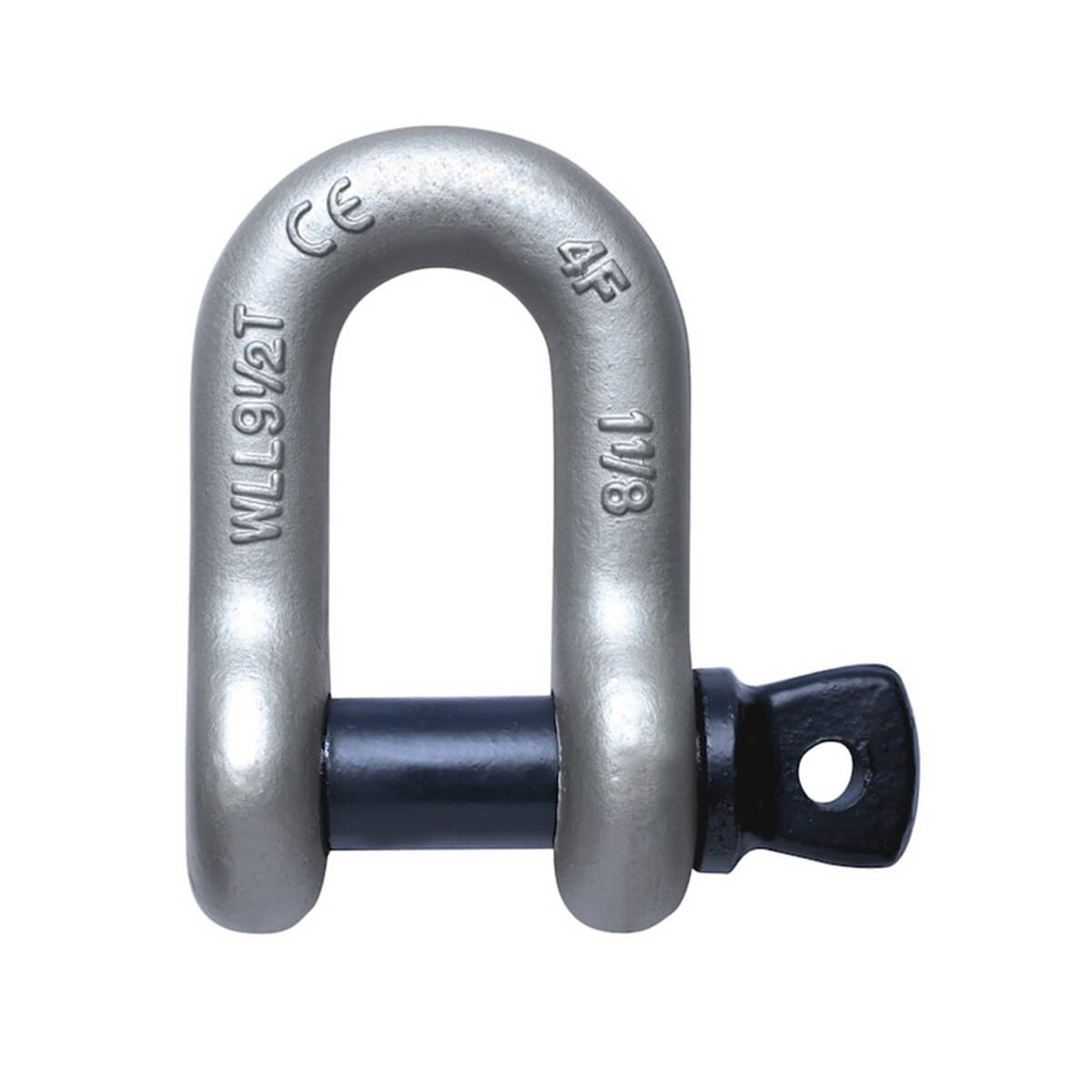

The ABLE SPD008 Forged Screw Pin Dee Shackle is a heavy-duty connecting link designed for in-line rigging, crane lifting, marine and general industrial applications. Its narrow D-shaped body channels load efficiently along a single axis, making it the preferred choice wherever straight-line pull is required.
Forged from steel and quenched and tempered for enhanced toughness, the shackle carries a Working Load Limit of 0.75 tonnes (750 kg) permanently embossed on the body alongside the CE mark and size designation, allowing fast, safe identification on site without the need for additional labels. The minimum breaking strength is 6 times the working load limit. A secure screw-pin closure with a cotter-hole retainer prevents accidental opening under load.
- Working Load Limit: 0.75 t (750 kg), permanently marked on body
- CE marked for conformity
- Forged steel, quenched and tempered for superior strength and toughness
- Screw-pin closure with cotter-hole for positive retention
- Suitable for rigging, crane, marine and general industrial lifting
Key features
- 01WLL 075 t (750 kg) permanently embossed on body
- 02Forged steel
- 03Screw-pin closure
- 04CE marked dee shackle for in-line rigging
- 05Minimum breaking strength 6× WLL per manufacturer specification
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
