Drop Forged Collared Eyebolt, M12 (0.40t WLL)

This CE-marked M12 drop forged collared eyebolt is manufactured from heat-treated carbon steel C45, making it a robust and reliable choice for lifting, rigging and load-securing applications. The integral collar ensures a firm, flush seating against the load surface, reducing the risk of bending stress on the shank.

The eyebolt is suitable for vertical lifts and for loads applied at an angle, provided the pull remains in the same plane as the eye. Please observe the following load angle reductions:

• At 45° from vertical: reduce working load to 30% of the rated vertical WLL
• At 90° from vertical: reduce working load to 25% of the rated vertical WLL

Key Features

• Material: Carbon Steel C45, heat treated for strength and durability
• CE marked, cast directly onto the body
• Self-colour finish as standard; electro-galvanised finish available on request
• Metric thread (M12) for compatibility with standard fixings
• Collared design for flush seating and improved load distribution
• Thread length: 7 mm; shank diameter: 12 mm

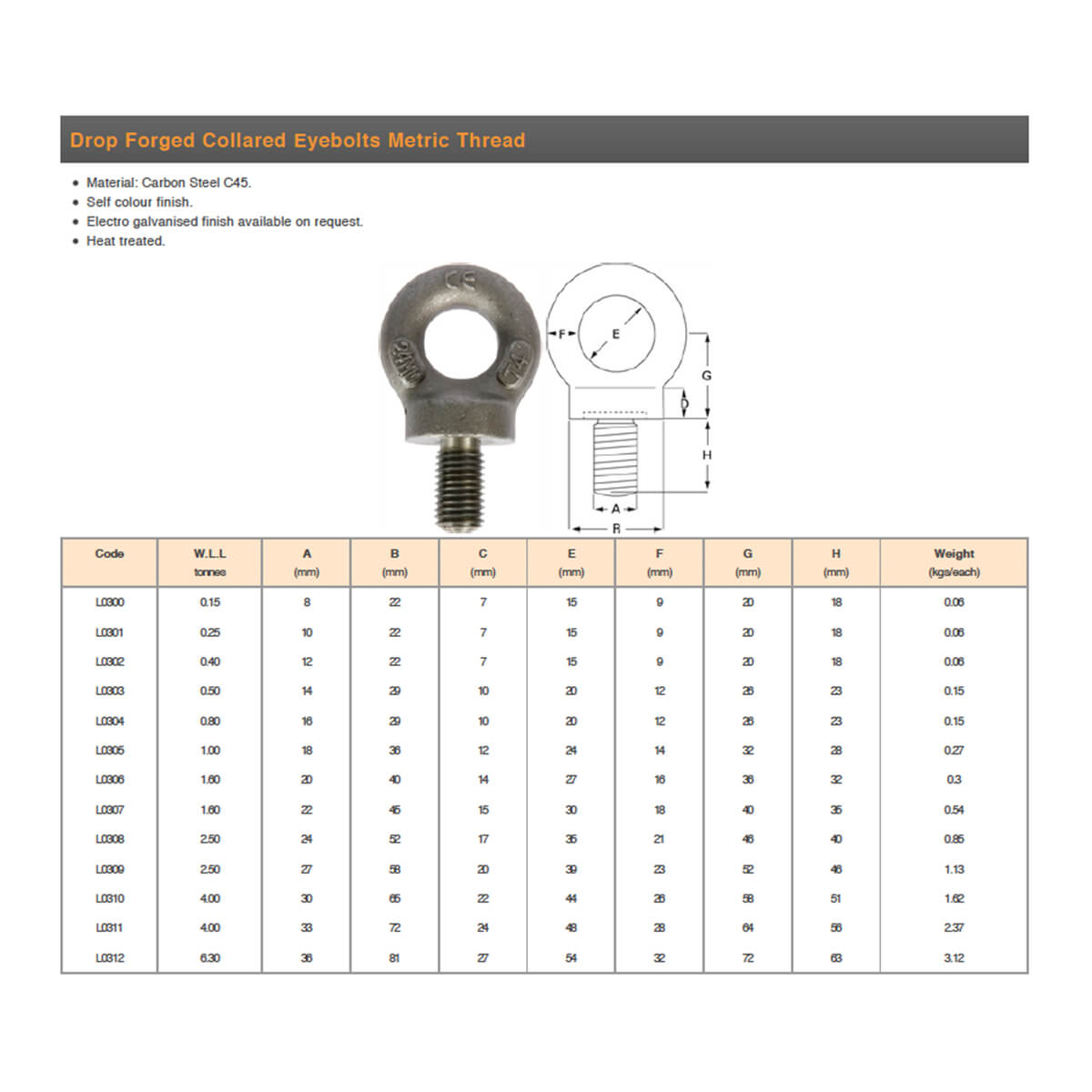

Dimensions (Code L0302): A = 12 mm | B = 22 mm | C = 7 mm | E = 15 mm | F = 9 mm | G = 20 mm | H = 18 mm | Weight = 0.06 kg

Always inspect before use. Never exceed the stated Working Load Limit. Reduce rated load in line with sling angles as detailed above.
