0.25t Drop Forged Collared Eyebolt M10 | CE Marked | Carbon Steel
A CE-marked, heat-treated carbon steel C45 drop forged collared eyebolt with M10 metric thread and a 0.25-tonne WLL, ideal for lifting and rigging applications where angled loads may be applied.
- Working load limit
- 250 kg
- Material
- Carbon Steel C45
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
Easy Winder Ratchet Strap Winder Tool £9.60£8.00
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
Drop Forged Collared Eyebolt, M10 Metric Thread (0.25t WLL)
This drop forged collared eyebolt is manufactured from heat-treated carbon steel C45 and carries a Working Load Limit (WLL) of 0.25 tonnes. CE marked and supplied in a self-colour finish, it is suitable for use in lifting and rigging operations where the pull must remain in the same plane as the eye.
The integral collar ensures full load transfer to the fixing surface, making this eyebolt the correct choice where angled lifts are required, provided the appropriate load reduction factors are observed.
Angle Load Reduction Guidance
- Load applied at 45°: reduce rated load to 30% of the vertical WLL
- Load applied at 90°: reduce rated load to 25% of the vertical WLL
- The pull must always remain in the same plane as the eye
Key Features
- Material: Carbon Steel C45, heat treated
- CE marked for compliance
- Self-colour finish as standard; electro-galvanised finish available on request
- Metric thread (M10)
- WLL: 0.25 tonnes
- Code: L0301
Key features
- 01CE-marked lifting eyebolt
- 02025 tonne working load limit
- 03M10 metric thread
- 04Heat treated for strength
- 05Self-colour finish

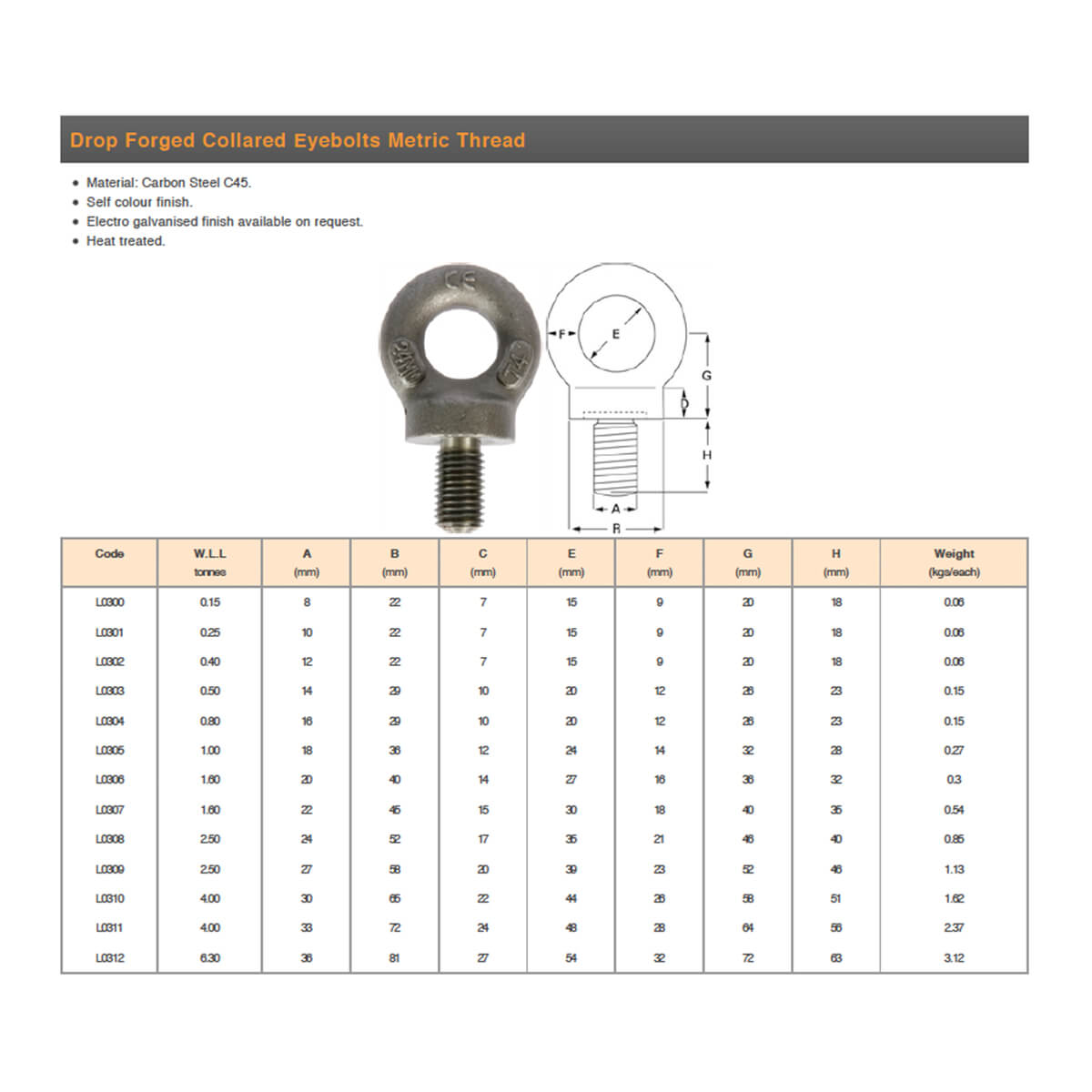

Specification
