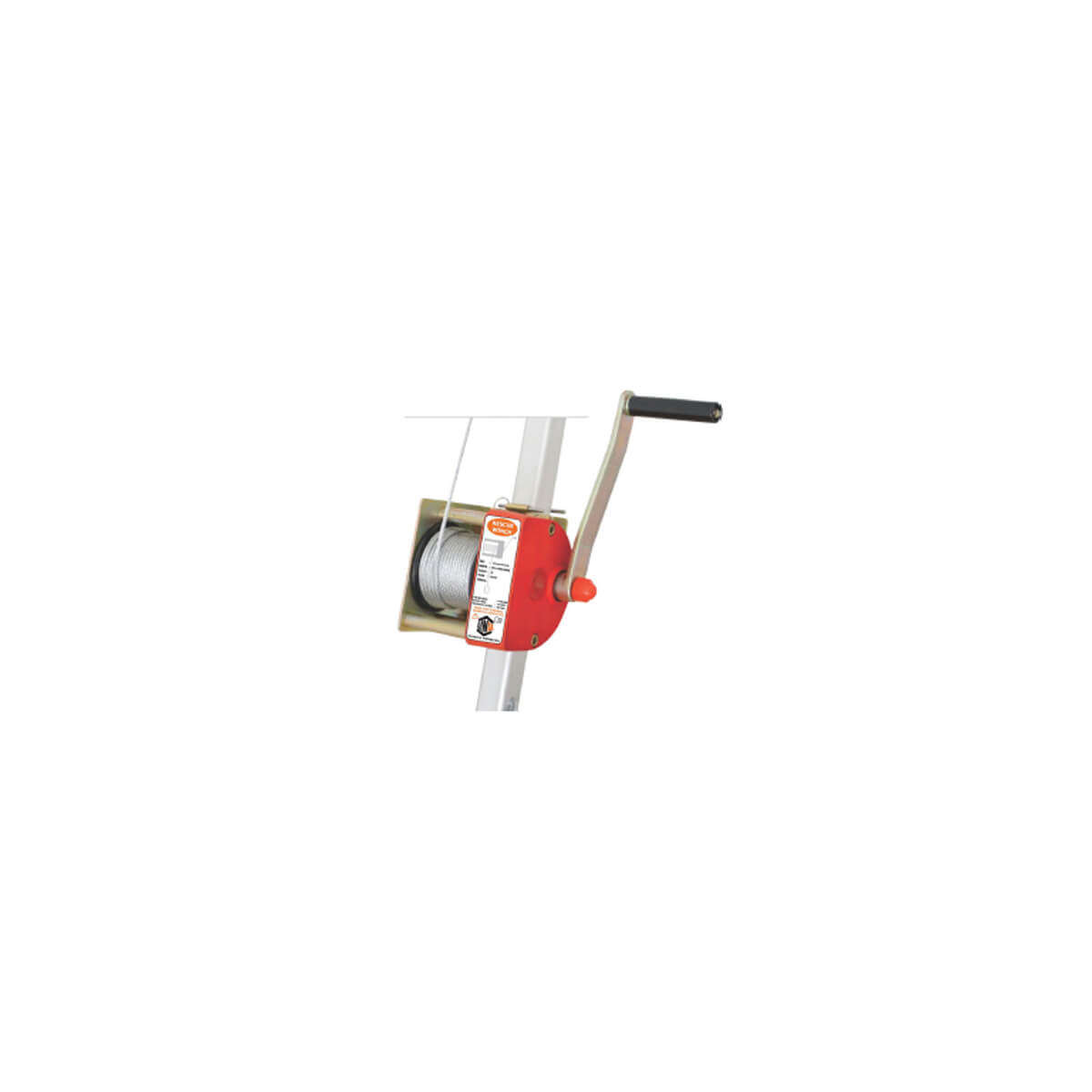

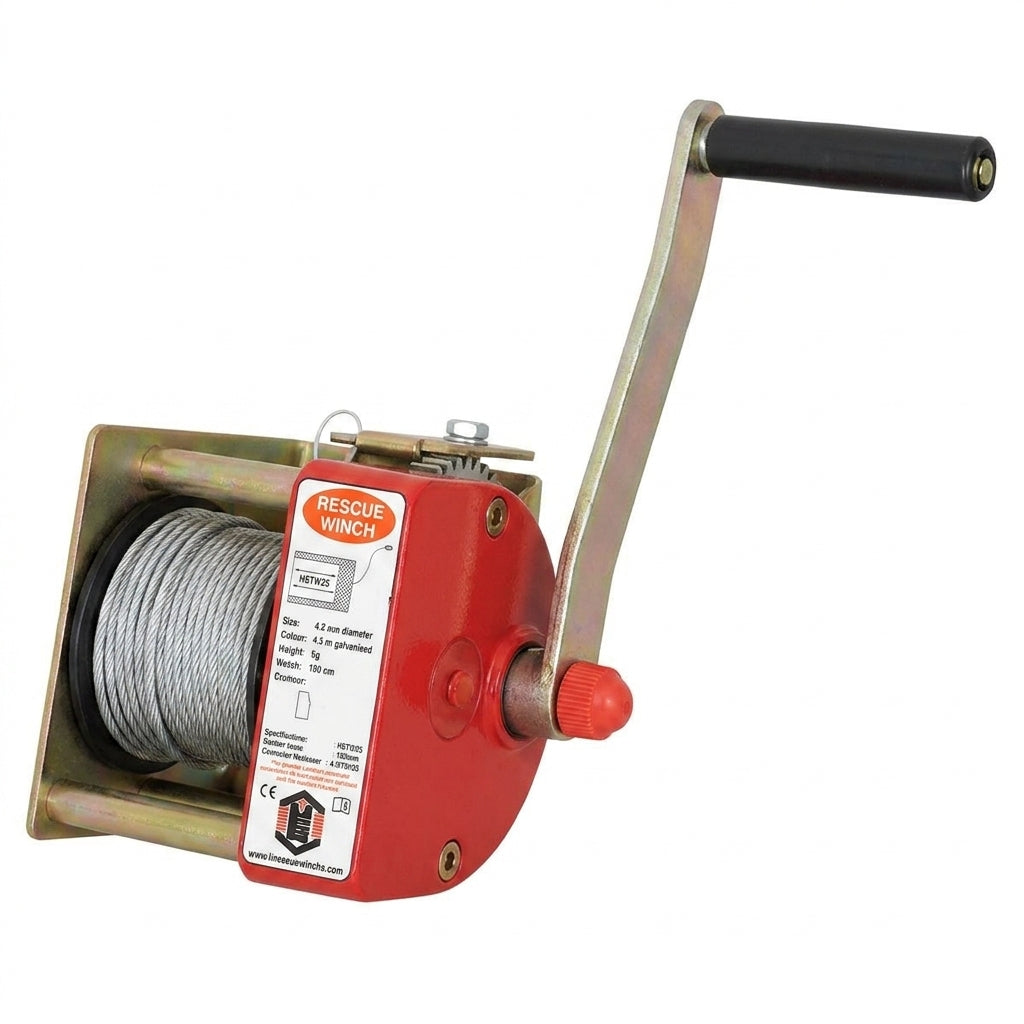

LINQ Rescue Winch 25m (HSTW25)
A purpose-built manual rescue winch with 25 m of galvanised steel cable and a 5.6:1 mechanical advantage, designed for controlled raising and lowering of personnel or materials in confined space entry and rescue operations.
- Working load limit
- 300 kg
- Material
- Galvanised steel
- Length
- 25 m
- Safety factor
- 5
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
The LINQ Rescue Winch (HSTW25) is a purpose-built manual winch designed for use with the LINQ Tripod (HSTP29), providing controlled raising and lowering of personnel or materials in confined space entry and rescue operations. Its 5.6:1 mechanical advantage significantly reduces operator effort when lifting heavy loads, making it an essential component of any confined space rescue system.

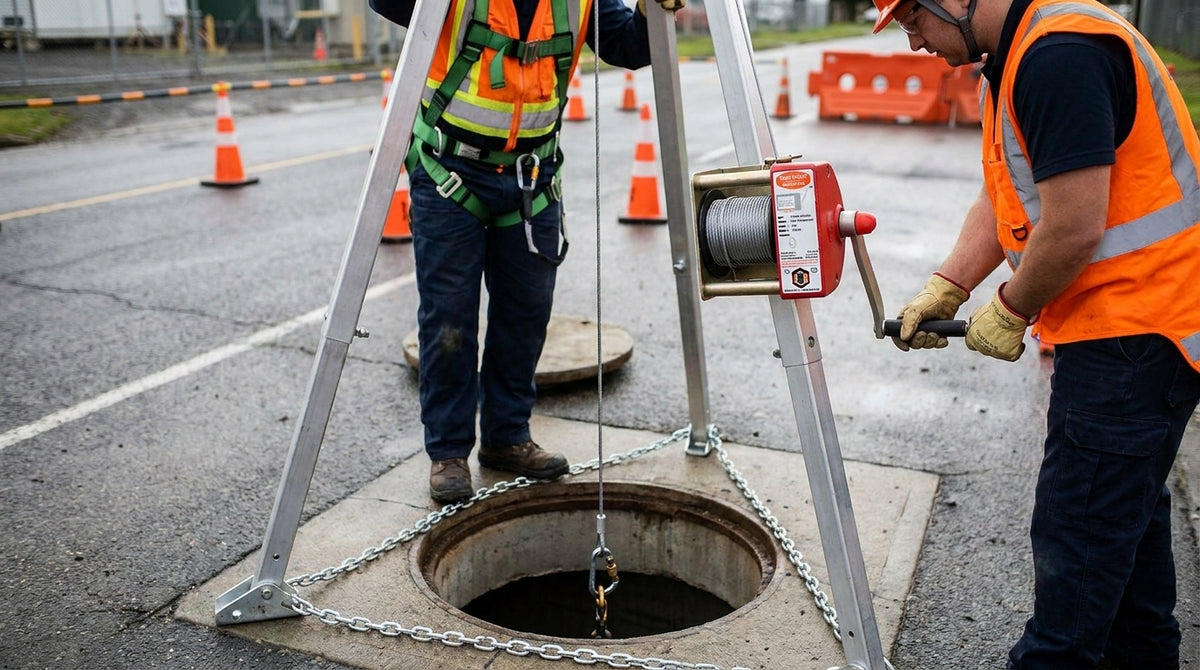

The winch attaches securely to the LINQ Tripod via a dedicated mounting plate, ensuring a robust and reliable connection throughout the operation. The galvanised steel cable and corrosion-resistant steel body are engineered to withstand demanding site conditions, having passed the corrosion test in accordance with ISO 9227:1990 (24 hours). Performance exceeds the requirements of EN 1496:2006.
- 5.6:1 mechanical advantage for reduced operator effort
- 25 m maximum lifting length with 4.5 mm diameter galvanised steel cable
- Corrosion-resistant steel body, corrosion tested to ISO 9227:1990 (24 hours)
- Dedicated mounting plate for secure attachment to LINQ Tripod HSTP29
- Suitable for raising or lowering personnel or materials in confined space operations
- Exceeds EN 1496:2006 requirements
- Static strength: 13.5 kN for 3 minutes
- 203 kg test mass raised without failure after dry and wet conditioning
- Vertical distance of fall on release of device handle: 0 m
- Rescue load: 300 kg combined weight of rescuer and rescued person (5:1 safety factor applied)
Key features
- 0156:1 mechanical advantage
- 0225 m galvanised steel cable
- 03Exceeds EN 1496:2006
- 04Secure tripod mounting
- 05300 kg rescue load rating
