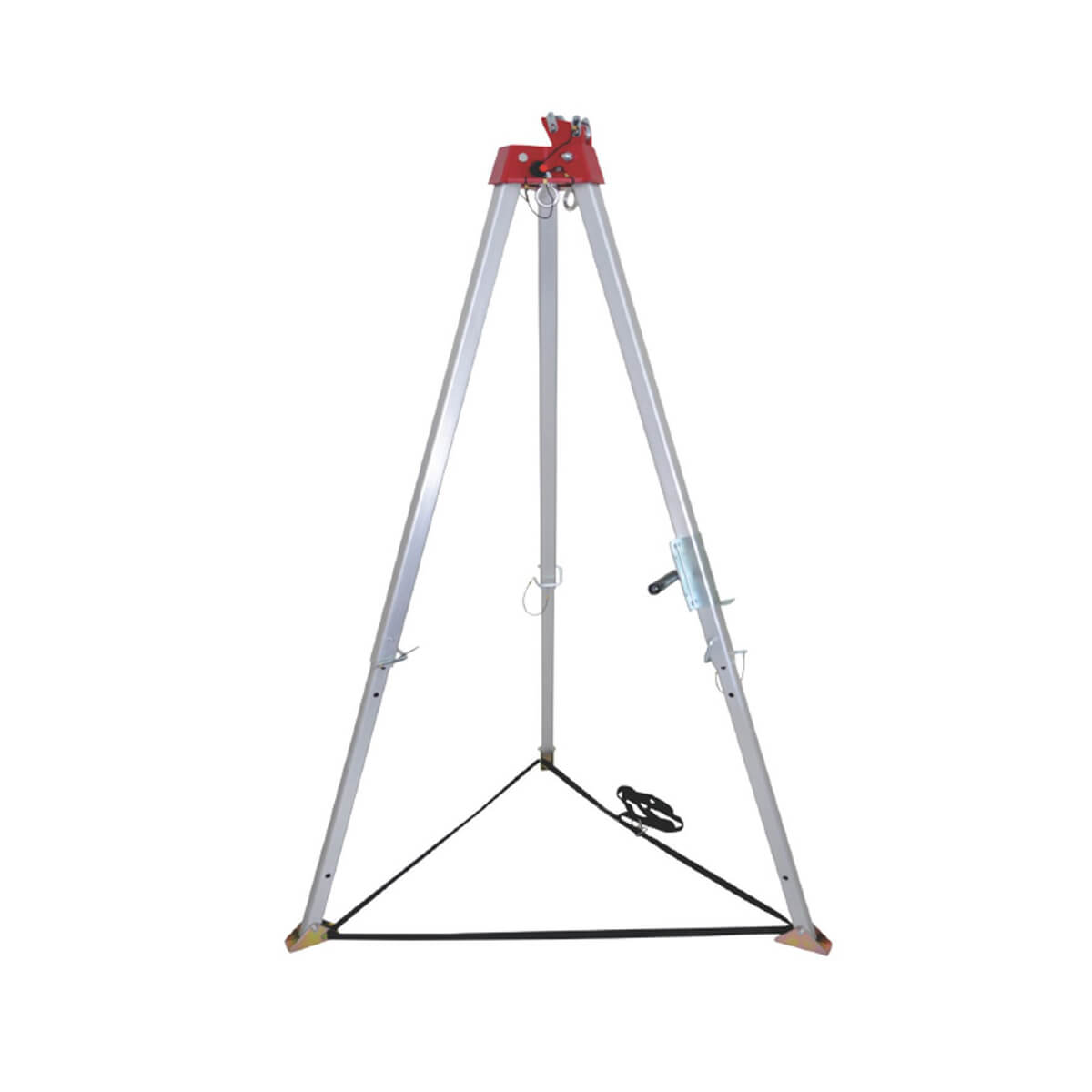

LINQ Tripod 2.9m With Bag

LINQ Confined Space Tripod 2.9m

The LINQ Confined Space Tripod is a lightweight, portable rescue and access tripod designed for confined space entry and retrieval operations. Constructed from aluminium, it can be transported easily between sites and erected by a single operator, making it an efficient choice for rescue teams, utilities, and industrial safety professionals.

Key Features

• Telescopic legs adjust between 1.9 m and 2.9 m, secured with locking pins attached by cable for quick, safe setup
• Dual anchorage points in the tripod head allow primary and backup systems to be rigged simultaneously
• Twin mounted pulleys guide the winch wire rope through the main leg for smooth, prolonged operation
• Steel-supported feet with rubber soles maximise grip on slippery surfaces and improve overall stability
• Safety chain on each leg ensures secure foot placement once positioned
• Integrated mounting bracket accepts the LINQ rescue winch
• Corrosion-resistant construction tested to ISO 9227:2012 (24 + 24 hours neutral salt spray with no rust damage)

At minimum height the distance between leg feet is 1.2 m; at maximum height this increases to 1.8 m, giving a stable footprint across varying work areas. The unit weighs 16.8 kg (±10 g) and is supplied with a carry bag for transport and storage.

Certified to EN795:2012. Static strength: both eye anchorages tested at 12 kN for 3 minutes.
