800kg Wire Rope Puller x 30m

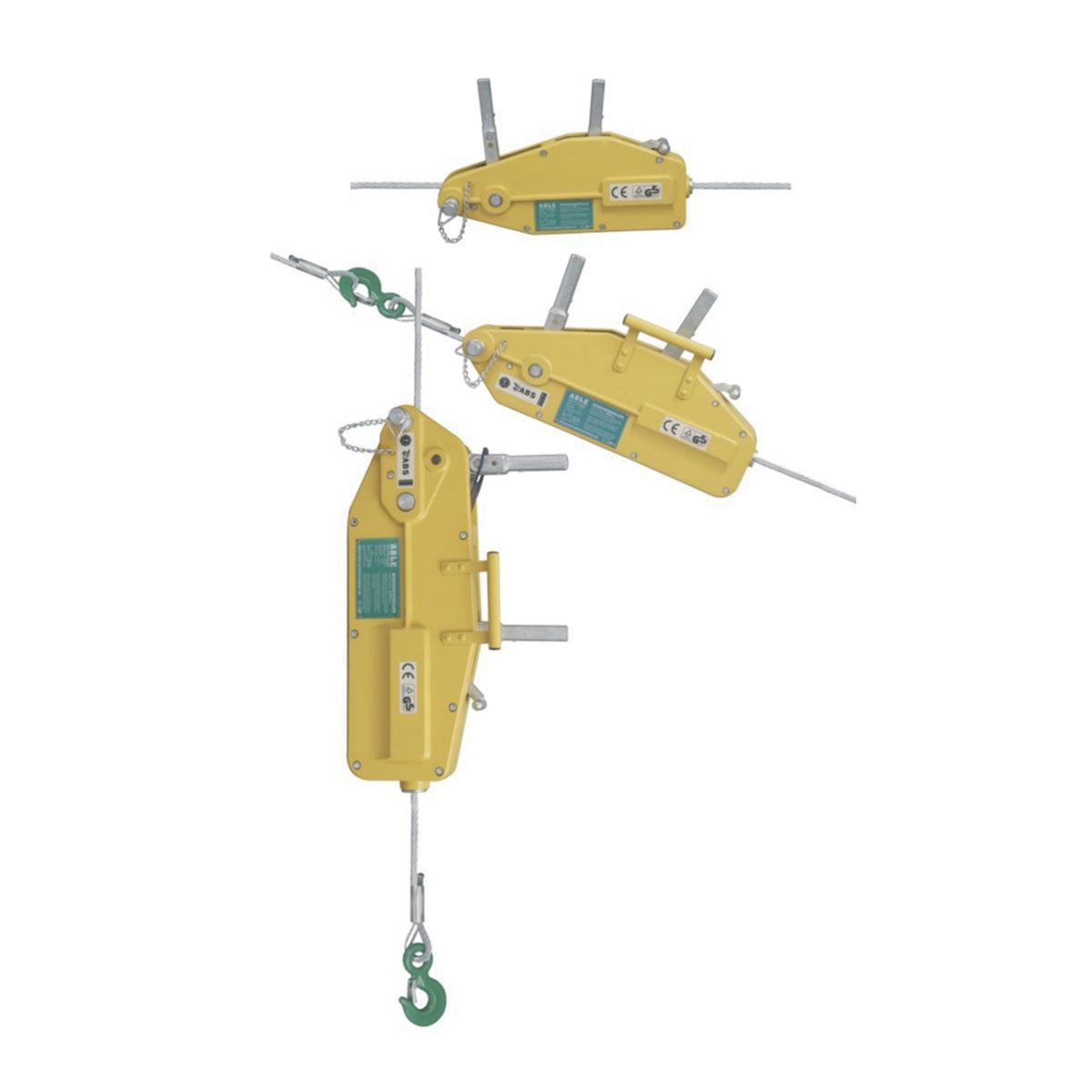

The Ableforge WRP08 wire rope puller is a compact, hand-operated pulling and lifting device designed for use across construction, railway, shipbuilding and transport applications. With an 800 kg lifting capacity and a 1,300 kg pulling capacity, it handles a wide range of demanding tasks without the need for a bulky wire drum.

The rope passes through the body via two internal chucks, one forward lever pulls the wire rope through, while the backward lever pushes it back, meaning the wire is always drawn out straight regardless of rope length. At a transmission speed of 3 metres per minute, it is one of the fastest hand-driven hauling devices available.

Built from high-strength cast aluminium alloy, the body is light yet durable, with a large flat-bottom surface for stability in both horizontal and vertical working positions. The rope clamp system allows quick, easy installation and removal of the wire rope without tools.

• Compact and lightweight, high-strength aluminium alloy body; no wire drum required
• 800 kg lifting capacity / 1,300 kg pulling capacity, tested to 1,500 kg; overall structure breaking strength 4× WLL
• Works at any angle, wire rope is drawn out straight regardless of working position or rope length
• Fast transmission speed, 3 metres per minute, among the fastest of any hand-driven hauling device
• Built-in safety, two safety devices, built-in shearing pin overload protection, safety hook, and spare shear pins in the carrying handle

Typical applications: vehicle recovery, log pulling, machinery positioning, civil construction (concrete pipe laying, steel pulling, pile pulling), railway maintenance, shipbuilding manoeuvring, and heavy transport loading/unloading.

Supplied complete with 30 m of galvanised steel wire rope (8.3 mm diameter, IWRC 8.3) and a removable lever handle.
