800kg Wire Rope Puller x 20m
A compact, lightweight hand-operated wire rope puller with an 800 kg lifting capacity and 20 m galvanised steel wire rope. Ideal for lifting, pulling and positioning heavy loads at any working angle.
- Working load limit
- 800 kg
- Pulling capacity
- 1,300 kg
- Rope diameter
- 8.3 mm
- Fittings
- Sling hook
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
Easy Winder Ratchet Strap Winder Tool £9.60£8.00
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
The Able WRP08 wire rope puller is a robust, hand-operated pulling and lifting device designed for a wide range of industrial, construction, railway, shipbuilding and transport applications. Its high-strength cast aluminium alloy body keeps it compact and light without compromising durability, making it easy to deploy wherever it is needed.
Unlike conventional hoists, the WRP08 requires no wire-rope drum, the rope passes straight through the body via two internal chucks, keeping the unit small and manoeuvrable. Moving the handle left and right drives the rope forward or back at up to 3 metres per minute, the fastest transmission speed of any comparable hand-driven hauling device.
Supplied complete with 20 m of galvanised steel wire rope (8.3 mm diameter, IWRC 8.3 construction) and a safety hook, it is ready to use straight from the box. Two independent safety devices and a built-in shear pin (functioning at approximately 150 % overload) protect both operator and load, while the wire rope safety factor of 5 × WLL and overall structure breaking strength of 4 × WLL provide exceptional peace of mind.

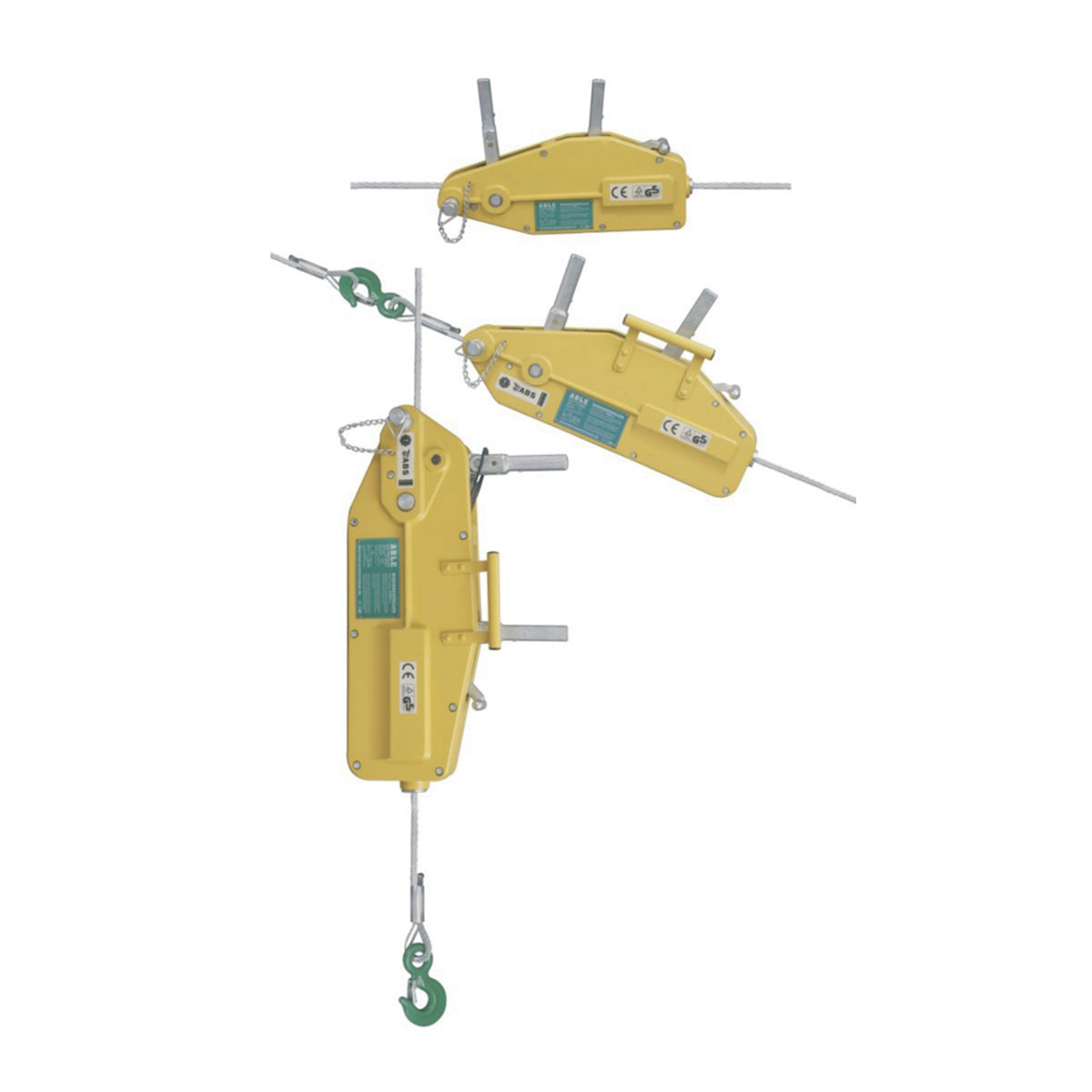

- Compact, lightweight aluminium alloy body, smooth contour design with a large flat base for stability in horizontal and vertical working positions
- 800 kg lifting capacity / 1,300 kg pulling capacity, tested to 1,600 kg; wire rope breaking strength 5,430 kg
- No drum required, wire rope is drawn out straight, allowing use at any working angle regardless of rope length
- 3 m/min transmission speed, forward and reverse lever action; quick-release lever for fast rope-length adjustment
- Dual safety devices & safety hook, built-in shear pin overload protection; safety hook prevents rope disengagement during operation
- CE & GS marked, every rope operationally tested to 150 % of rated capacity with an individual test certificate
- Versatile applications, construction, rail, shipbuilding, vehicle recovery, machinery positioning and heavy-package handling
Supplied with: 20 m galvanised steel wire rope, removable lever handle, safety hook, and two spare shear pins located in the carrying handle.
Key features
- 01800 kg lifting capacity (1,300 kg pulling capacity)
- 02No wire-rope drum needed
- 03Fast 3 m/min transmission speed
- 04Dual safety devices plus built-in shear pin overload protection (activates at approx
- 05Supplied complete
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
