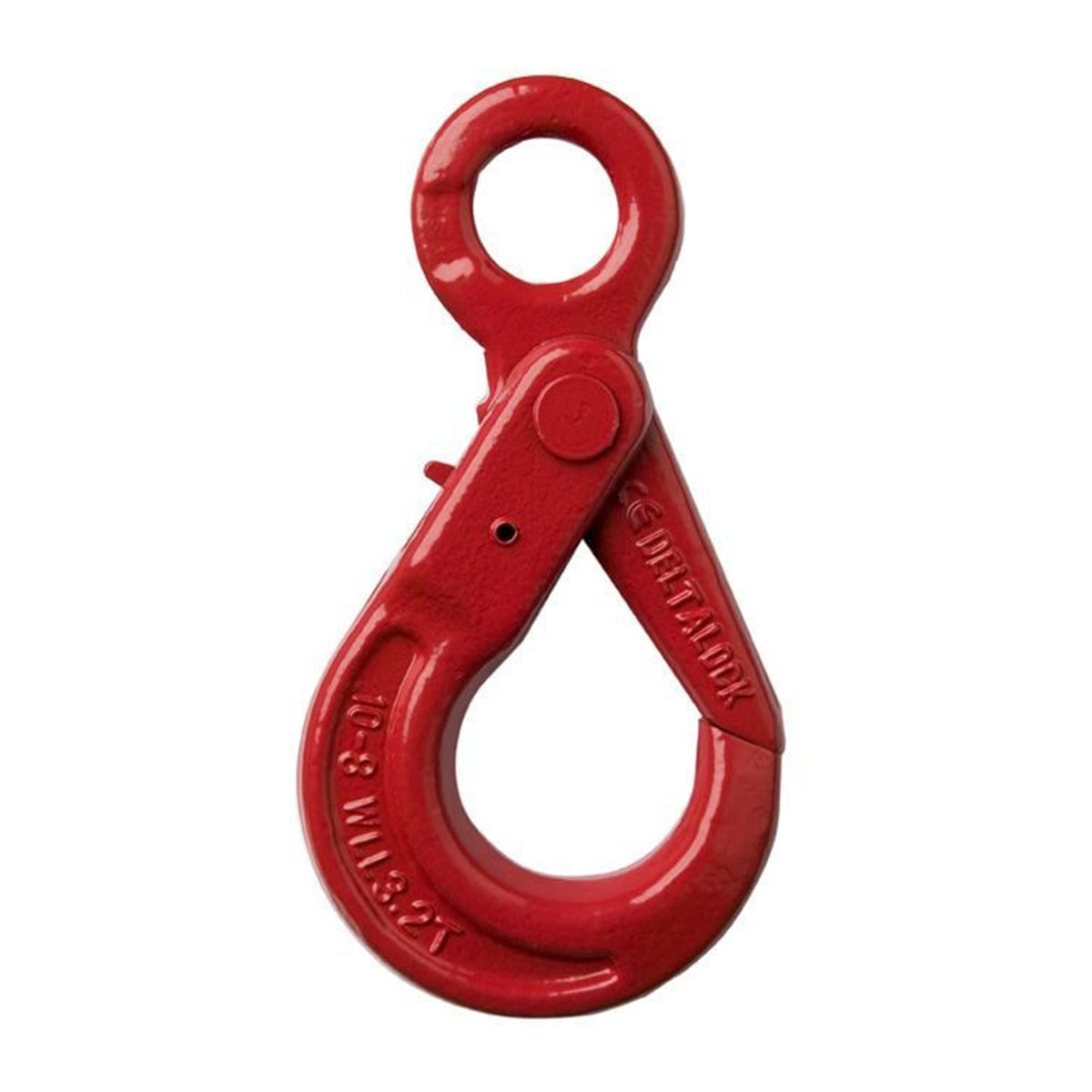

7/8mm Grade 80 Alloy Steel Eye Self-Locking Safety Hook
A Grade 80 alloy steel eye self-locking safety hook designed for use with 7/8mm lifting chain. The automatic lock latch engages under load and cannot disengage accidentally, ensuring safe and reliable lifting.
- Working load limit
- 2,120 kg
- Min. breaking load
- 8,480 kg
- Grade
- Grade 80
- Fittings
- Self-locking hook
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

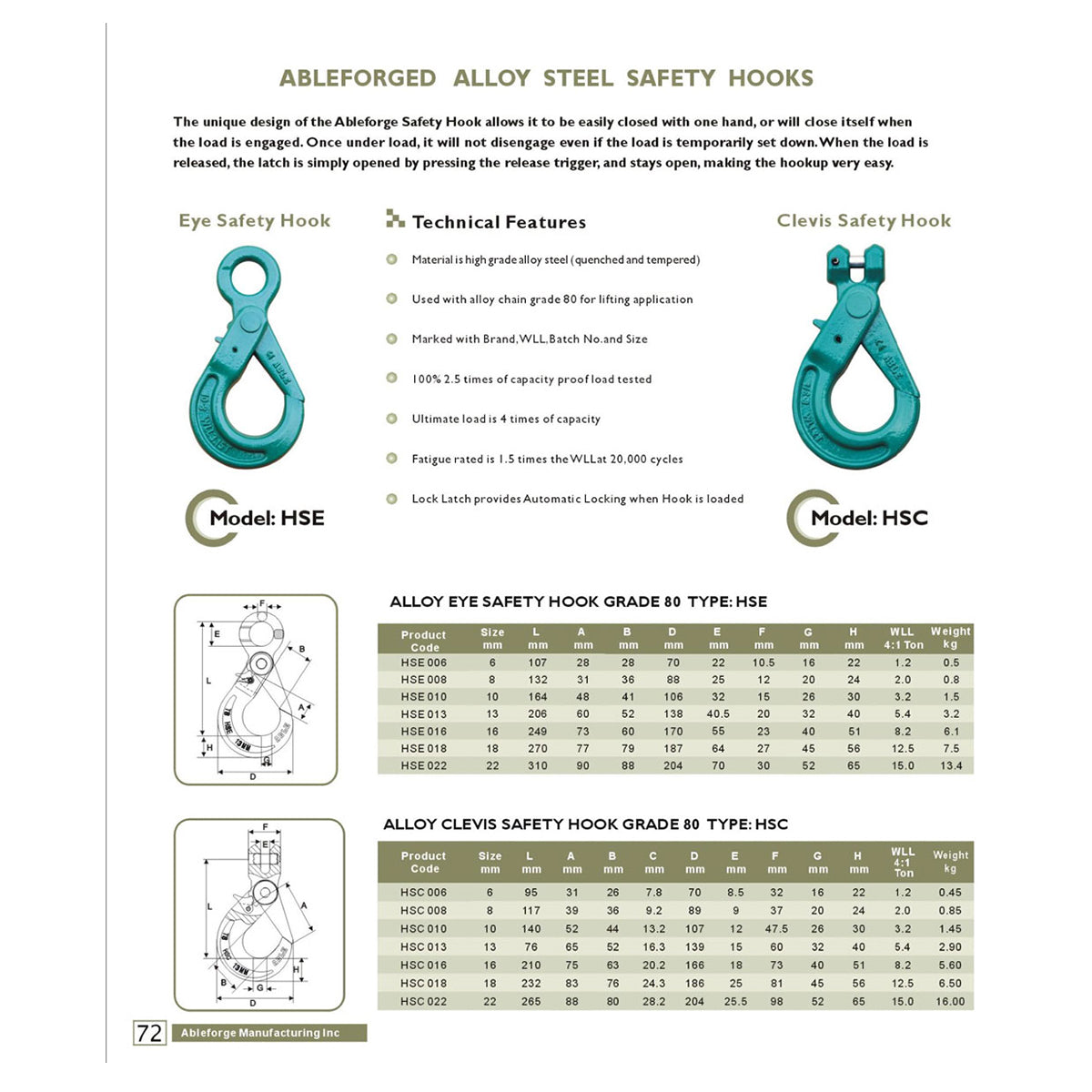

The Ableforge Eye Self-Locking Safety Hook (Model HSE) is manufactured from high-grade alloy steel (quenched and tempered) and is designed for use with Grade 80 alloy chain in professional lifting applications. Its unique lock latch provides automatic locking whenever the hook is under load, it will not disengage even if the load is temporarily set down, making it an exceptionally safe choice for rigging and lifting operations.
When the load is released, the latch is opened simply by pressing the release trigger, and stays open to make re-hooking quick and easy. The hook can also be closed with one hand, improving efficiency on site.
- Made from high-grade alloy steel, Grade 80 (quenched and tempered)
- For use with Grade 80 alloy chain for lifting applications
- Marked with brand, WLL, batch number and size for full traceability
- Proof load tested to 2.5 times the Working Load Limit (WLL)
- Ultimate load is 4 times the rated capacity
- Fatigue rated to 1.5 times the WLL at 20,000 cycles
- Lock latch provides automatic locking when hook is loaded
Key features
- 01Automatic safety locking
- 02Grade 80 alloy steel
- 03Proof load tested
- 04Easy one-hand operation
- 05Fully traceable
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use lifting chains
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
