500kg Chain Block in BLACK 6m Drop
A 1-tonne-rated manual chain block hoist with 6 m drop, Grade 80 load chain, double-pawl fail-safe brake, and forged safety-latched hooks, ideal for workshop, factory and overhead lifting.
- Working load limit
- 500 kg
- Chain size
- 6 mm
- Grade
- Grade 80
- Fittings
- Sling hook
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

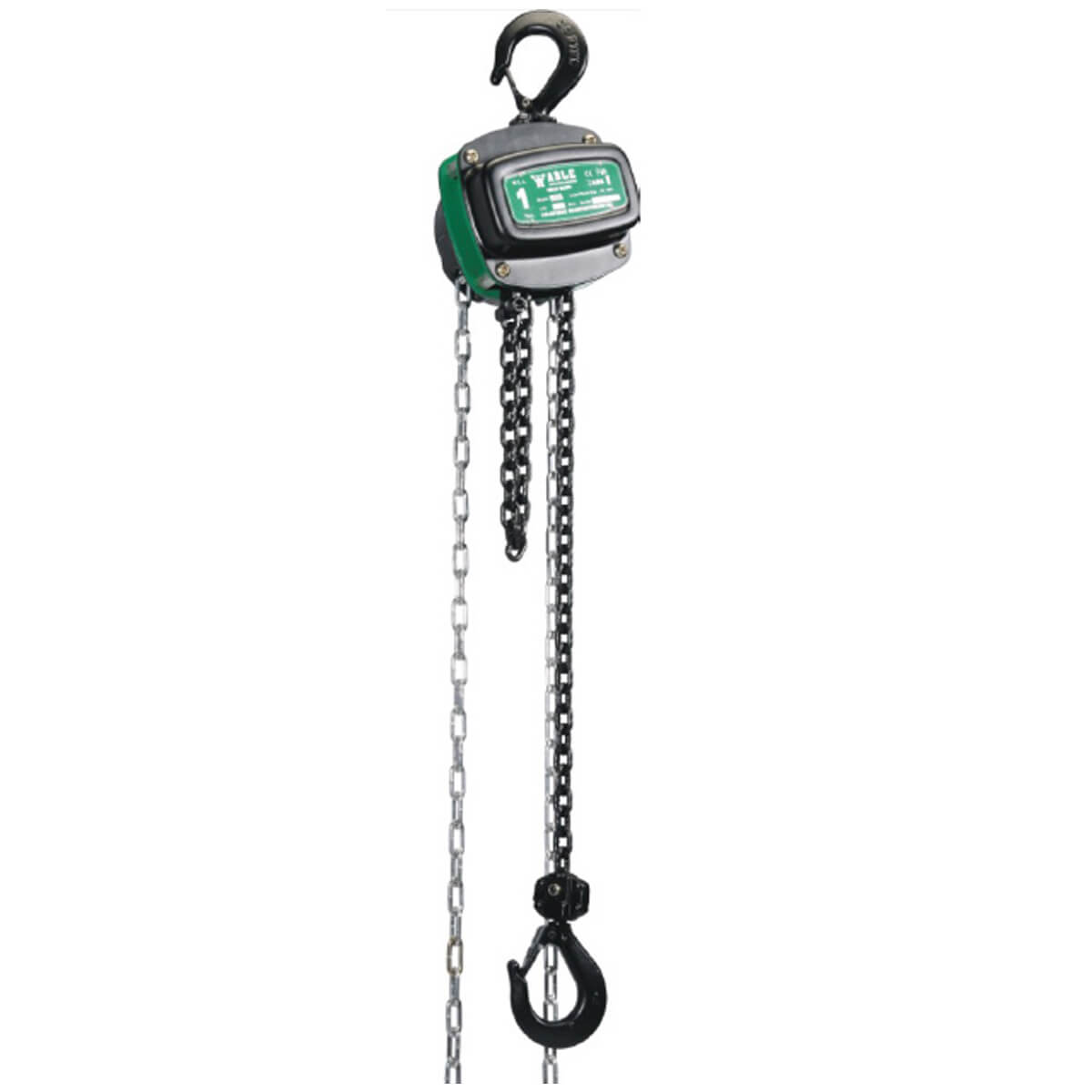

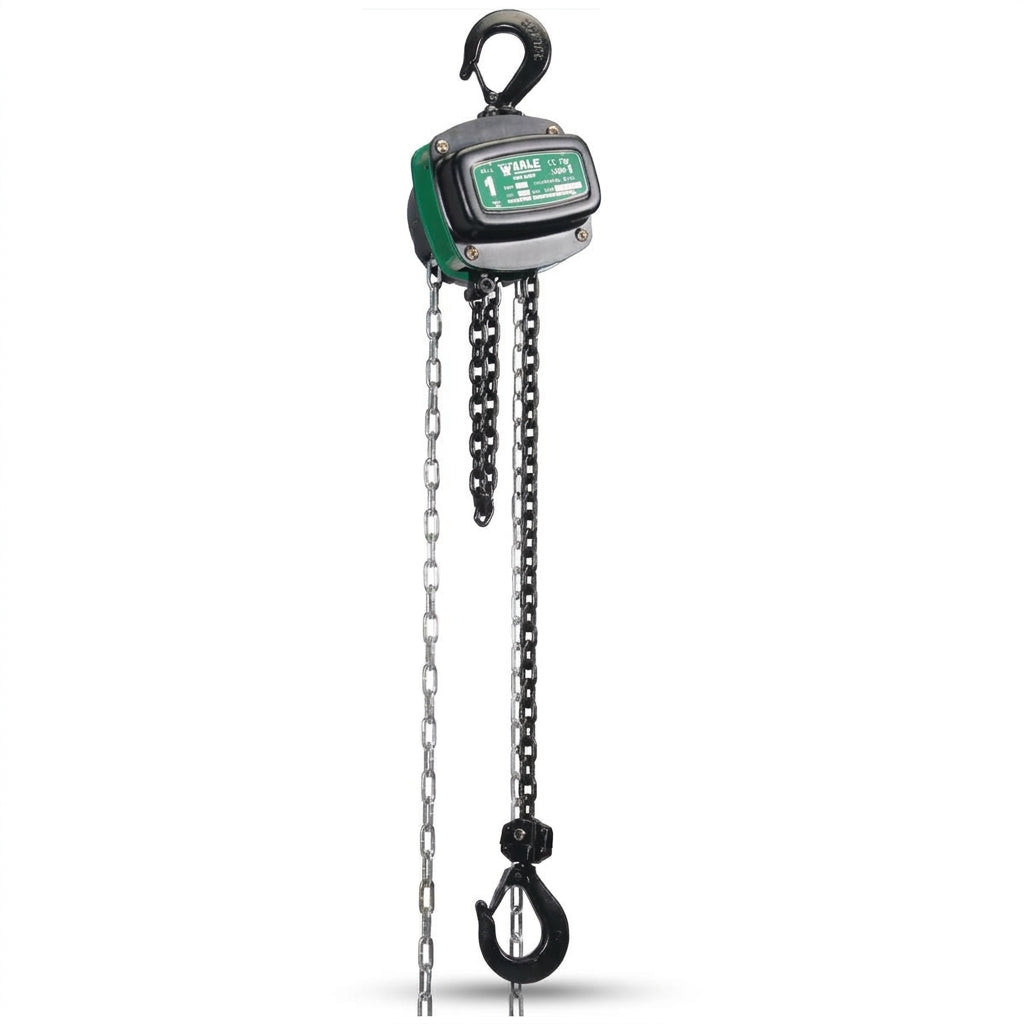

ABLE 500 kg Manual Chain Block Hoist, 6 m Drop
This manual chain block from ABLE delivers reliable, controlled lifting of loads up to 500 kg (0.5 tonne) with a standard 6 m lift. Operated entirely by hand, the internal gear system means only minimal effort is required, just 22 kg of pull, making it an efficient and fatigue-reducing solution for workshops, factories, power plants, laboratories and construction sites.
Safety is built in at every level. A double-pawl brake mechanism ensures the load stays locked even if one pawl becomes unserviceable. Forged and heat-treated load hooks feature a stretch indicator for in-service monitoring and a forged safety latch for security. The Grade 80 load chain has a minimum breaking load of 400% of the WLL and elongation greater than 10%, giving outstanding reserve strength.
Every unit is individually proof-load tested to 1.5× WLL and carries its own serial number for full batch traceability. The enclosed housing protects internal components during outdoor use, and the load brake requires no lubrication, keeping maintenance to a minimum.
- Capacity: 0.5 tonne (500 kg)
- Standard lift: 3.0 m (chain fall: 1)
- Test load: 0.75 tonne
- Pulling effort: 22 kg
- Load chain diameter: 6 mm
- Superior Grade 80 load chain, MBL 400% of WLL, elongation >10%
- Double-pawl fail-safe brake system

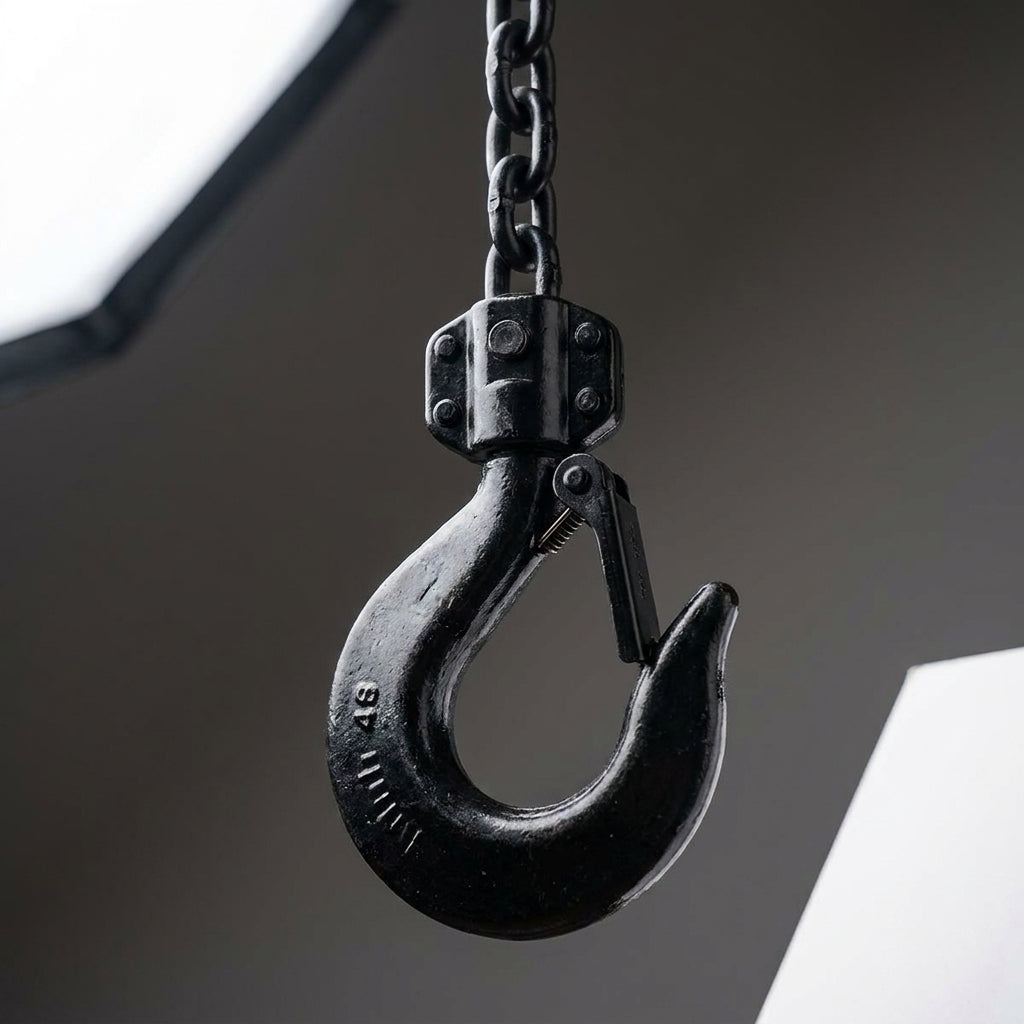

- Forged and heat-treated hooks with stretch indicator and safety latch
- Individually proof-load tested to 1.5× WLL with unique serial numbers
- Enclosed housing for outdoor use; no-lubrication brake
Key features
- 01Safe & secure lifting
- 02Grade 80 load chain
- 03Low effort operation
- 04Individually tested & traceable
- 05Weatherproof & low maintenance
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use chain blocks
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
