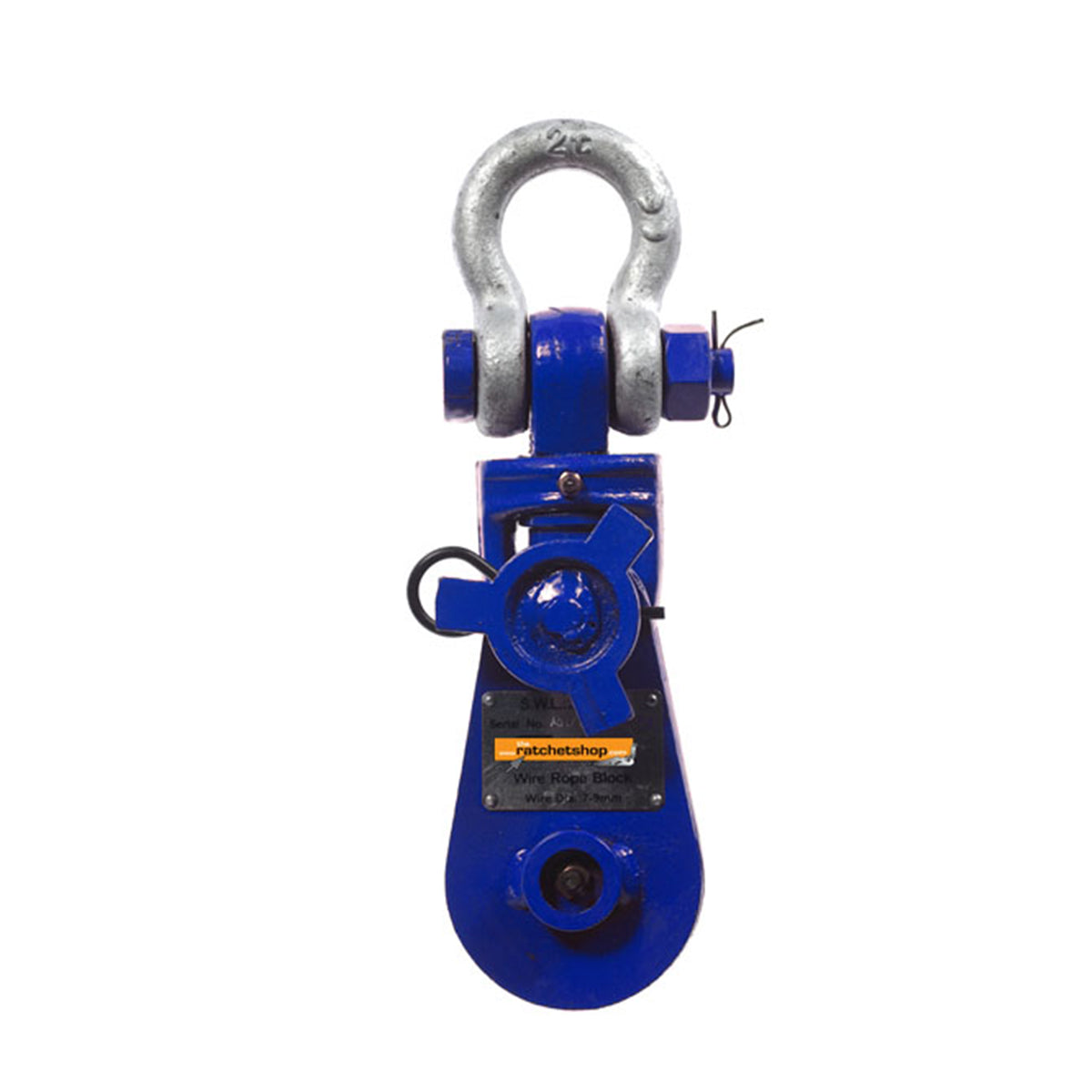

4000kg Heavy Duty Shackle Head Snatch Block
A heavy-duty 4000kg WLL shackle head snatch block fitted with a roller bearing sheave and opening gate, ideal for lifting, pulling, towing and rope redirection in demanding industrial applications.
- Working load limit
- 4,000 kg
- Material
- Cast alloy steel with flame-hardened groove
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This heavy-duty shackle head snatch block is rated to a 4000 kg working load limit, making it a reliable choice for lifting, pulling, towing and wire rope redirection across construction, marine, recovery and factory environments.
The block features a roller bearing sheave machined from high-quality alloy steel, ensuring smooth, efficient operation even under high-speed or sustained load. An opening gate allows wire rope to be inserted quickly without the need to thread the rope through the block, saving time on site.
- Plates manufactured from structural quality carbon steel to ASTM-A36/A572
- Sheave cast from alloy steel with flame-hardened groove for extended service life
- Shackle constructed from heat-treated alloy steel with matching heat-treated and tempered alloy steel pin
- Opening feature permits rapid insertion and removal of wire rope by releasing a single bolt
- Fitted with roller bearing sheave for smooth performance in high-speed applications
Supplied with a swivel shackle head attachment for secure overhead anchorage. Each block carries an individual serial number plate for traceability.
Key features
- 014000 kg WLL shackle head snatch block
- 02Roller bearing sheave ensures smooth
- 03Opening gate design
- 04Alloy steel shackle and heat-treated pin
- 05Structural carbon steel side plates and flame-hardened alloy steel sheave groove deliver long-lasting durability under demanding loads
