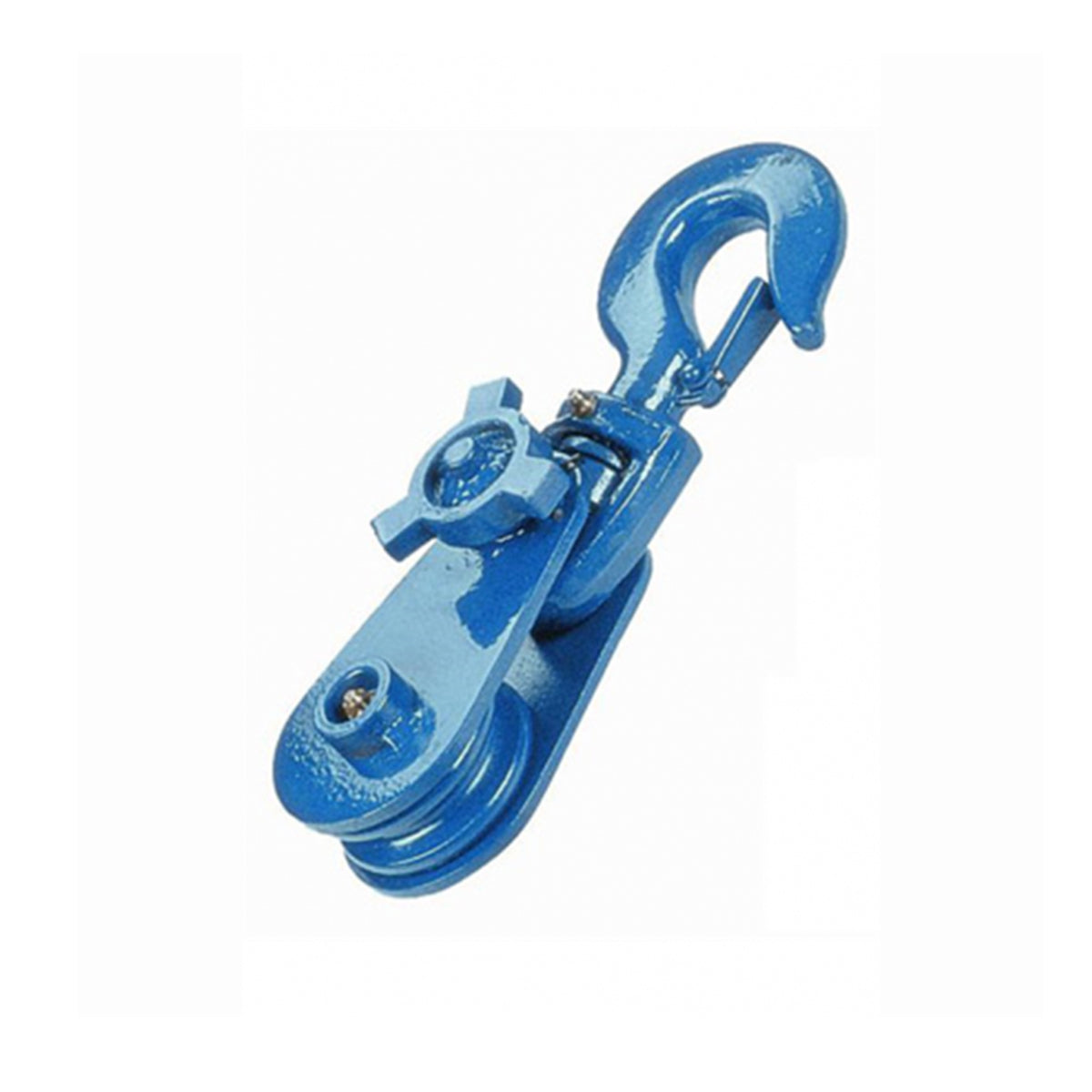

4000kg Heavy Duty Hook Head Snatch Block
A heavy-duty steel snatch block with a safety hook head, rated at 4,000 kg capacity. Designed for lifting, pulling and redirecting wire or fibre rope in construction, industrial and agricultural applications.
- Working load limit
- 4,000 kg
- Webbing width
- 120 mm
- Fittings
- Sling hook
- Material
- Drop-forged cast steel with flame-hardened groove
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This heavy-duty steel snatch block is engineered for demanding lifting, pulling and rope-redirecting tasks across construction, industrial, factory and agricultural environments. Fitted with a locking safety hook head (LH Type), it attaches securely to an anchor point and allows wire rope or fibre rope to be fed through the drop-forged sheave, redirecting the pulling force for maximum mechanical advantage.
Built to a safety factor of 4 times the working load limit, the block delivers a rated capacity of 4 tonnes (4,000 kg), making it suitable for heavy rigging and recovery work. The structural carbon steel side plates, flame-hardened cast steel sheave and alloy steel components combine to provide exceptional strength and durability in service.
The block's opening feature allows rope to be inserted into the sheave quickly with the removal of a single bolt, no need to thread the rope from the end. A galvanised finish option is also available for corrosive or outdoor environments.
- Rated working load capacity: 4,000 kg (4 t)
- Safety factor: 4 times the working load limit
- Hook head (LH Type) with safety latch for secure attachment
- Drop-forged sheave with flame-hardened groove for extended wear life
- Plates manufactured from structural carbon steel to ASTM-A36/A572
- Compatible with steel wire rope and fibre rope
- Single-bolt opening for quick and easy rope insertion
Key features
- 014,000 kg (4 t) rated capacity
- 02Safety hook head (LH Type)
- 03Drop-forged
- 04Single-bolt opening design
- 05Compatible with both steel wire rope (10-12 mm) and fibre rope
Specification
