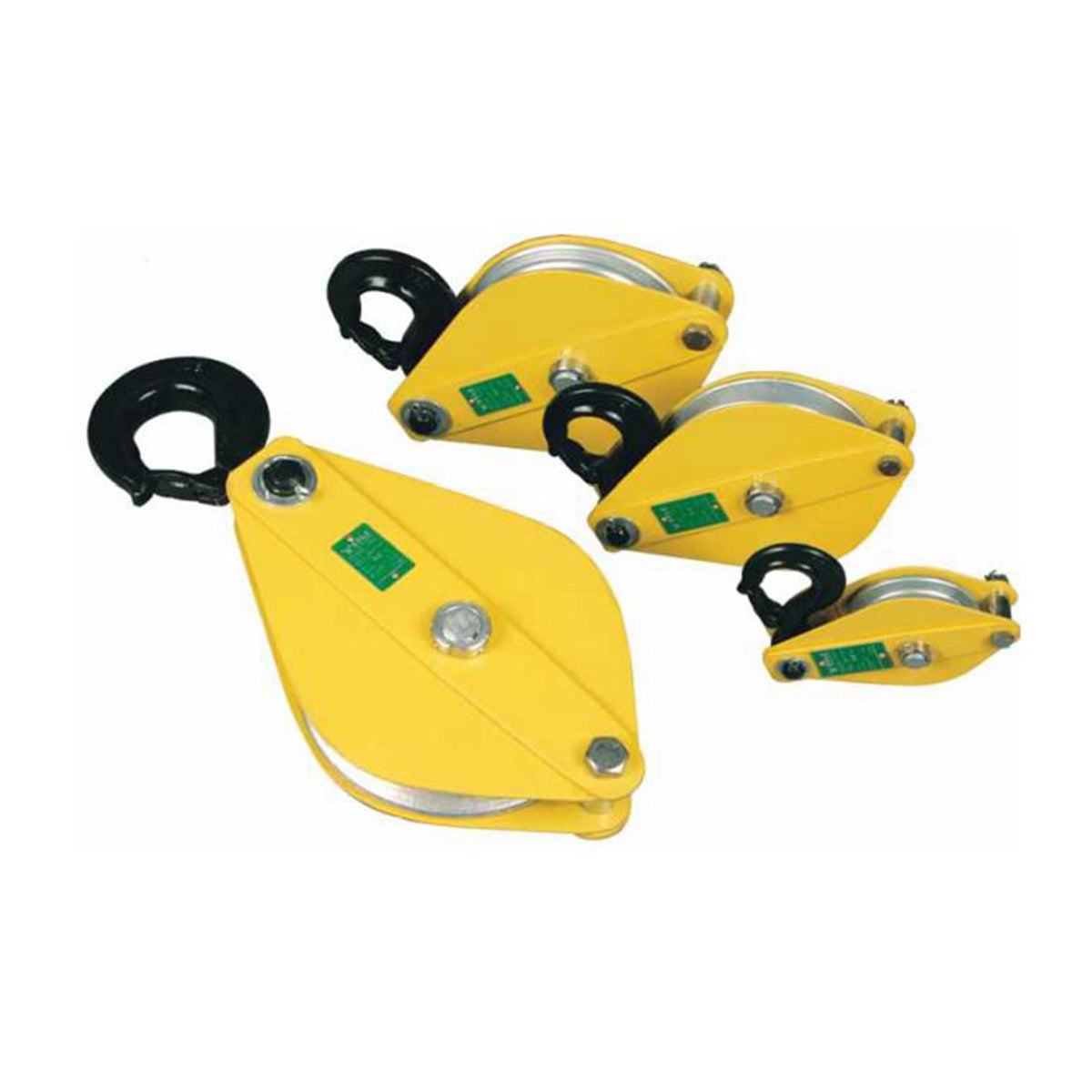

3200kg Snatch Block / Hand Pulley Block – Ableforge HPB32
Heavy-duty 3.2-tonne hand pulley block with drop-forged swivel hook, suitable for steel wire rope and fibre rope. Ideal for construction, factory and rigging applications.
- Working load limit
- 3,200 kg
- Rope diameter
- 15 mm
- Fittings
- Swivel hook
- Material
- High quality machined alloy steel
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
The Ableforge Hand Pulley Block Champin HPB32 is a robust 3.2-tonne (3,200 kg) working load limit snatch block designed to redirect a load line and multiply mechanical advantage in lifting and pulling operations. Built to EN 13157:2003, it is a trusted choice for construction sites, factories, warehouses and rigging applications.
The block features a drop-forged, heat-treated swivel hook and latch complete with a stretch indicator and identity code for traceability and safety assurance. An opening feature allows quick insertion and positioning of rope on the sheave without threading, saving time on site. The block can be securely locked by swinging the hook in the direction of pull, preventing accidental disengagement under load.
The groove and sheave are machined from high-quality alloy steel to suit the intended 15 mm rope diameter, and the block is compatible with both steel wire rope and fibre rope. Bronze bushings or roller bearings are available as optional fitments.

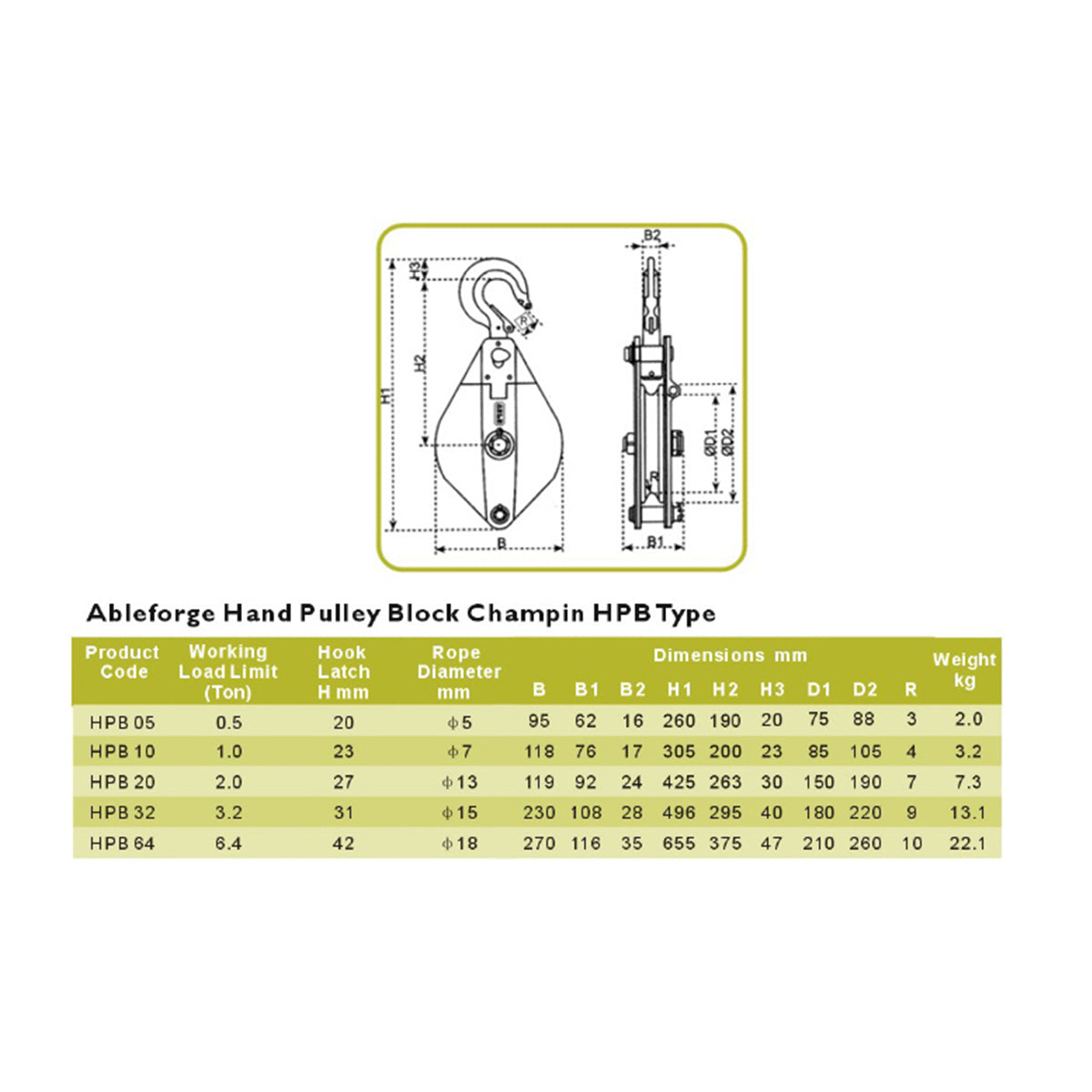

- Working Load Limit: 3.2 tonne (3,200 kg)
- Rope Diameter: 15 mm (ø15)
- Hook Latch H: 31 mm
- Overall Height H1: 496 mm
- Overall Height H2: 295 mm
- H3: 40 mm
- Width B: 230 mm
- Width B1: 108 mm
- Width B2: 28 mm
- Sheave Diameter D1: 180 mm
- Sheave Diameter D2: 220 mm
- R: 9 mm
- Weight: 13.1 kg
- Manufactured to EN 13157:2003
- Colour: Yellow
Key features
- 0132-tonne working load limit
- 02Drop-forged swivel hook with safety latch
- 03Quick-rope insertion feature
- 04Compatible with wire rope & fibre rope
- 05Manufactured to EN 13157:2003
