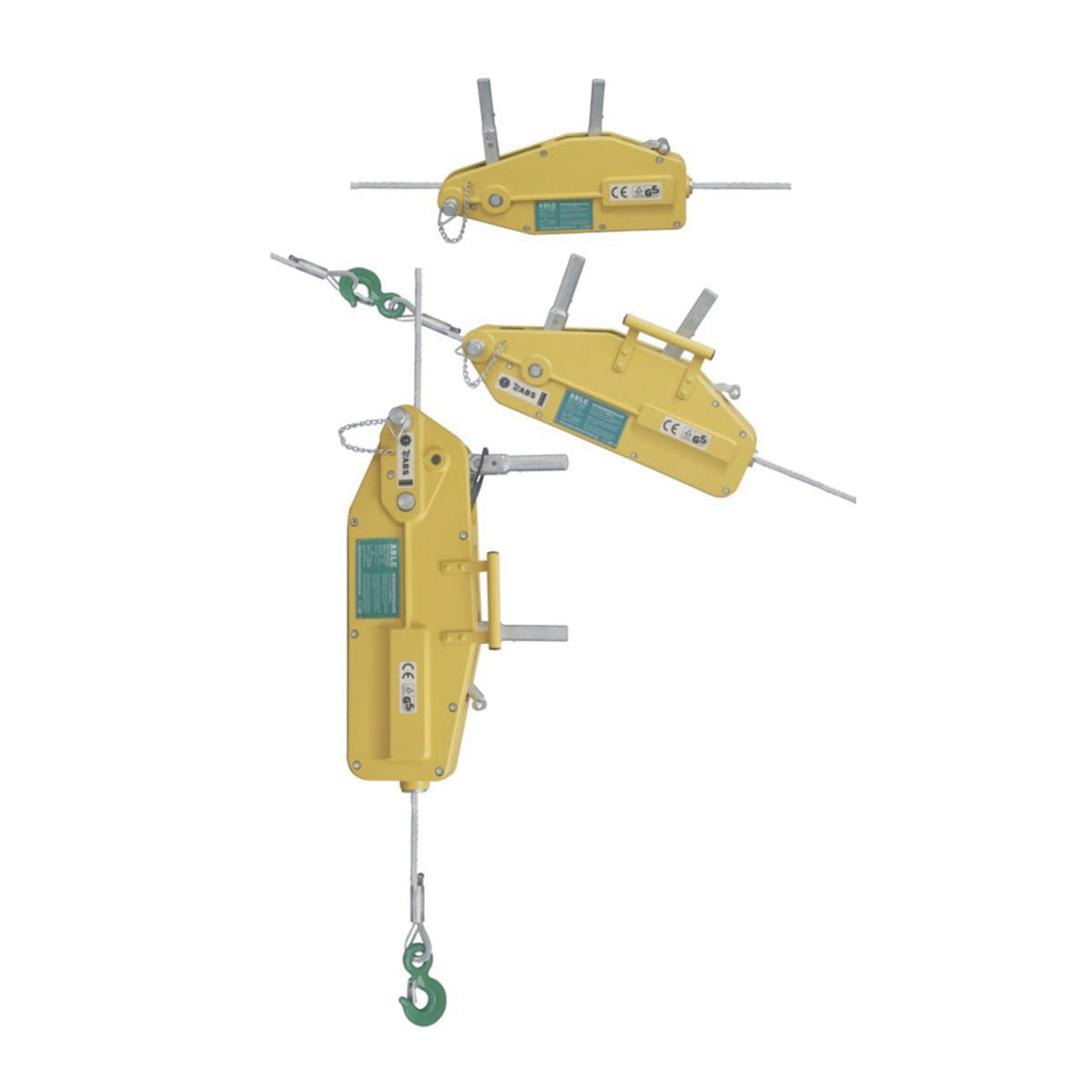

3200kg Wire Rope Puller x 60m

The Able WRP32 wire rope puller is a compact, hand-operated pulling and lifting device designed for demanding industrial, construction, railway, shipbuilding and transport applications. With a 3200 kg lifting capacity and 6000 kg pulling capacity, it handles heavy vehicles, machinery, logs, structural steelwork and more, all without the need for a bulky wire-drum, keeping the unit small and light.

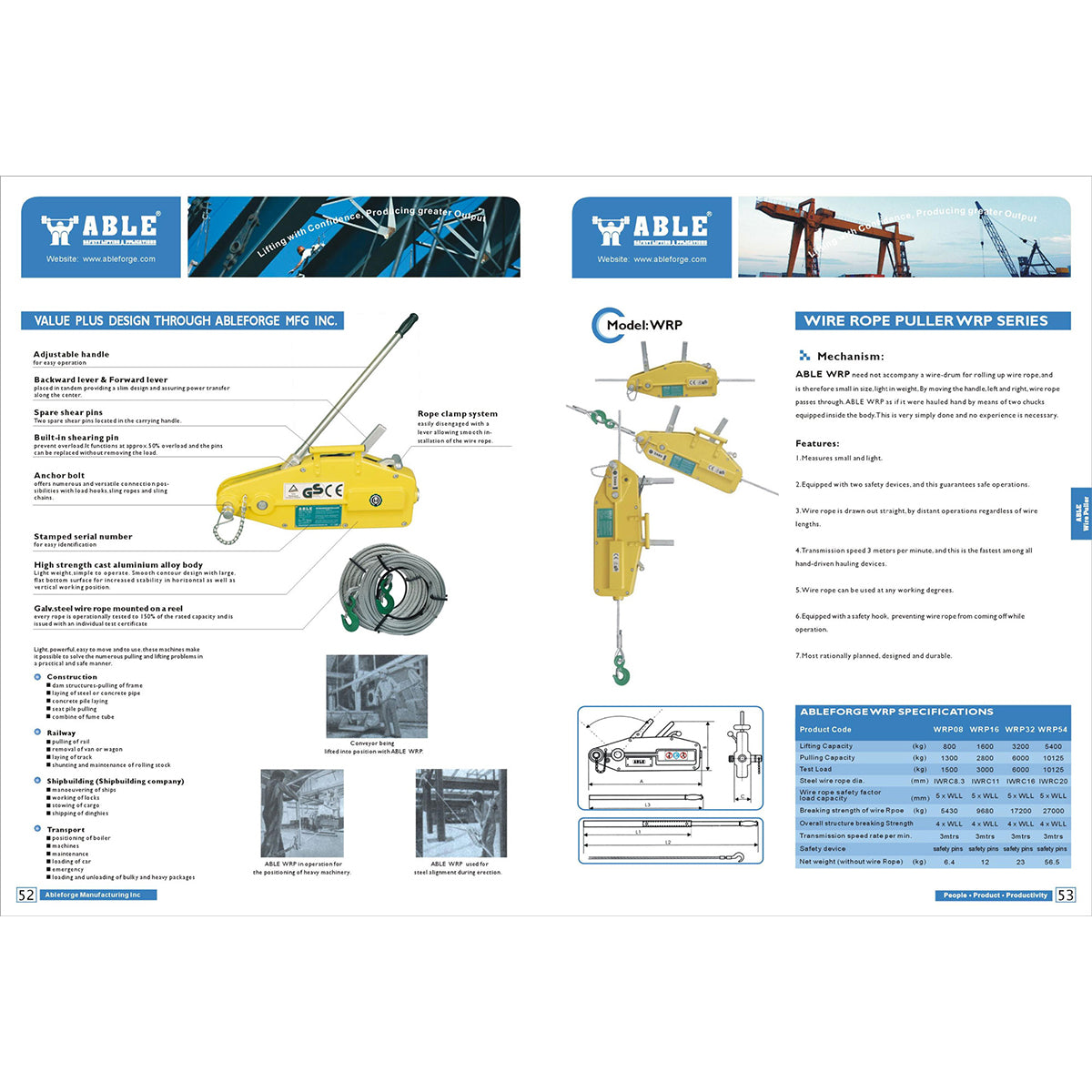

Wire rope passes through the body via a twin-chuck rope clamp system, driven by a forward and backward lever action. Moving the handle left and right draws the rope through as if hauled by hand, at a transmission speed of 3 metres per minute, the fastest rate among comparable hand-driven hauling devices. The rope is always drawn out straight, making it suitable for use at any working angle, horizontal or vertical.

The high-strength cast aluminium alloy body features a smooth contour design with a large flat bottom surface for stability in both horizontal and vertical working positions. Two built-in safety devices guarantee safe operation, and a safety hook prevents the wire rope from coming off during use. A built-in shear pin protects against overload at approximately 150% of rated capacity and can be replaced without removing the load. Two spare shear pins are housed in the carrying handle.

• Lifting Capacity: 3200 kg
• Pulling Capacity: 6000 kg
• Test Load: 6000 kg
• Steel wire rope diameter: 16 mm (IWRC16)
• Wire rope safety factor: 5 × WLL
• Breaking strength of wire rope: 17,200 kg
• Overall structure breaking strength: 4 × WLL
• Transmission speed: 3 metres per minute
• Net weight (without wire rope): 23 kg
• Safety device: Safety pins
• Wire rope supplied: 60 m

Supplied complete with 60 m of galvanised steel wire rope and a heavy-duty hook. CE and GS marked.
