3200kg Wire Rope Puller x 30m

The Able WRP32 is a professional-grade hand-operated wire rope puller designed for lifting, pulling and positioning heavy loads across construction, railway, shipbuilding and transport applications. With a 3200 kg lifting capacity and a 6000 kg pulling capacity, it handles demanding tasks without the bulk of a traditional drum hoist.

The rope passes through the body via two internal chucks, moving the handle left and right alternately pulls the wire rope through or feeds it back, drawing it out perfectly straight regardless of wire length. Transmission speed reaches 3 metres per minute, making it one of the fastest hand-driven hauling devices available.

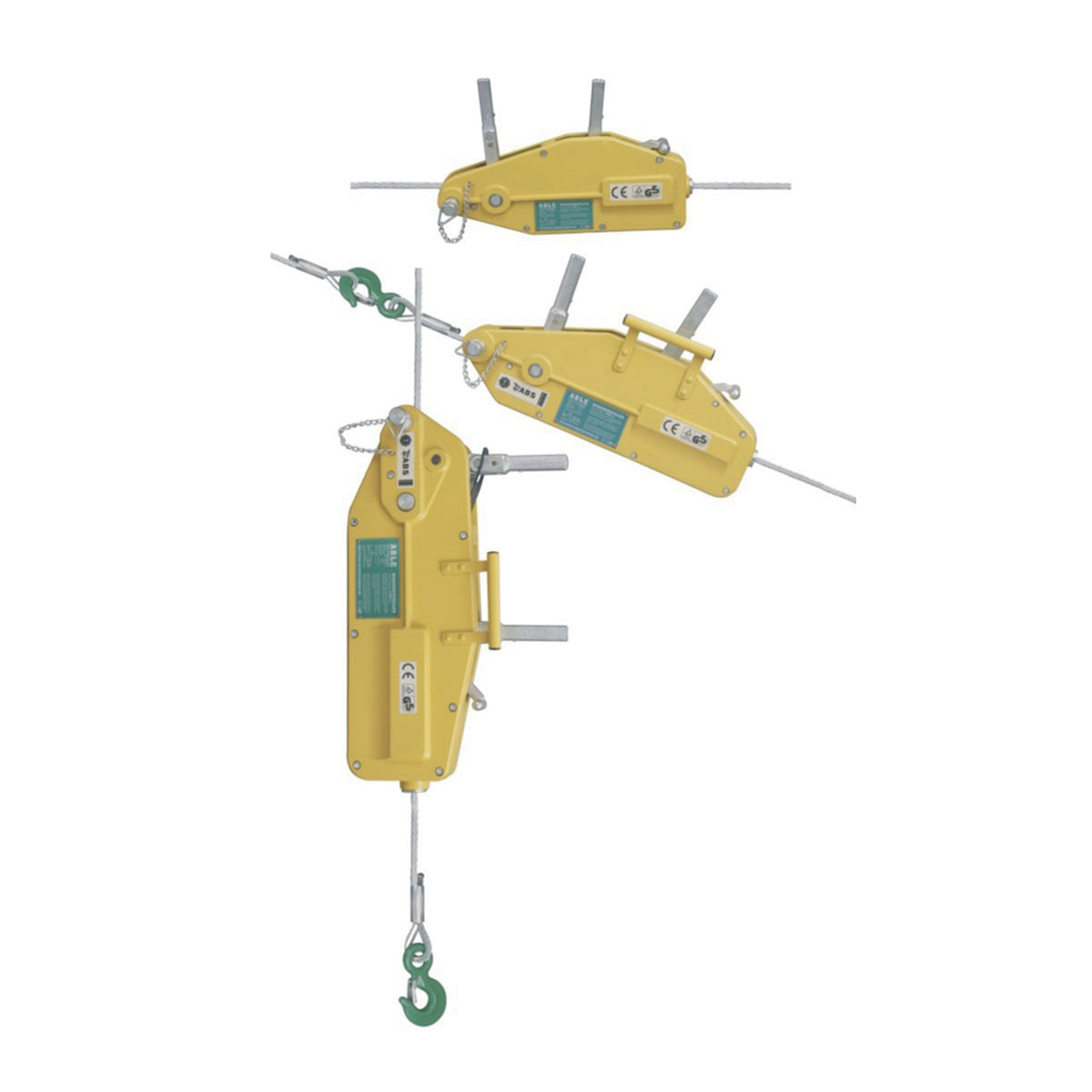

The high-strength cast aluminium alloy body keeps weight to just 23 kg (without rope), whilst the smooth contour design gives a large, flat bottom surface for stability in both horizontal and vertical working positions. Two spare shear pins are housed in the carrying handle; the built-in shearing pin activates at approximately 130% overload and can be replaced without removing the load.

• 3200 kg lifting capacity / 6000 kg pulling capacity
• Supplied with 30 m of galvanised steel wire rope (IWRC16, 16 mm diameter)
• Wire rope breaking strength: 17,200 kg; wire rope safety factor: 5 × WLL
• Overall structure breaking strength: 4 × WLL
• Transmission speed: 3 m per minute
• Safety devices: safety pins + safety hook to prevent rope disengagement
• High-strength cast aluminium alloy body, lightweight yet durable
• Rope clamp system easily disengaged with a lever for simple wire rope installation
• CE and GS marked

Typical applications: pulling and lifting in civil construction, dam work, concrete pipe laying, railway track maintenance, shipyard manoeuvring, vehicle recovery, and loading/unloading of heavy packages.
