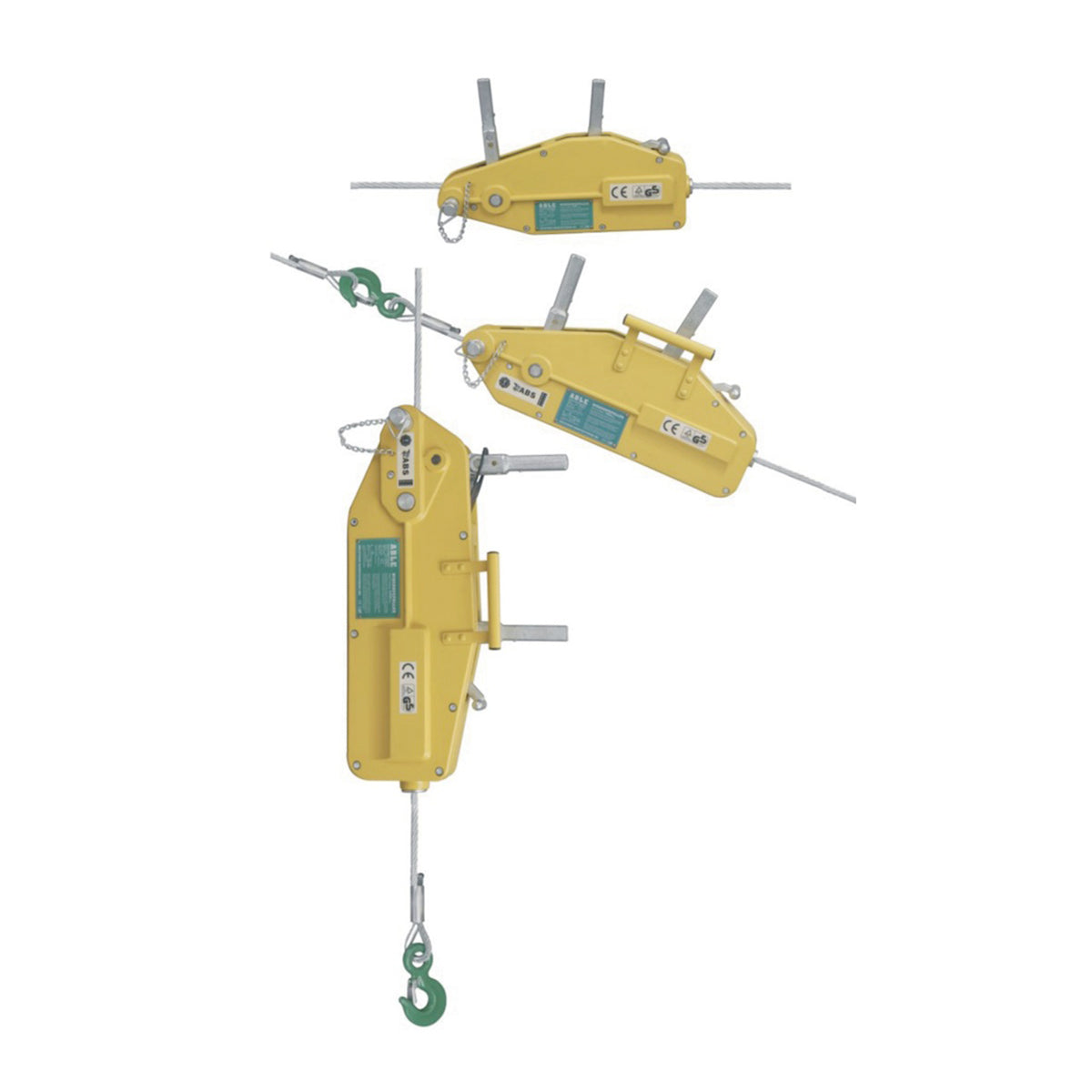

3200kg Wire Rope Puller x 20m

The ABLE WRP32 wire rope puller is a compact, hand-operated pulling and lifting tool engineered for demanding industrial, construction, railway, shipbuilding and transport applications. With a 3200 kg lifting capacity and 6000 kg pulling capacity, it handles heavy loads without the need for a bulky wire-rope drum, keeping the unit small and light for easy deployment anywhere on site.

Operating the puller is straightforward: moving the handle left and right draws the wire rope through two internal chucks, advancing it at up to 3 metres per minute, the fastest transmission speed among hand-driven hauling devices. The rope is always drawn out straight, so it can be used at any working angle regardless of rope length.

The high-strength cast aluminium alloy body features a smooth contour with a large, flat bottom surface for stability in both horizontal and vertical working positions. Two spare shear pins housed in the carrying handle provide built-in overload protection, activating at approximately 150% of rated capacity without requiring load removal to replace them.

• 3200 kg lifting capacity / 6000 kg pulling capacity
• Supplied with 20 m galvanised steel wire rope (16 mm diameter, IWRC16)
• Breaking strength of wire rope: 17,200 kg; overall structure breaking strength: 4 × WLL
• Wire rope safety factor: 5 × WLL
• Transmission speed: 3 metres per minute
• Two safety devices plus safety hook for secure operation
• High-strength cast aluminium alloy body, lightweight yet robust
• Adjustable handle with forward and backward levers; quick-release rope clamp system
• CE marked; GS certified

Typical applications: pulling and positioning vehicles, machinery and logs; construction frame pulling; laying steel or concrete pipe; railway track and rolling-stock maintenance; manoeuvring ships; loading and unloading bulk and heavy packages.
