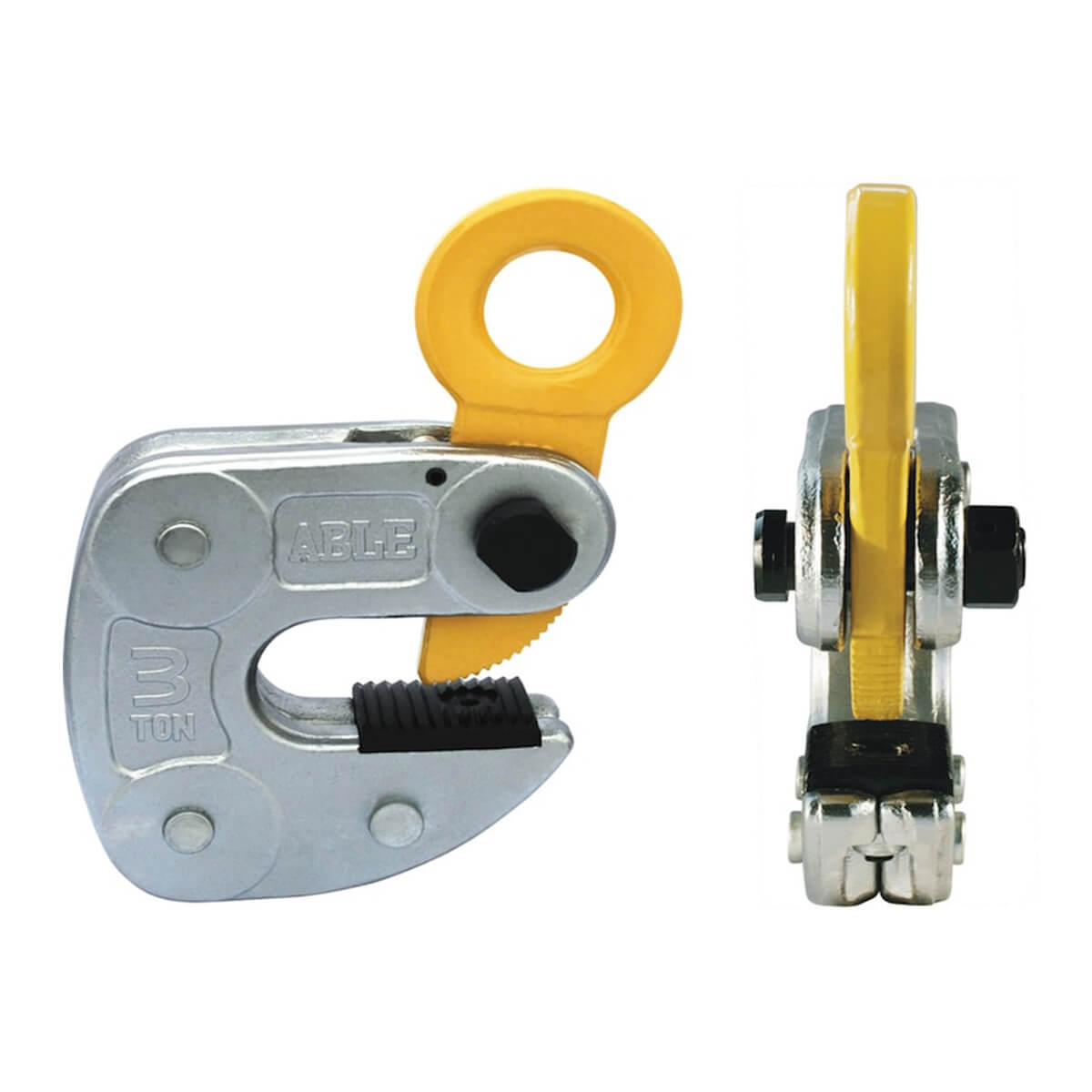

3000kg Horizontal Lifting Clamp

Able HLC3 Horizontal Lifting Clamp, 3 Tonne WLL

The Able HLC3 is a professional-grade horizontal lifting clamp built for the safe horizontal lifting, transfer, and positioning of steel plates and sheet material. Engineered from fully forged and heat-treated alloy steel, this clamp delivers outstanding strength and durability without sacrificing portability, weighing just 8.4 kg despite its 3-tonne working load limit (per pair).

The specially designed thin ground plate and buffer cams allow easy insertion and removal beneath the plate being lifted, making the HLC3 particularly well-suited to plate-lifting operations in tight conditions. A built-in pretension mechanism keeps the clamp securely on the plate even when unloaded, improving safety and handling efficiency on site.

The HLC3 can also be used hanging vertically beneath a spreader beam, for turning beams from the H to I position, and for handling steel beams and sagging plates across a wide range of industrial applications.

• Fully forged and heat-treated alloy steel construction for maximum strength and service life
• Working load limit of 3 tonnes per pair (WLL Ton/Pair: 3) with an MBL of 500% of WLL
• Jaw opening range of 12-35 mm to accommodate a variety of plate thicknesses
• Meets standard BS EN13155 for non-fixed load lifting attachments
• Embossed PI code and individual serial number for full traceability and quality assurance
• Suitable for surface hardnesses up to 37 RC (345 HB)
• Jaw and floor material: 20 CrMnTi alloy steel

Typical Applications

• Building and civil engineering construction sites
• Shipbuilding yards
• Metal production workshops
• Subway and underground construction
