2000kg Hand Pulley Block – Ableforge Champin HPB20
Heavy-duty 2-tonne hand pulley (snatch) block with drop-forged swivel hook, alloy steel sheave and opening feature for quick rope insertion. Ideal for construction, rigging and factory lifting.
- Working load limit
- 2 kg
- Rope diameter
- 13 mm
- Fittings
- Swivel hook
- Material
- Machined alloy steel
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

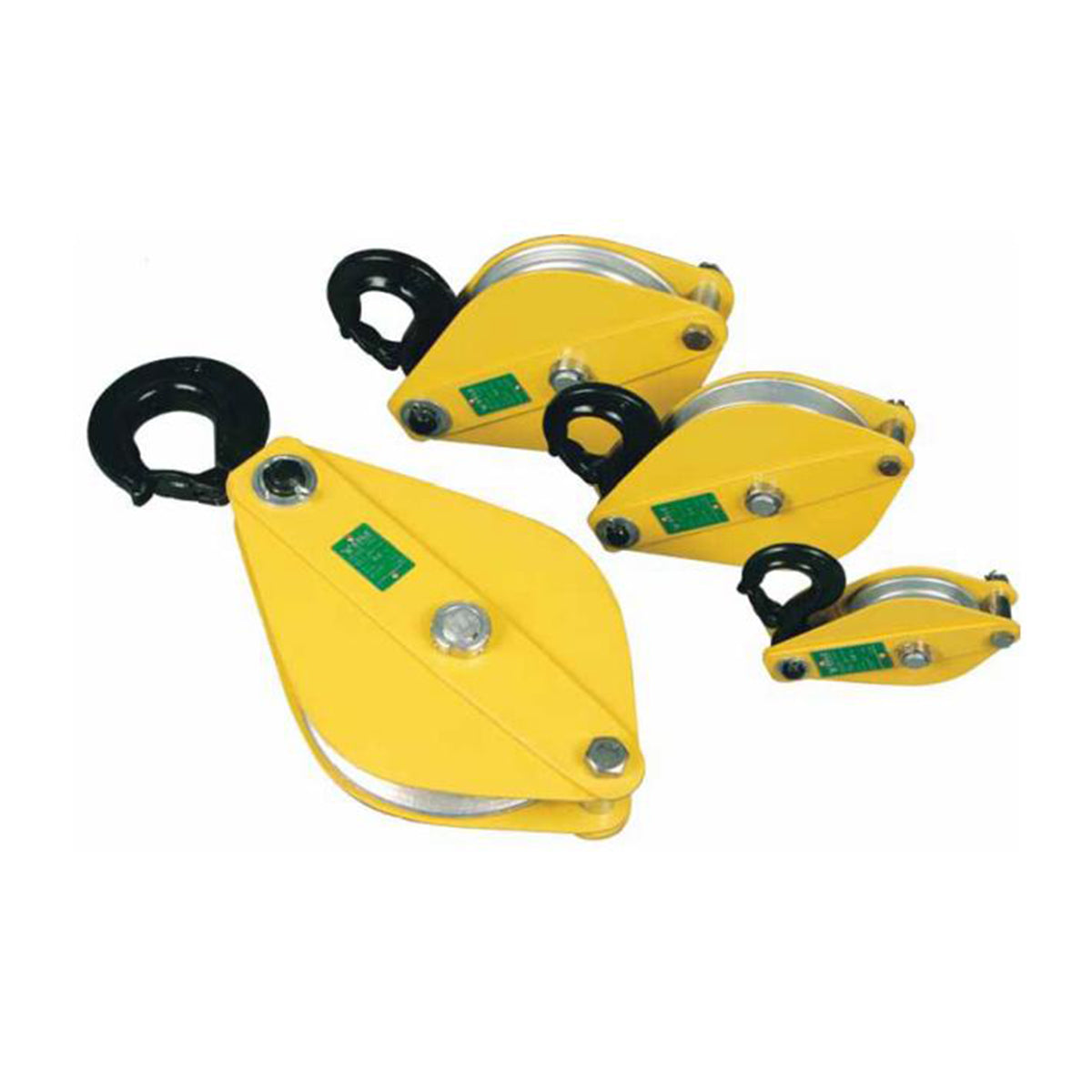

The Ableforge Champin HPB20 is a 2.0-tonne Working Load Limit hand pulley block (snatch block) designed to redirect a load line and multiply pulling force in lifting and rigging applications. Built to EN 13157:2003, it is a reliable choice for construction sites, factories, workshops and general rigging work.
The block accepts rope up to 13 mm diameter (steel wire rope or fibre rope) and features a high-quality machined alloy steel groove and sheave for smooth, low-friction operation. The drop-forged, heat-treated swivel hook incorporates a safety latch with stretch indicator and identity code, while the opening feature allows quick insertion and positioning of rope on the sheave without full reeving.
- Working Load Limit: 2.0 tonne (2000 kg)
- Manufactured to EN 13157:2003
- Drop-forged, heat-treated swivel hook with safety latch, stretch indicator and identity code
- Alloy steel machined sheave and groove, compatible with steel wire rope and fibre rope up to ø13 mm
- Opening feature for quick rope insertion and positioning
- Hook locks securely by swinging in the direction of pull
- Can be furnished with bronze bushings or roller bearings
- Product Code: HPB20 | Weight: 7.3 kg
A snatch block such as the HPB20 is attached to an anchor point and the winch or pulling rope is run through it and back to the pulling device, effectively doubling the mechanical advantage and reducing the effort required to move heavy loads.
Key features
- 0120 tonne working load limit
- 02Drop-forged swivel hook
- 03Alloy steel sheave
- 04Quick rope insertion
- 05Secure locking design

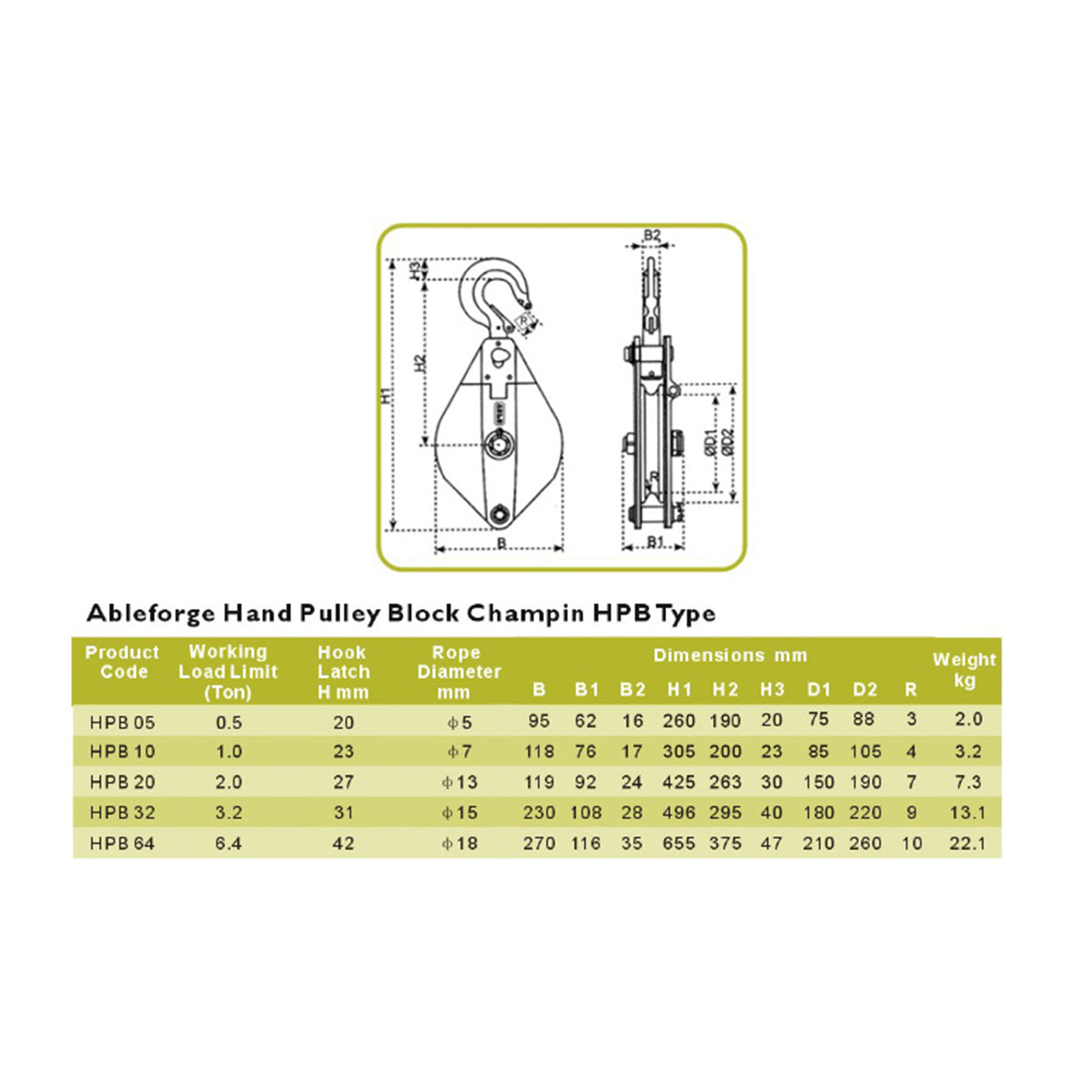

Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
