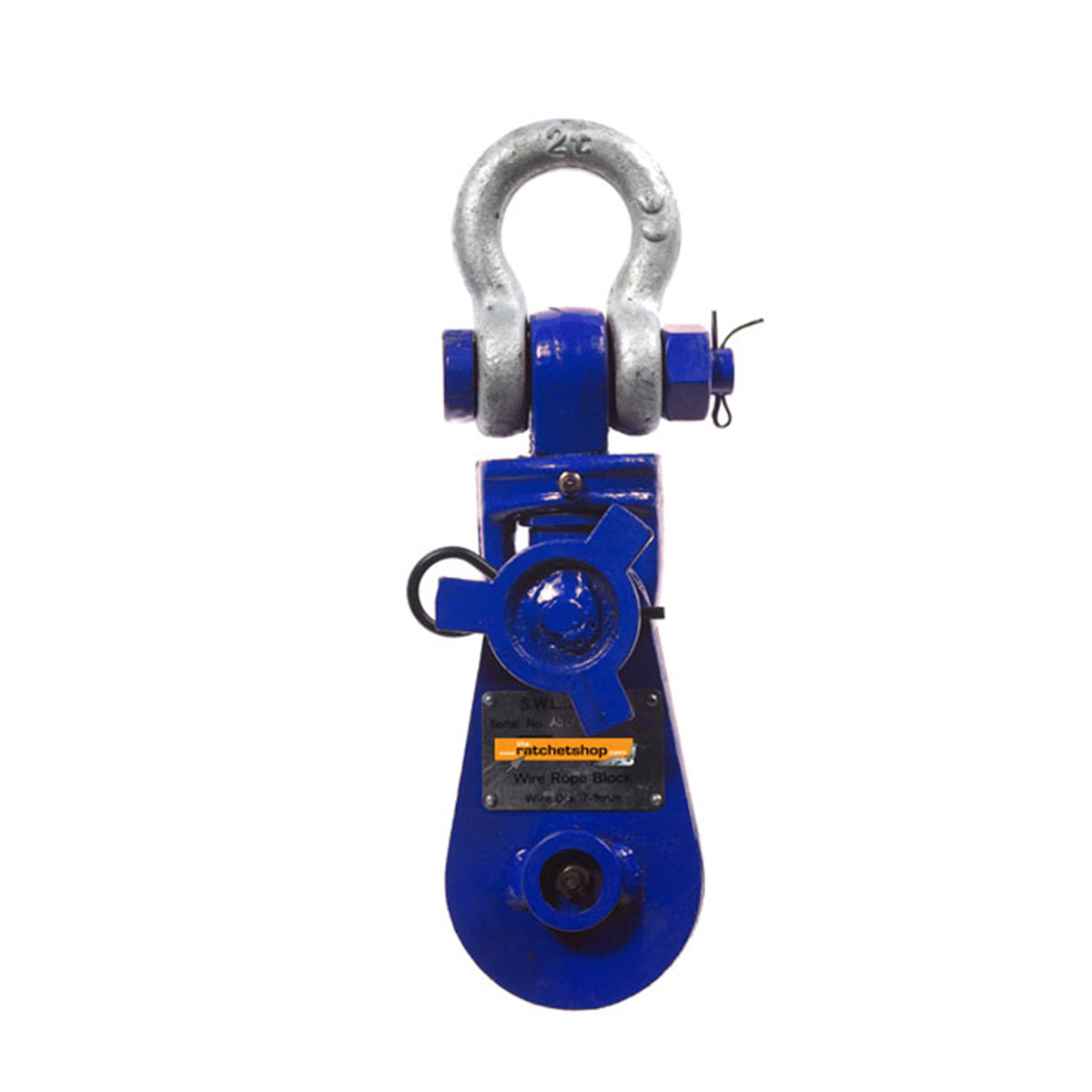

2000kg Heavy Duty Shackle Head Snatch Block
A heavy-duty steel snatch block with shackle head attachment, rated to 2,000 kg. Features a drop-forged sheave and roller bearing for smooth, high-load wire rope operation in lifting, pulling and redirecting applications.
- Working load limit
- 2,000 kg
- Rope diameter
- 7 mm
- Webbing width
- 82 mm
- Material
- Structural carbon steel ASTM-A36/A572
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This heavy-duty shackle head snatch block is built for demanding industrial lifting, pulling, towing and rope-redirect applications. Constructed from structural-quality carbon steel with a drop-forged, flame-hardened sheave and fitted with a roller bearing for smooth, high-speed wire rope operation, it offers reliable performance under sustained load.
The block is supplied in a vivid blue powder-coat finish and features an opening gate that allows wire rope to be inserted or removed quickly without threading, saving time on site. A galvanised bow shackle head provides the suspension point, secured with a moused pin for added security.
- Rated capacity: 2,000 kg (2 t) Safe Working Load
- Drop-forged sheave with flame-hardened groove for extended wear life
- Roller bearing sheave for smooth operation at high line speeds
- Quick-open gate allows wire rope insertion without full threading
- Plates manufactured from structural-quality carbon steel (ASTM-A36/A572)
- Alloy steel shackle, heat-treated, with heat-treated and tempered alloy steel pin

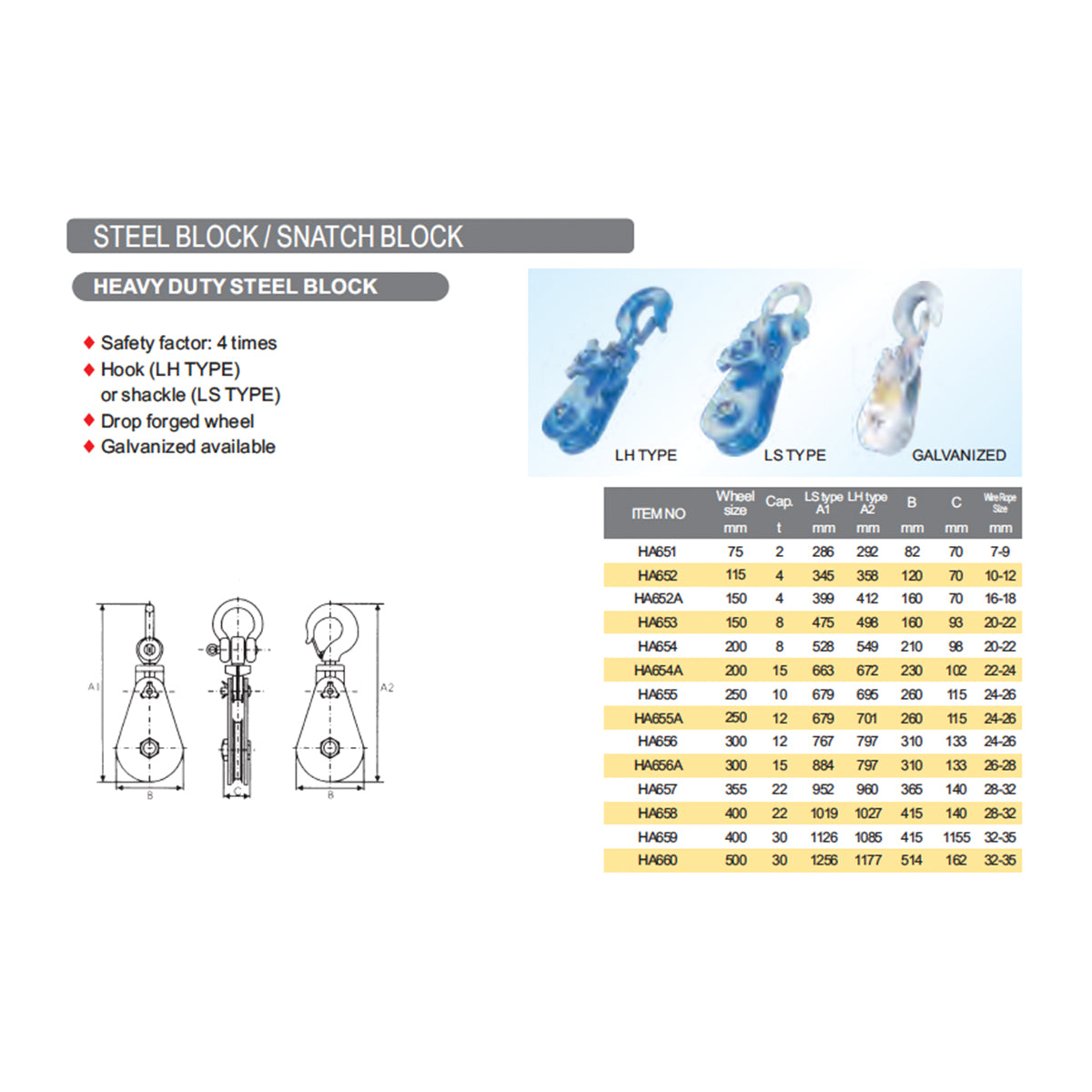

- Suitable for wire rope sizes 7-9 mm (LS/shackle type, 75 mm wheel)
Ideal for use in construction, fabrication, marine, recovery and general industry wherever a reliable, high-capacity rope pulley block is required.
Key features
- 012,000 kg rated capacity
- 02Drop-forged sheave
- 03Roller bearing fitted
- 04Quick-open gate
- 05Shackle head suspension
Specification
