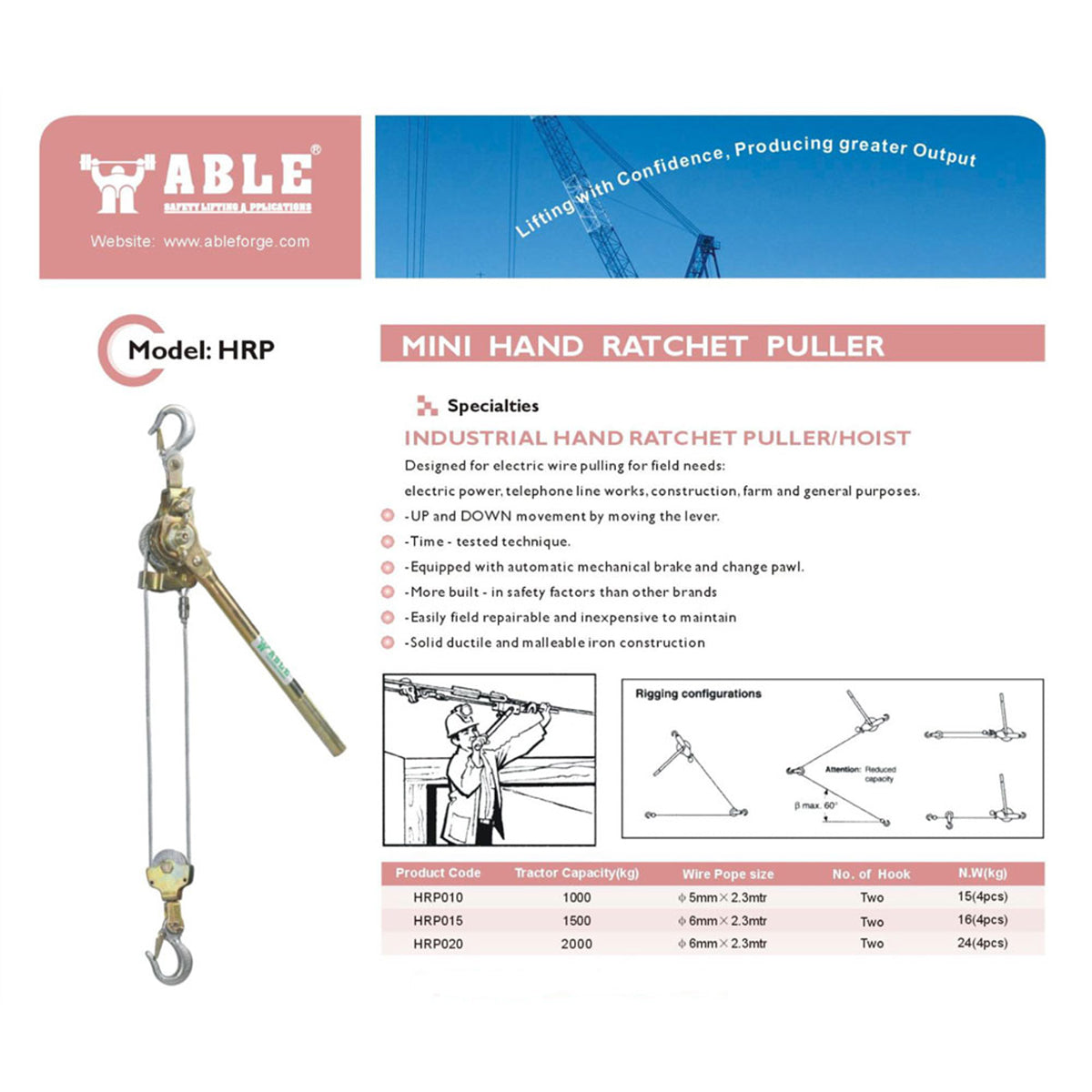

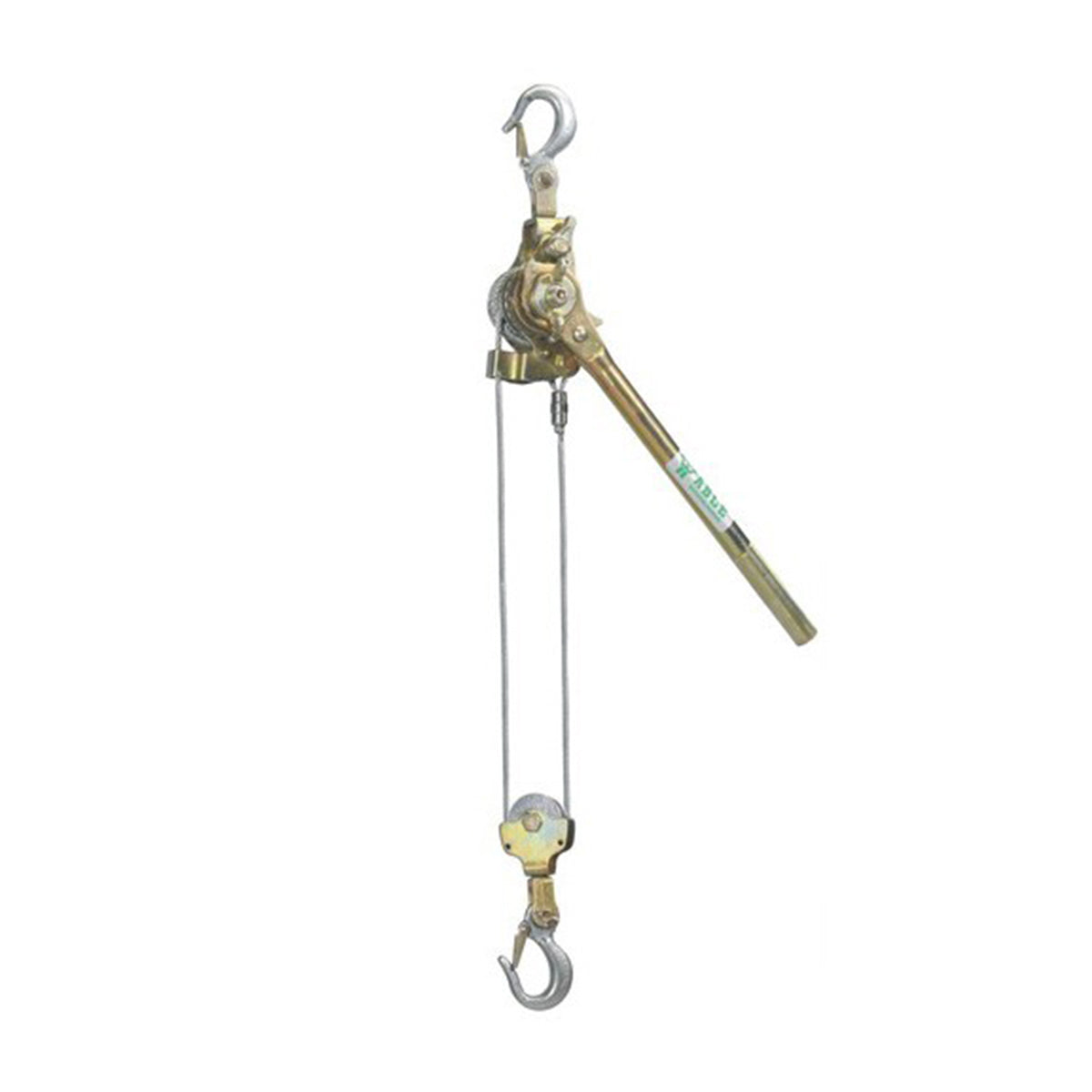

2000kg x 2.3m Mini Hand Ratchet Puller – ABLE HRP020

The ABLE Mini Hand Ratchet Puller (Model HRP020) is a compact, field-ready hoist designed for pulling electrical wire and cables in demanding environments including electric power infrastructure, telephone line works, construction sites, and agricultural applications. Its solid ductile and malleable iron construction ensures long service life, while the simple lever-operated ratchet mechanism lets one person tension or lift loads smoothly and safely.

A built-in automatic mechanical brake and change pawl lock the load securely at any point in the stroke, preventing uncontrolled release. The tool is straightforward to field-repair and inexpensive to maintain, keeping downtime to a minimum even in remote locations.

Key Features

• Tractor capacity: 2000 kg with a 6 mm × 2.3 m wire rope
• Two swivel safety hooks, one fixed upper hook, one travelling lower hook with pulley block
• Automatic mechanical brake and change pawl for secure load holding
• Up and down movement via a single lever, no additional tools required
• Solid ductile and malleable iron body construction for durability and field repairability

Typical applications: electric power line work, telephone and telecoms cable pulling, building construction, fencing, farm and general-purpose pulling tasks.

Note: maximum sling angle is 60° when using in spread rigging configurations, capacity is reduced beyond this angle. Always follow safe working practice and never exceed the rated capacity.
