2000kg Horizontal Lifting Clamp – ABLE HLC2 (WLL 2 Ton/Pair)

ABLE HLC2 SV Plus Horizontal Lifting Clamp, 2000kg (WLL 2 Ton/Pair)

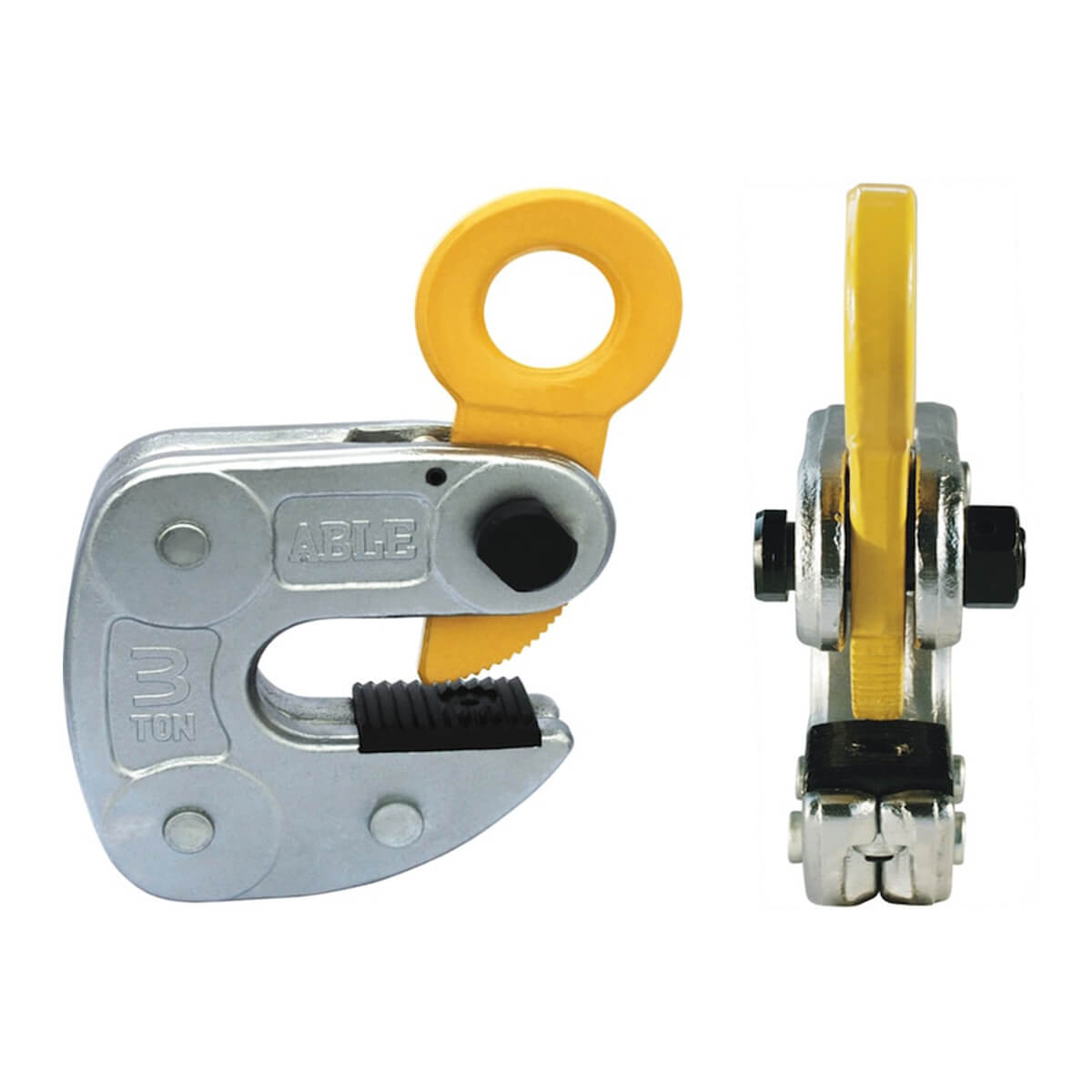

The ABLE HLC2 horizontal lifting clamp is engineered for the safe horizontal lifting and transfer of steel plates, sheet material, and steel beams. Its specially thin ground plate and buffer cams allow quick, easy insertion and removal beneath the plate being lifted. The built-in pretension mechanism keeps the clamp securely on the plate even when unloaded, preventing accidental dislodgement during placement. The clamp can also be used hanging vertically beneath a spreader bar, and is suitable for turning beams from the H to the I position.

All parts are fully forged and heat treated, providing exceptional strength and longevity. Each clamp carries an embossed brand mark and a permanent PI code for complete traceability. The WLL figures stated are based on use as a pair.

Key Properties

• All forged and heat-treated parts for maximum durability
• Minimum breaking load (MBL) of 500% of WLL, or better
• Built-in pretension keeps clamp engaged on plate when unloaded
• Permanent PI code and embossed branding for full traceability
• Meets standard BS EN 13155
• Suitable for surface hardness up to 37 RC (345 HB)

Working Fields

• Building and civil engineering construction sites
• Shipbuilding yards
• Metal production workshops
• Subway and underground construction sites

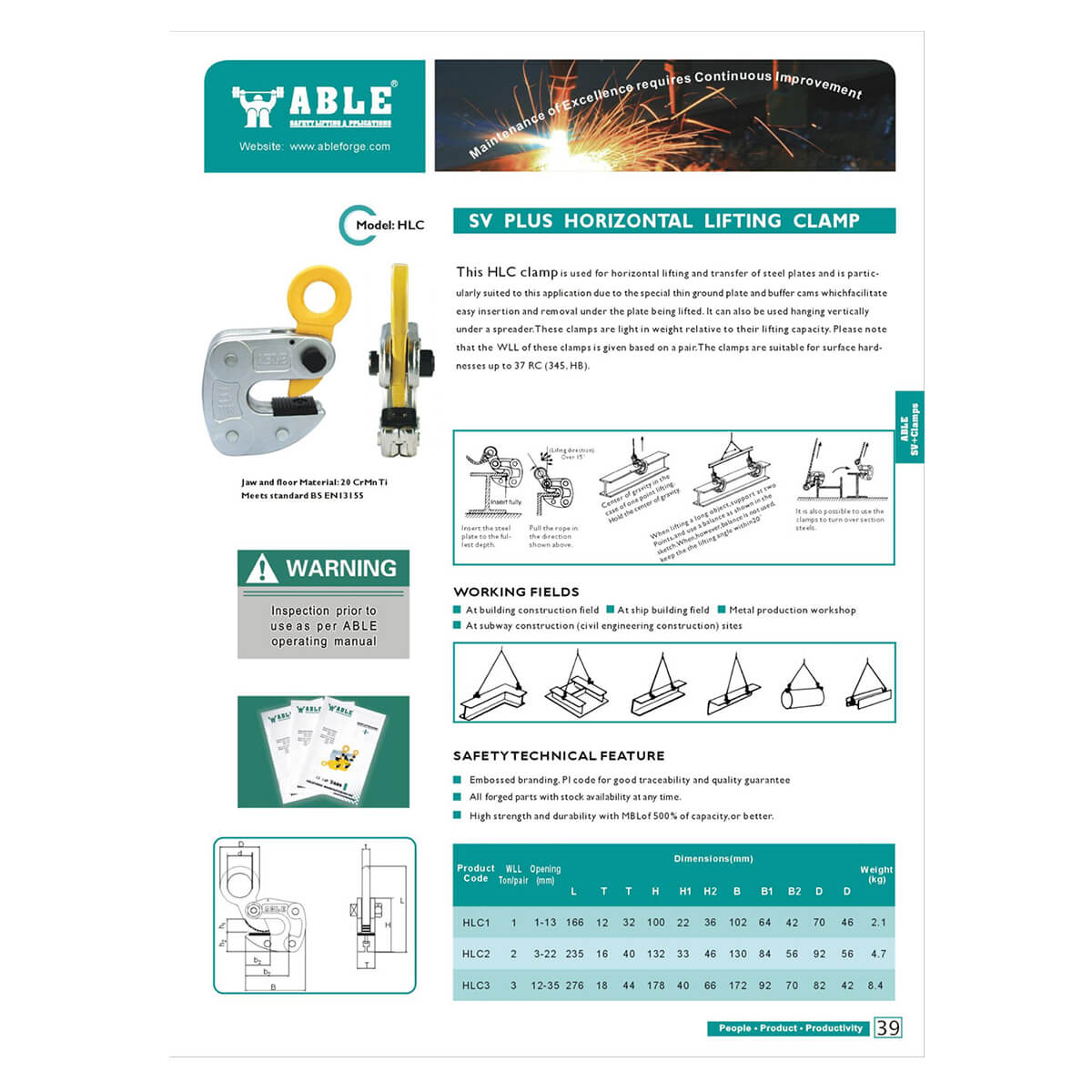

Technical Specifications

• Model: HLC2
• WLL: 2 Ton/Pair
• Opening range: 3-22 mm
• Weight: 4.7 kg
• Dimensions (L × T × T × H × H1 × H2 × B × B1 × B2 × D × D): 235 × 16 × 40 × 132 × 33 × 46 × 130 × 84 × 56 × 92 × 56 mm
• Jaw and floor material: 20 CrMnTi
