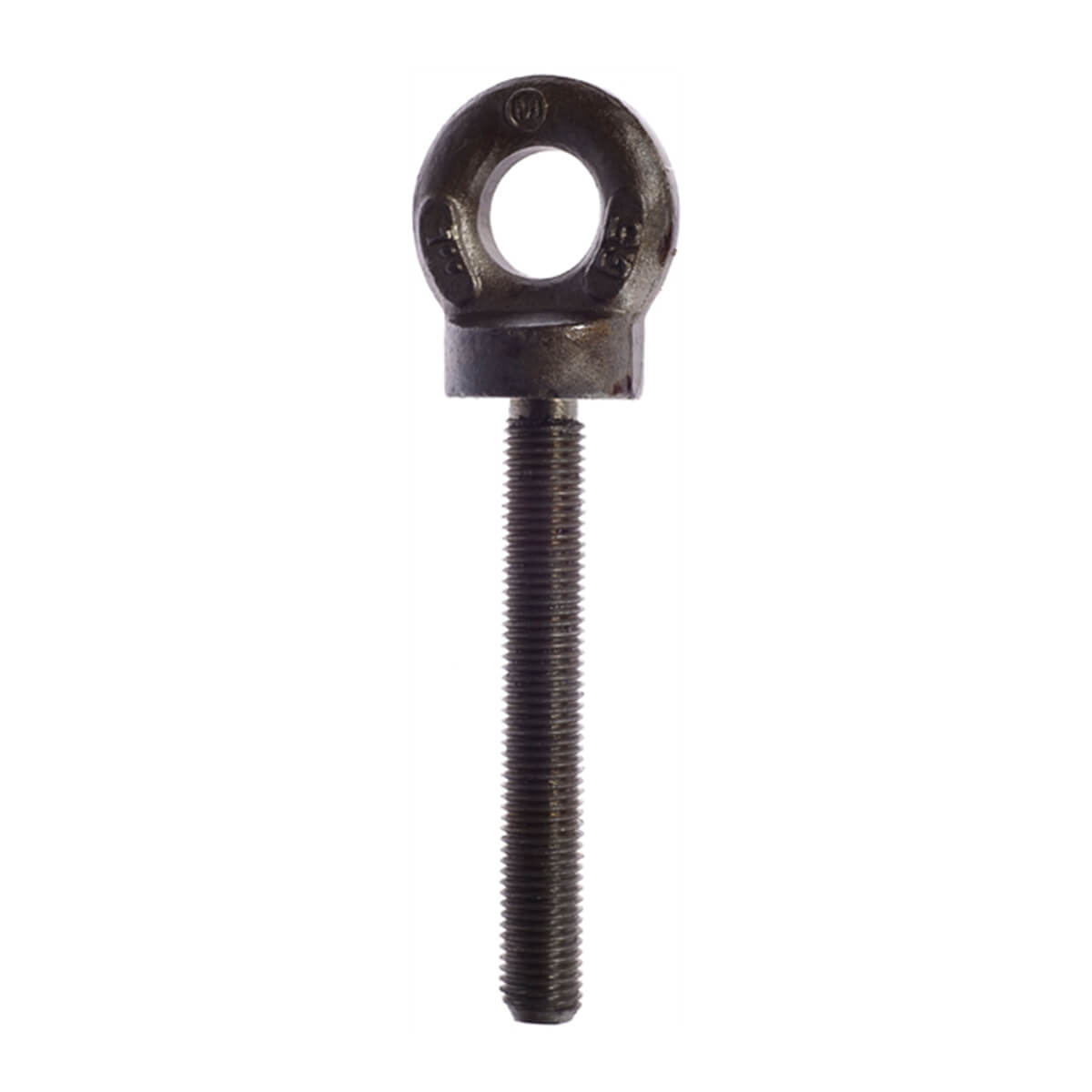

2.50t Long Shank Collared Eyebolt – Metric Thread (L1608)
Heavy-duty Carbon Steel C15 long shank collared eyebolt with metric thread, rated to a 2.50 tonne WLL. Heat treated and tested for safe vertical and angled lifting applications.
- Working load limit
- 2,500 kg
- Material
- Carbon Steel C15
- Length
- 178 mm
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
Easy Winder Ratchet Strap Winder Tool £9.60£8.00
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This Long Shank Collared Eyebolt (code L1608) features a metric thread shank and is manufactured from Carbon Steel C15 for reliable, heavy-duty lifting performance. Heat treated and tested to a Working Load Limit (WLL) of 2.50 tonnes, it is suited to both vertical lifts and angled lifting applications when used correctly.
The collared design allows the eyebolt to be used with loads applied at an angle, provided the pull remains in the same plane as the eye. We recommend the sling angle does not exceed 45° from the vertical when used with angled lifts such as a two-leg sling arrangement.
- Material: Carbon Steel C15
- Self colour finish (electro galvanised finish available on request)
- Heat treated for enhanced strength and durability
- Tested and certified
- Metric thread
- Long shank design suitable for use through thick sections or where extra thread engagement is required

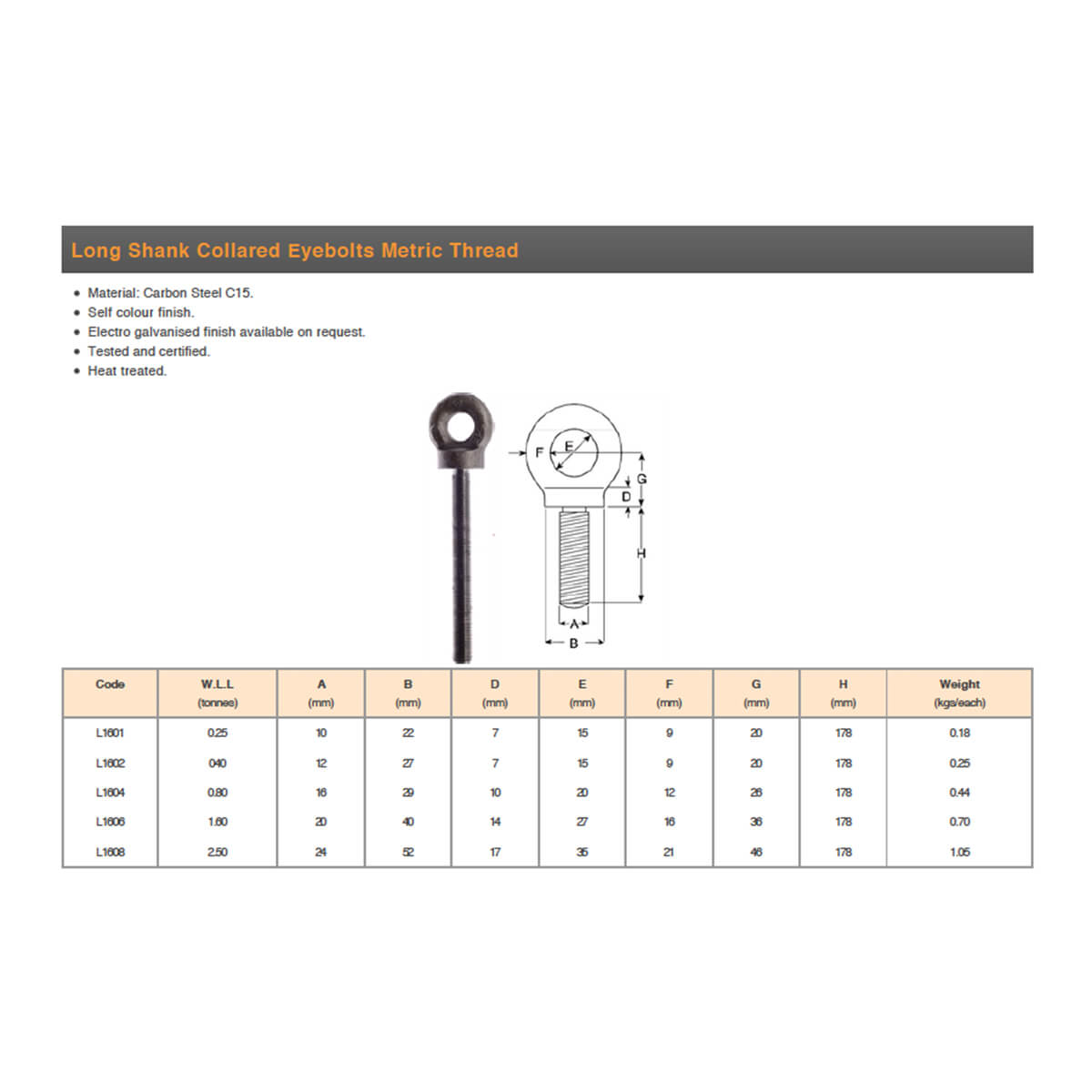

Key dimensions (L1608): Thread diameter (A) 24 mm, collar width (B) 52 mm, collar height (D) 17 mm, eye internal diameter (E) 35 mm, eye width (F) 21 mm, collar outer diameter (G) 46 mm, overall length (H) 178 mm. Weight: 1.05 kg each.
Key features
- 01250 tonne WLL
- 02Long shank metric thread
- 03Collared design for angled lifts
- 04Tested and certified
- 05Self colour finish
Specification
