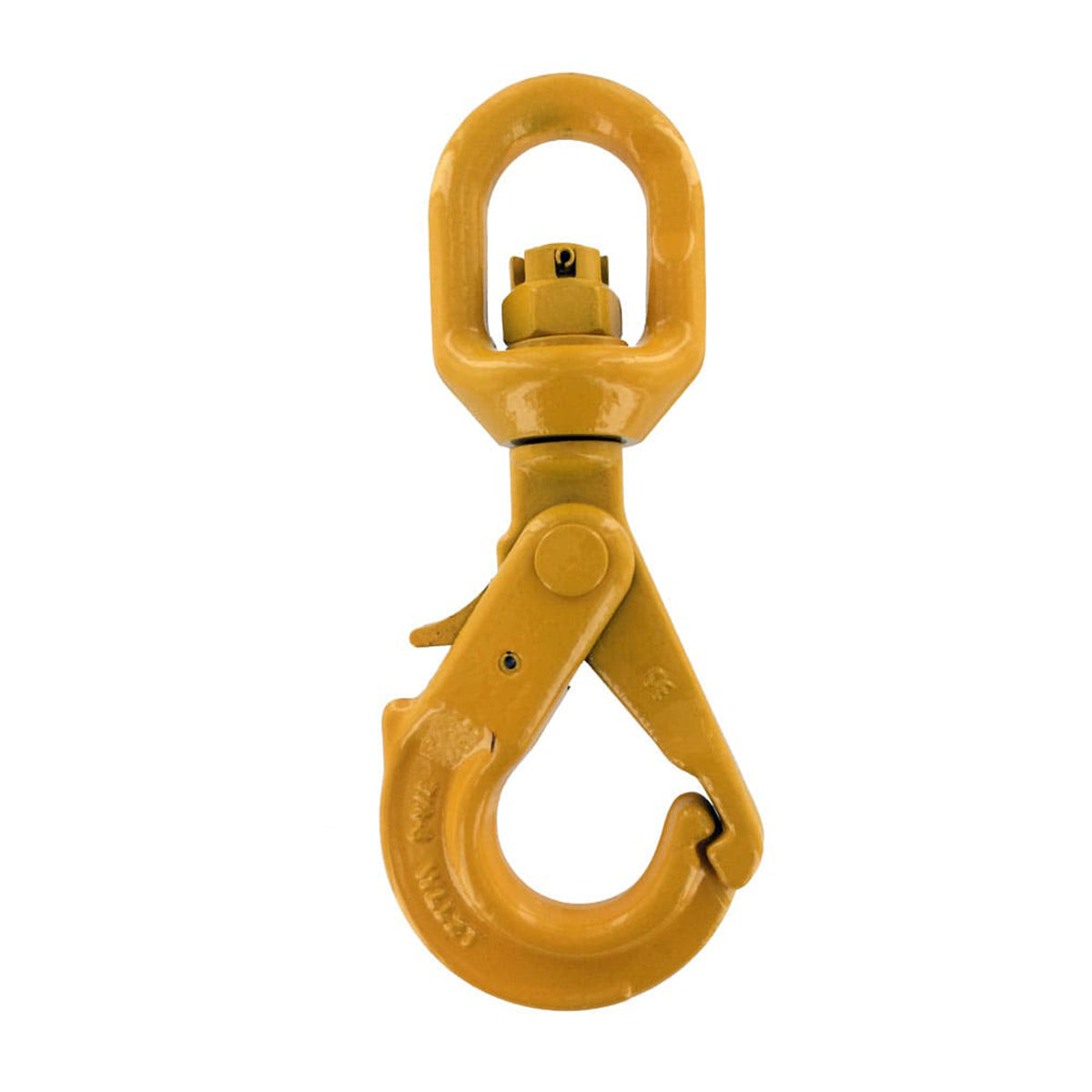

16mm Eye Self Locking Swivel Hook
A Grade 80 alloy steel swivel safety hook with self-locking latch, rated at 8,000 kg WLL. The 360° swivel eye eliminates sling leg twist, making it ideal for heavy-duty and high-rise lifting applications.
- Working load limit
- 8,000 kg
- Min. breaking load
- 32,000 kg
- Grade
- Grade 80
- Material
- High-grade alloy steel, quenched and tempered
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This 16 mm eye self-locking swivel hook is built to Grade 80 specification from high-grade quenched and tempered alloy steel, delivering a Working Load Limit of 8,000 kg. The integrated swivel eye rotates freely to remove sling leg twist before and during loading, a critical advantage in high-rise and multi-leg lifting scenarios where load spin can compromise safety.
The positive-lock latch is self-locking under load, meaning the hook cannot open accidentally once a load is applied. Every hook is proof-load tested to 2.5 times its WLL, with an ultimate load capacity of 4 times the rated capacity, giving you a robust safety margin in the toughest working environments.
Clearly marked with brand, WLL, batch number and size for full traceability, these hooks are a trusted choice across the oil and gas, construction, marine and general heavy-lifting industries.
- Material: High-grade alloy steel, quenched and tempered, Grade 80
- Working Load Limit: 8,000 kg (8.0 tonnes)
- Suitable for use with Grade 80 alloy chain and wire rope
- Positive self-locking latch, hook cannot open under load
- Proof load tested to 2.5× WLL; ultimate load 4× WLL
- Fatigue rated to 1.5× WLL at 20,000 cycles
- Marked with brand, WLL, batch number and size for full traceability
- Finish: Yellow/green paint coating
Key features
- 01Self-locking safety latch
- 02Grade 80 alloy steel
- 038,000 kg working load limit
- 04360° swivel eye
- 05Fully traceable
