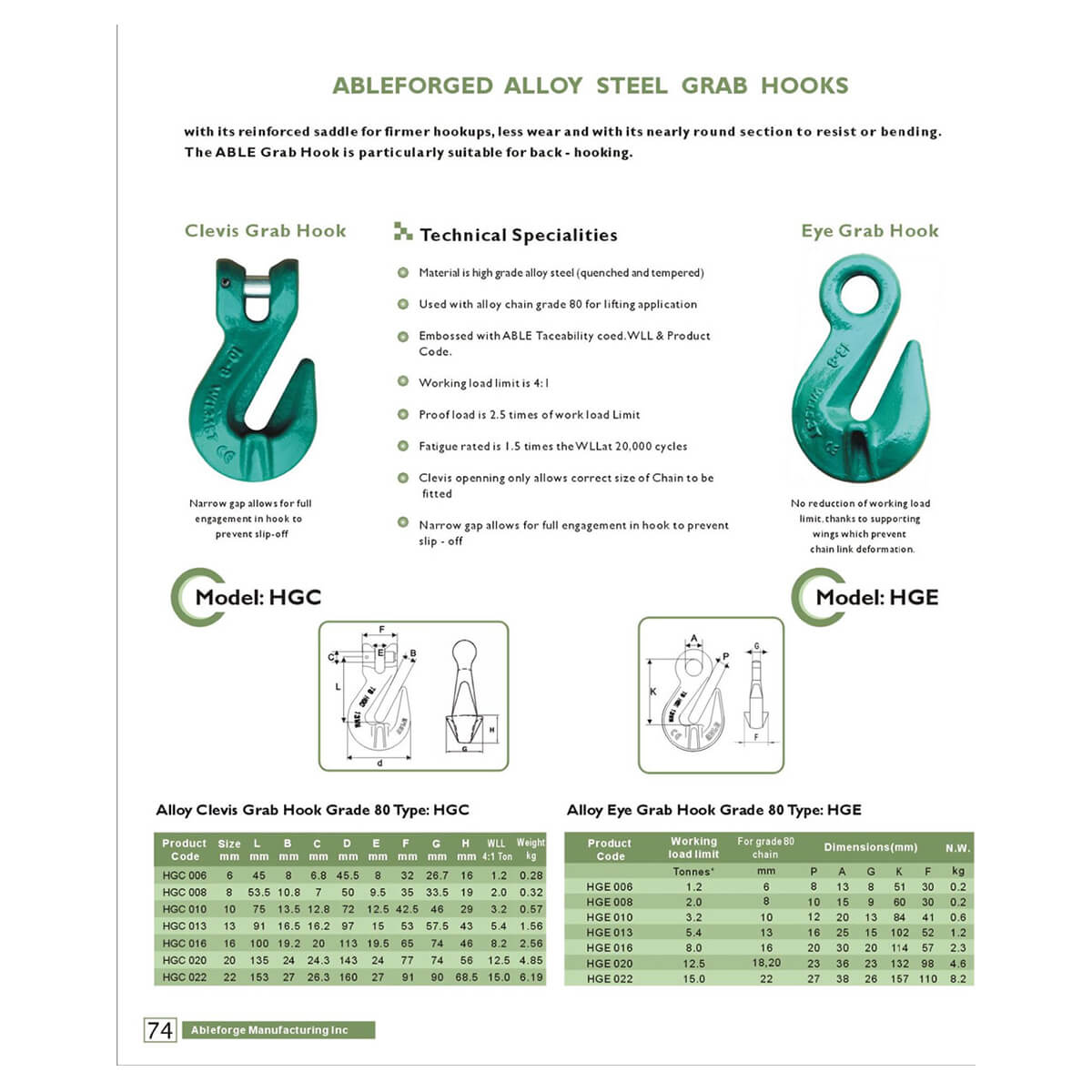

16mm Clevis Grab Hook – Grade 80 Alloy Steel
A heavy-duty Grade 80 alloy steel clevis grab hook with an 8,000 kg WLL, designed for use with 16 mm chain. The reinforced saddle and narrow clevis opening ensure secure engagement and prevent slip-off.
- Working load limit
- 8,000 kg
- Grade
- Grade 80
- Fittings
- Grab hook
- Material
- High-grade alloy steel, quenched and tempered
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This 16 mm clevis grab hook is forged from high-grade alloy steel (quenched and tempered) and rated to Grade 80, making it an essential component for lifting slings, chain shortening, and securing loads at the correct chain length. The reinforced saddle provides a firmer hookup, reduces wear, and the near-round section profile resists bending under load.
The clevis opening is sized to accept only the correct diameter of chain, preventing incorrect assembly and eliminating the risk of slip-off during use. Embossed markings show the brand, WLL, batch number, and size for full traceability on site.
- Made from high-grade alloy steel, Grade 80, quenched and tempered
- Working Load Limit: 8,000 kg (8 tonnes) at a 4:1 safety factor
- Proof load tested to 2.5 times the Working Load Limit
- Fatigue rated to 1.5 times the WLL at 20,000 cycles
- Narrow clevis opening accepts only the correct chain size, preventing slip-off
- Reinforced saddle for firmer hookups and reduced wear
- Embossed with brand, WLL, batch number, and size for traceability
- Particularly suitable for back-hooking applications
Key features
- 01Grade 80 alloy steel
- 028,000 kg working load limit
- 03Secure chain engagement
- 04Reinforced saddle design
- 05Fully traceable
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
How to use lifting chains
A short guide from the team on using it safely and getting the most from it. Turn on captions with CC to follow along without sound.
