13mm Grade 80 Alloy Steel Eye Self-Locking Safety Hook – 3.2t WLL
A Grade 80 alloy steel eye self-locking safety hook with automatic load-activated locking latch. Rated to 3.2 tonnes WLL and proof tested to 2.5× capacity for safe, reliable lifting.
- Working load limit
- 3,200 kg
- Min. breaking load
- 12,800 kg
- Grade
- Grade 80
- Fittings
- Self-locking hook
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

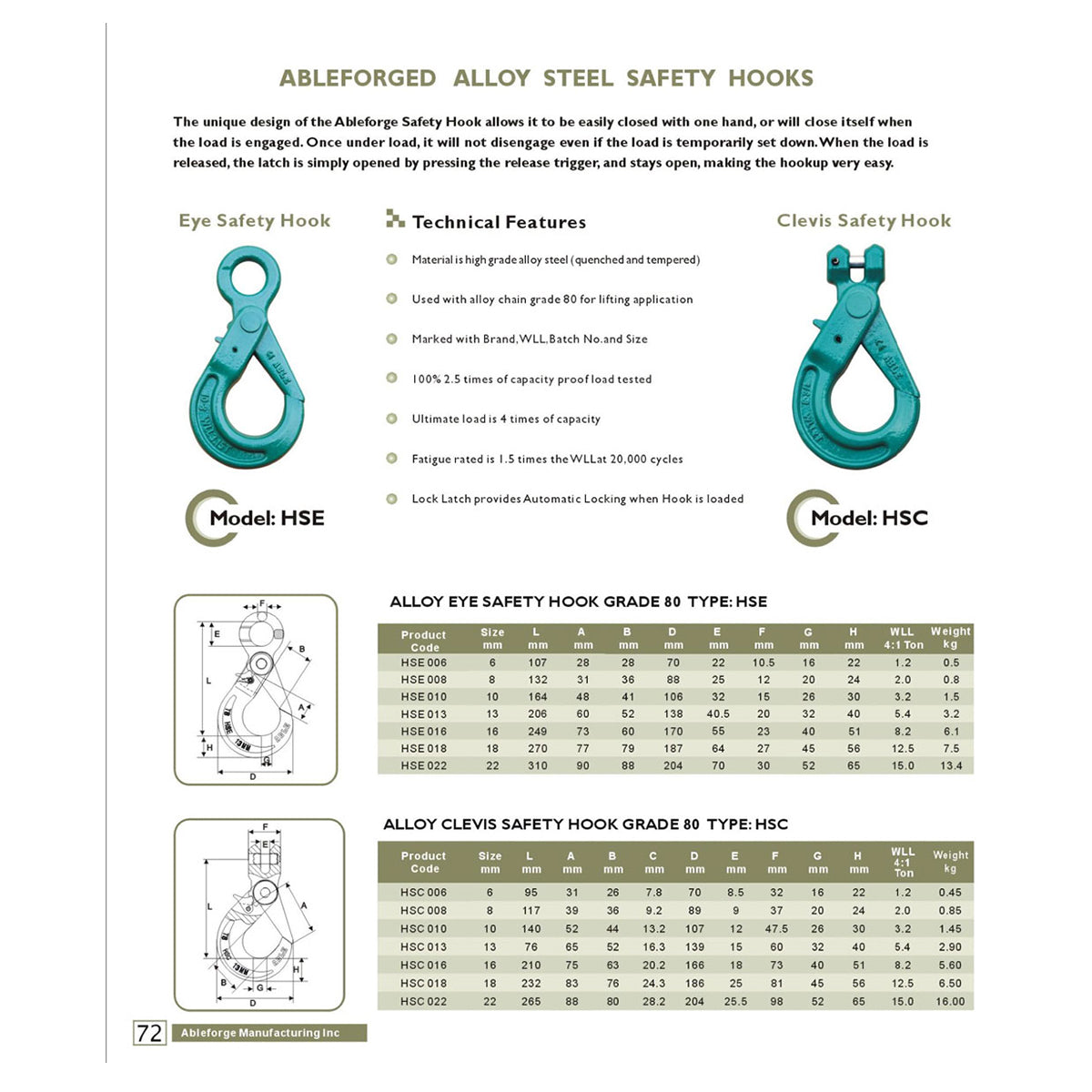

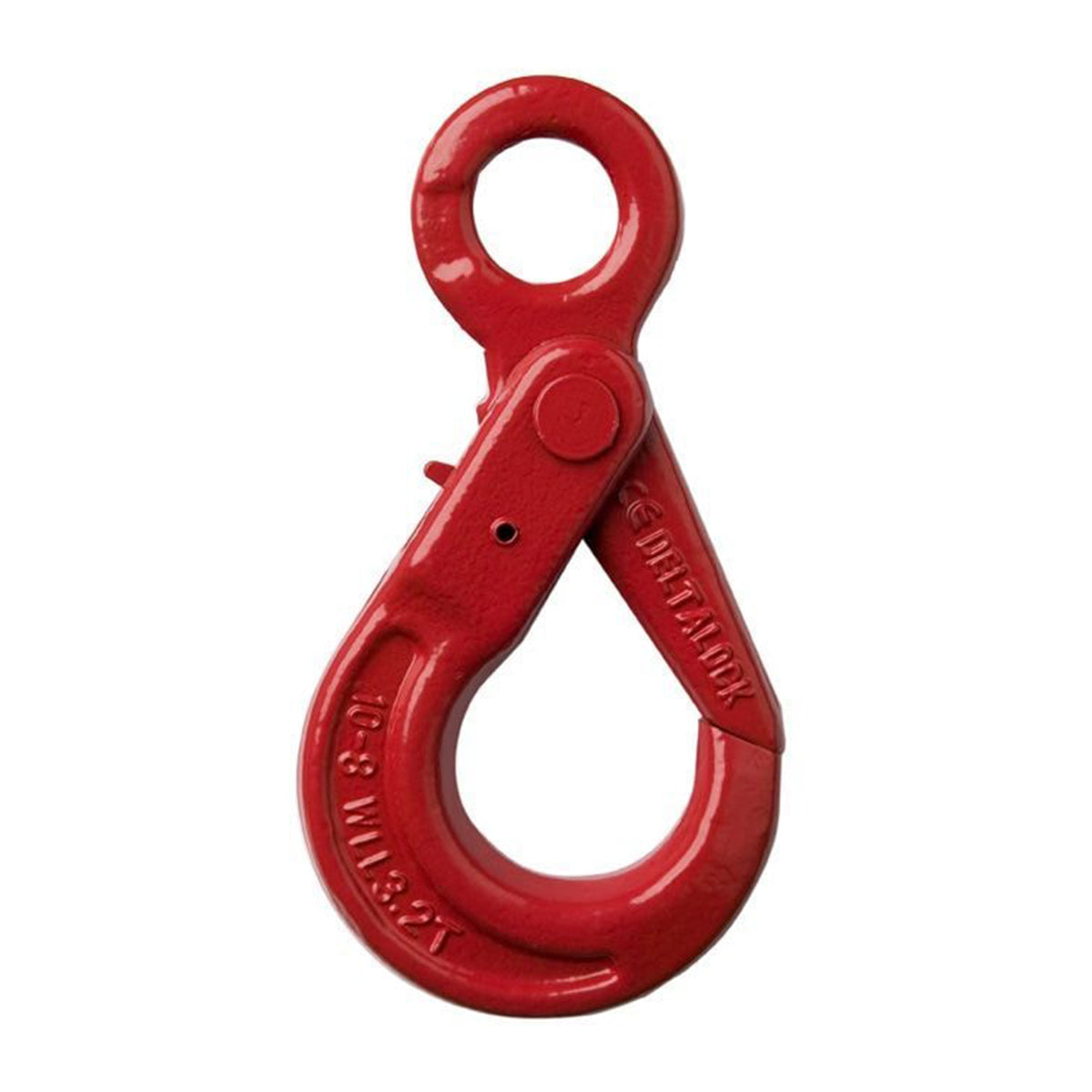

The Ableforge 13mm Eye Self-Locking Safety Hook (Model HSE013) is a high-performance Grade 80 alloy steel hook designed for use with 13mm Grade 80 alloy chain in professional lifting applications. Its unique locking latch closes automatically when the load is engaged, preventing accidental disengagement even if the load is temporarily set down.
Operating the hook is simple: press the release trigger to open the latch, attach the load, and the hook self-closes and locks under load. This one-hand operation makes hookup fast and safe, even in demanding working environments.
Every hook is permanently marked with brand, WLL, batch number and size for full traceability, and is individually proof load tested to 2.5 times its Working Load Limit before leaving the factory.
- Material: High-grade alloy steel, quenched and tempered, Grade 80
- Working Load Limit (WLL): 3.2 tonnes (4:1 safety factor)
- Proof load tested to 2.5× WLL; ultimate load 4× capacity
- Fatigue rated to 1.5× WLL at 20,000 cycles
- Automatic lock latch engages under load; stays open when released for easy re-hooking
- Compatible with 13mm Grade 80 alloy lifting chain
- Permanently marked with brand, WLL, batch number and size
Key features
- 01Automatic self-locking latch
- 02Grade 80 alloy steel
- 03Proof load tested to 25× WLL
- 04Fatigue rated at 15× WLL for 20,000 cycles
- 05One-hand operation
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
