12,000 kg Heavy Duty Shackle Head Snatch Block – HA655A
A heavy-duty single-sheave wire rope snatch block rated at 12,000 kg (12 t), fitted with a shackle head and roller bearing sheave for lifting, pulling, towing and rope-redirect applications.
- Working load limit
- 12,000 kg
- Rope diameter
- 24 mm
- Material
- Structural quality carbon steel
- Length
- 679 mm
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm

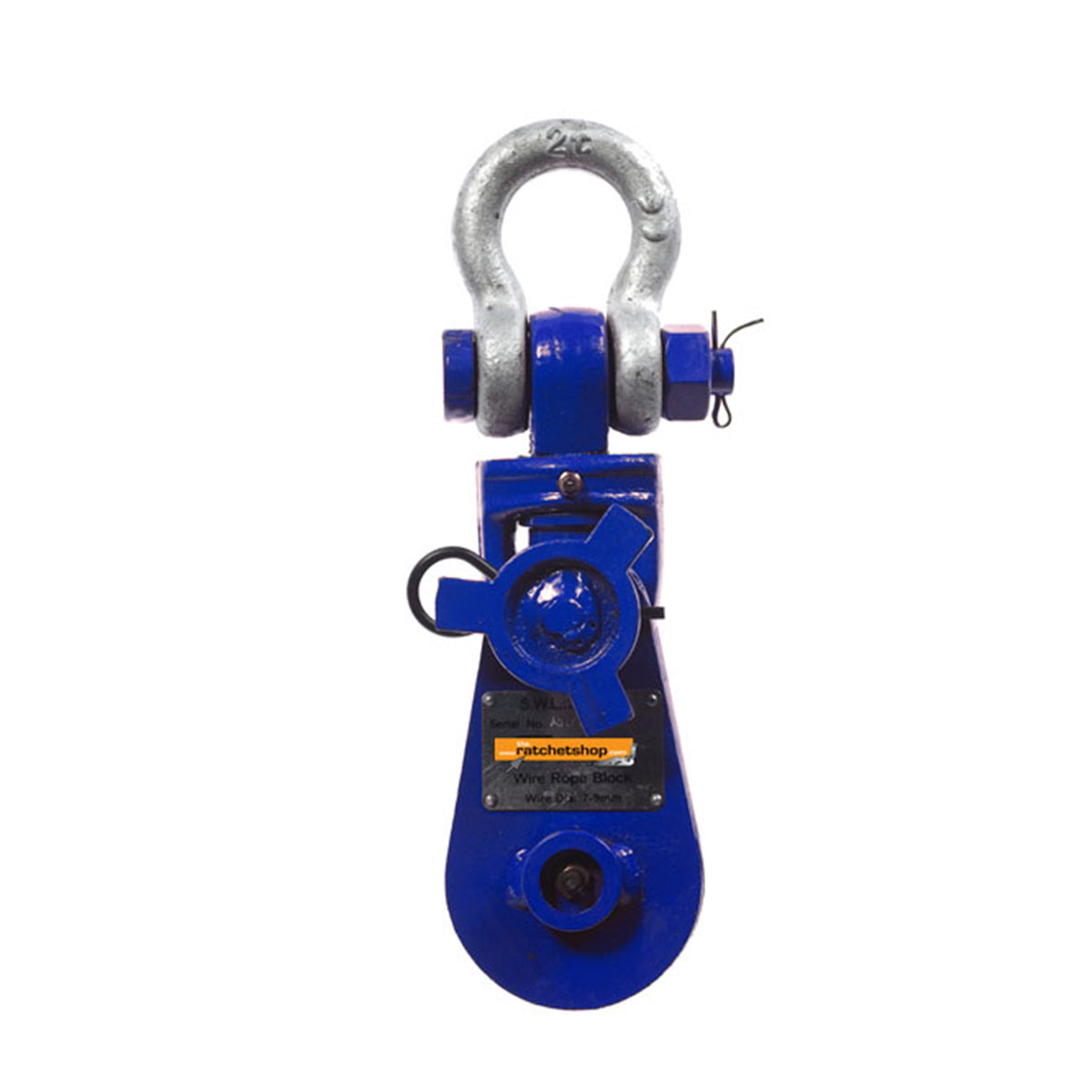

Overview
This heavy-duty shackle-head snatch block is built for demanding industrial, construction and recovery applications. Rated at 12,000 kg (12 t) Safe Working Load with a safety factor of 4×, it is designed for use with wire rope in the 24-26 mm diameter range and features a side-opening body that allows the rope to be inserted or removed without threading, simply remove one bolt.
The block is fitted with a galvanised bow shackle for secure overhead suspension and a roller bearing sheave for smooth, high-speed wire rope operation. The drop-forged steel wheel and structural carbon steel side plates ensure outstanding durability under sustained load.
- Rated capacity: 12,000 kg (12 t) SWL
- Safety factor: 4 times the rated SWL
- Shackle head (LS Type), galvanised bow shackle included
- Drop-forged steel sheave wheel, 250 mm diameter
- Compatible wire rope size: 24-26 mm
- Side-opening body for fast, tool-minimal rope insertion
- Roller bearing sheave for high-speed and high-efficiency operation
- Structural quality carbon steel side plates
- Finished in durable blue paint
Ideal for rigging, load lifting, vehicle recovery, towing and rope redirect duties in construction, marine, utilities and heavy industry.
Key features
- 0112,000 kg rated capacity
- 02Drop-forged sheave wheel
- 03Shackle head suspension
- 04Quick-reeve opening body
- 0524-26 mm wire rope compatible

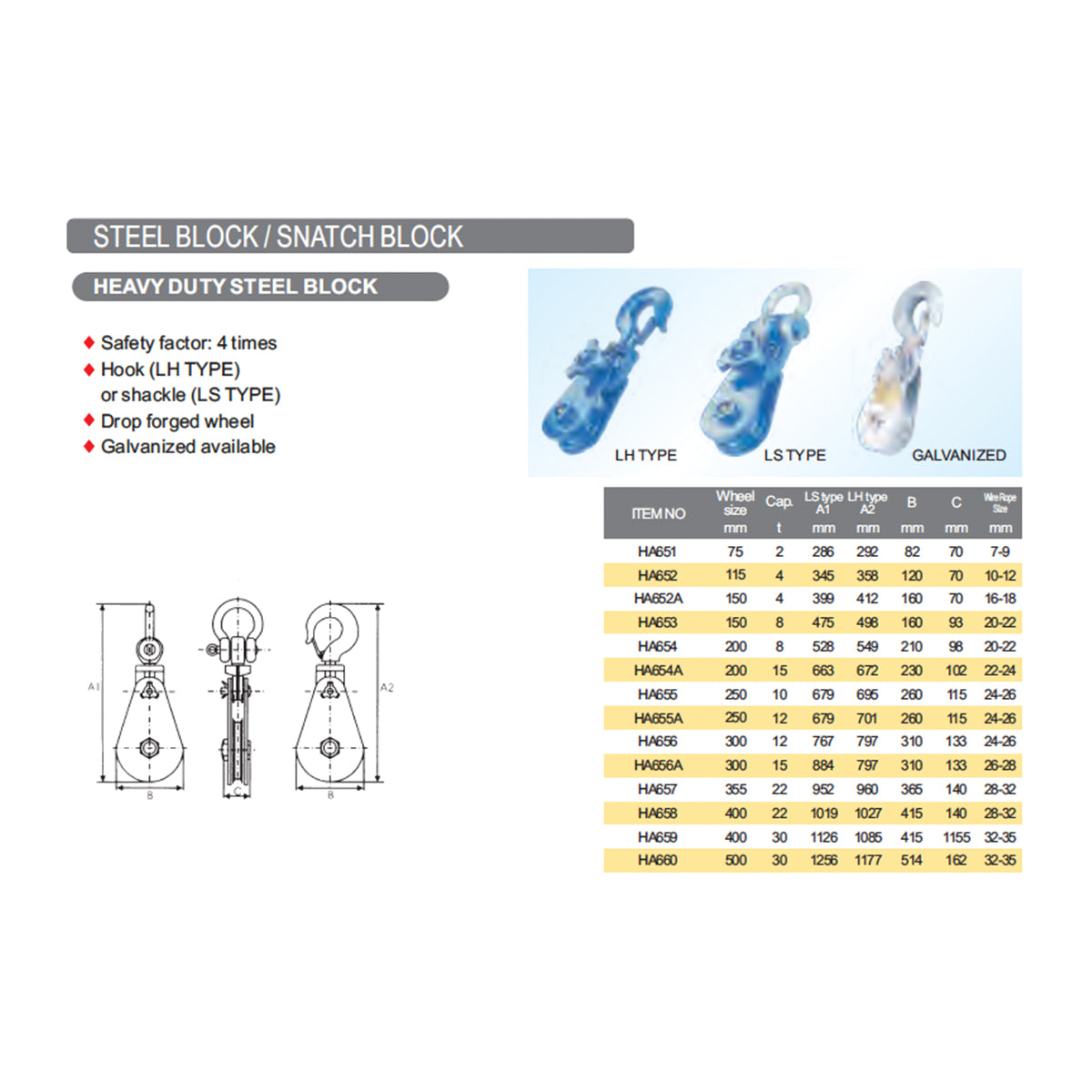

Specification
