12000kg Heavy Duty Hook Head Snatch Block
Heavy-duty steel snatch block with locking hook head, rated at 12 t capacity. Features drop-forged sheaves and a secure bolt-removal rope-insertion system for safe, efficient wire-rope rigging.
- Working load limit
- 12,000 kg
- Rope diameter
- 24 mm
- Webbing width
- 260 mm
- Material
- Structural carbon steel ASTM-A36/A572
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

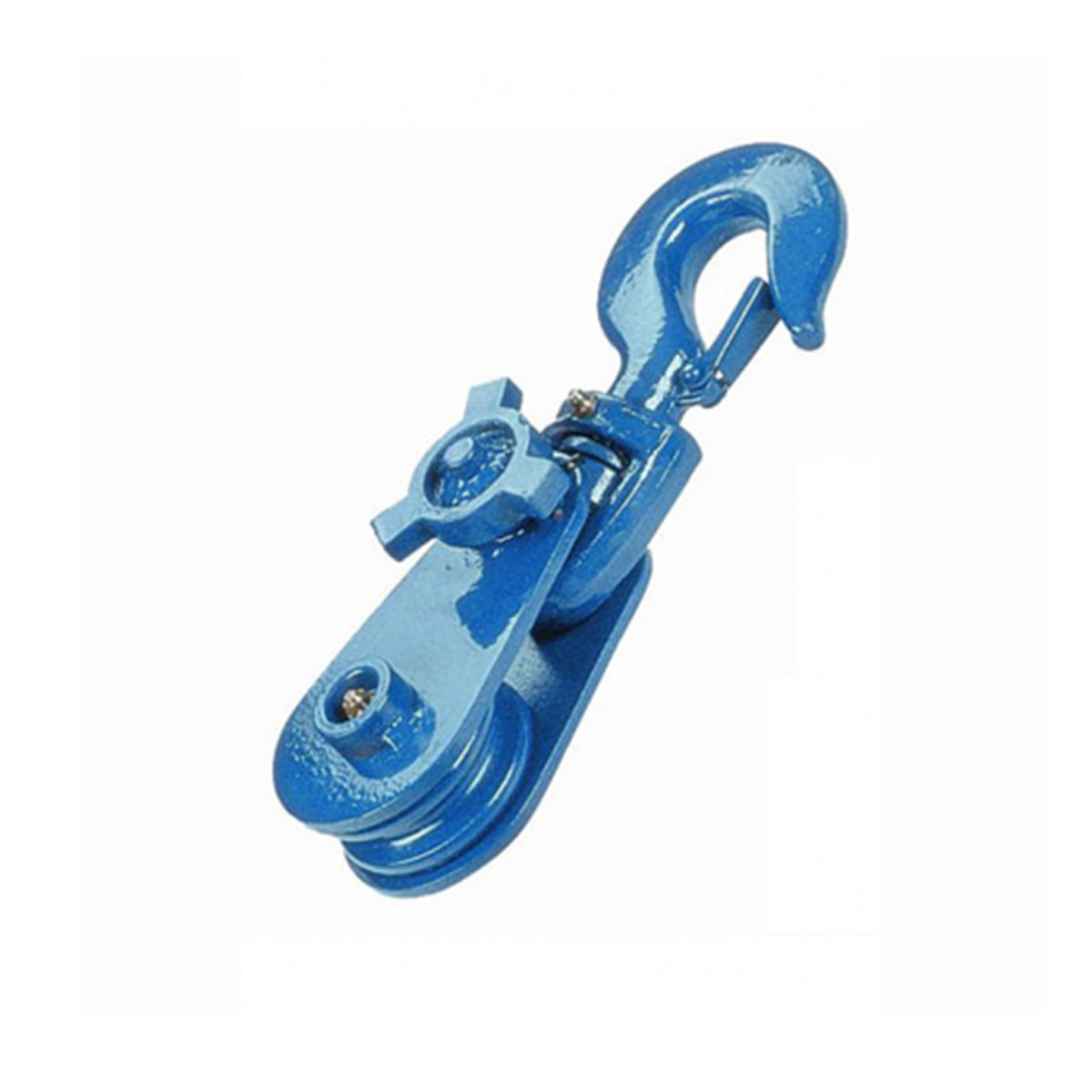

This heavy-duty steel snatch block is designed for demanding lifting and rigging applications where reliability is non-negotiable. Fitted with a locking hook head (LH Type), it connects securely to anchor points while the drop-forged wheel ensures long-lasting performance under load.
The block's side-opening design allows quick and easy insertion of a wire rope into the sheave with the removal of just one bolt, no need to thread the rope from the end. Structural carbon steel plates (ASTM-A36/A572) and cast steel sheaves with flame-hardened grooves make this block exceptionally robust for repeated heavy use.
- Hook head type (LH Type) with safety latch for secure attachment
- Drop-forged wheel with flame-hardened groove for extended wear life
- Structural carbon steel side plates to ASTM-A36/A572
- Single-bolt opening for rapid wire rope insertion into both sheaves
- Safety factor: 4 times the working load limit
Suitable for wire rope sizes 24-26 mm. Also available in LS Type (shackle head) and galvanised finish, contact us for alternatives.
Key features
- 0112 t (12,000 kg) working load limit
- 02Locking hook head (LH Type)
- 03Drop-forged cast steel wheel
- 04Single-bolt side opening
- 05Structural carbon steel plates to astm-A36/A572 deliver exceptional strength and durability in tough conditions

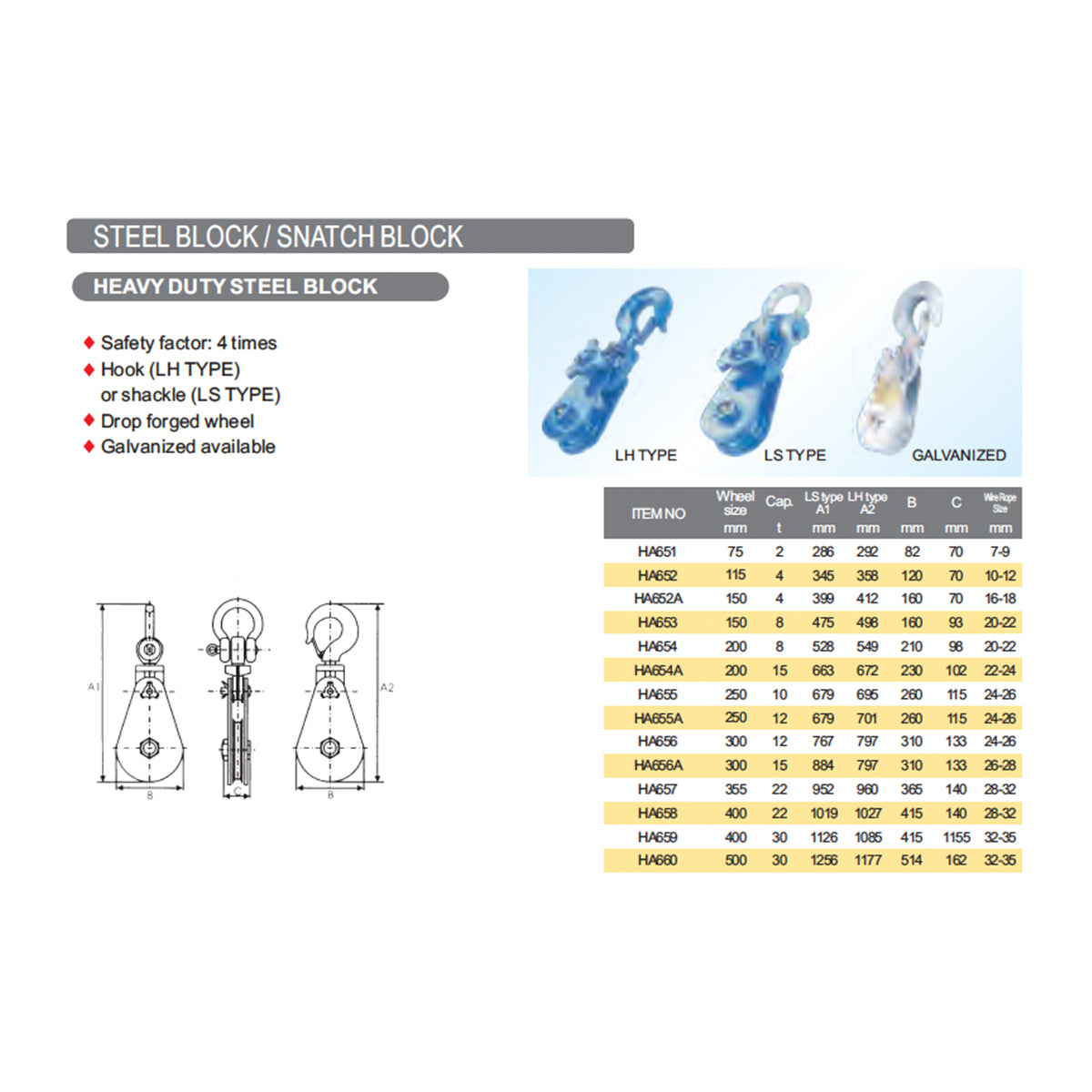

Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
