10mm Eye Self-Locking Safety Hook – Grade 80 Alloy Steel
Grade 80 alloy steel eye self-locking safety hook for 10mm chain. Automatically locks under load and releases instantly with a single trigger press, making it ideal for lifting and rigging applications.
- Working load limit
- 3,200 kg
- Min. breaking load
- 12,800 kg
- Grade
- Grade 80
- Fittings
- Self-locking hook
- Free UK delivery on orders over £180£150 ex VAT
- Returnable only if faulty or damaged in transit
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Every assembly is built to your spec, proof-tested and supplied with a certificate. Made-to-order items are not covered by next-day delivery. Need a non-standard length or fitting? Call 01638 731608.
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

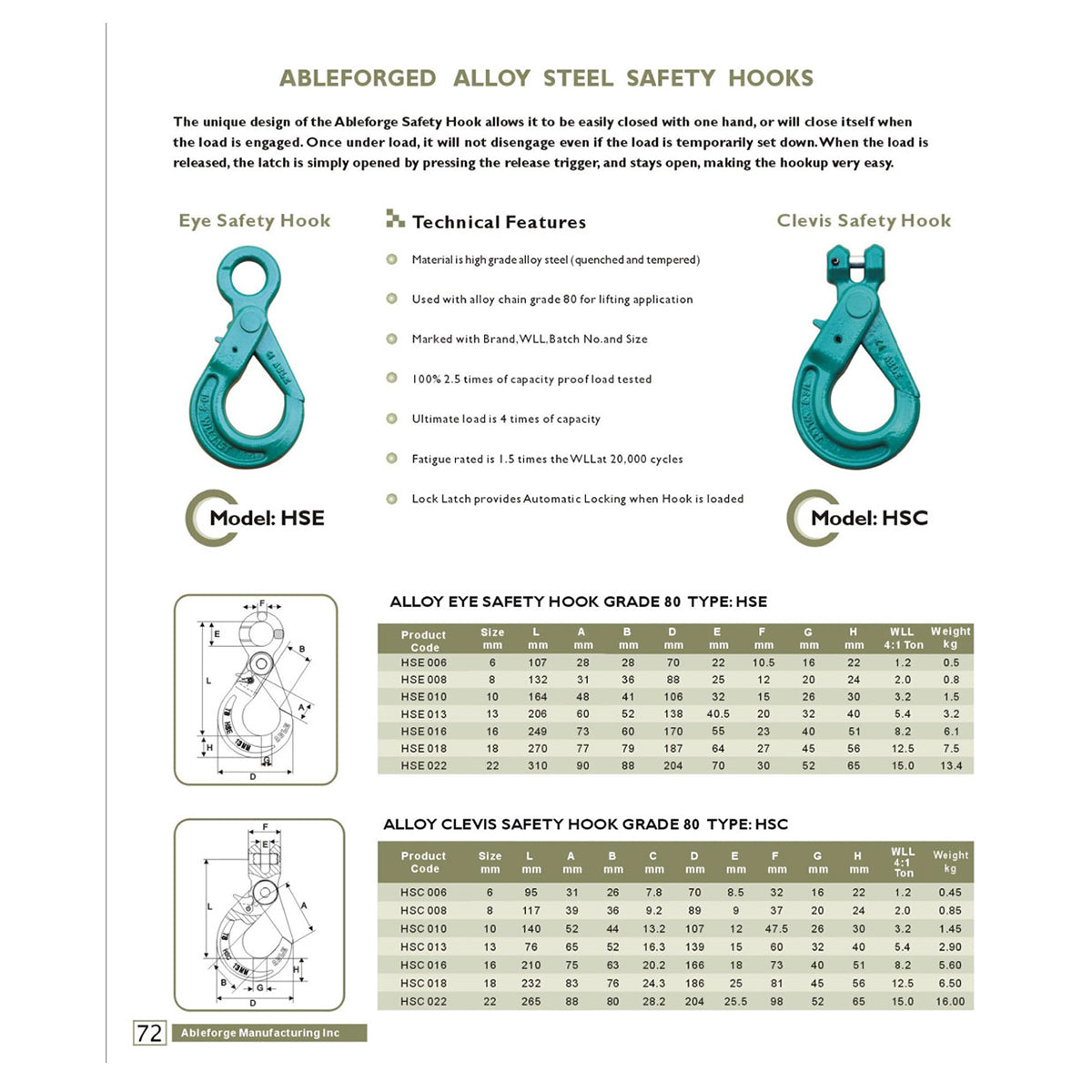

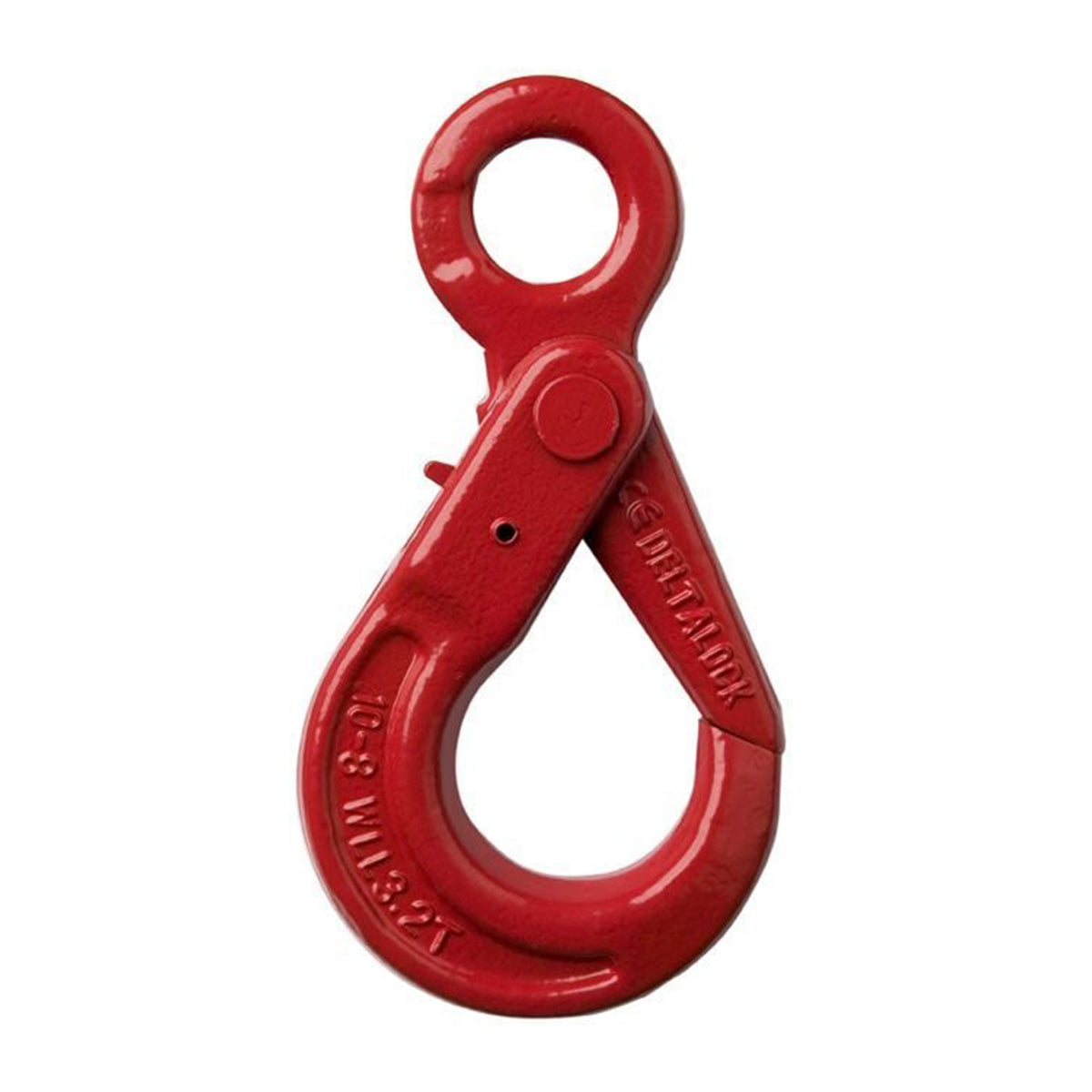

The Ableforge 10mm Eye Self-Locking Safety Hook (Model HSE, Size 10) is a high-performance Grade 80 alloy steel hook designed for use with 10mm Grade 80 alloy lifting chain. Its unique locking latch closes automatically when the hook is loaded, preventing accidental disengagement even if the load is temporarily set down, a critical safety feature in professional lifting and rigging environments.
The latch can be opened with one hand by pressing the release trigger, and it stays open to make re-hooking fast and effortless. Each hook is individually proof load tested to 2.5 times its Working Load Limit (WLL) and stamped with the brand, WLL, batch number, and size for full traceability.
- Material: High grade alloy steel, quenched and tempered
- Grade 80 rated, for use with Grade 80 alloy chain for lifting applications
- Automatic lock latch, closes under load and cannot disengage accidentally
- Proof load tested to 2.5× WLL; ultimate load 4× capacity
- Fatigue rated to 1.5× WLL at 20,000 cycles
- Marked with brand, WLL, batch number and size for traceability
- One-hand operation with press-to-release trigger
Key features
- 01Automatic locking latch
- 02Grade 80 alloy steel
- 03Proof load tested
- 04Easy one-hand release
- 05Fully marked for traceability
Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
