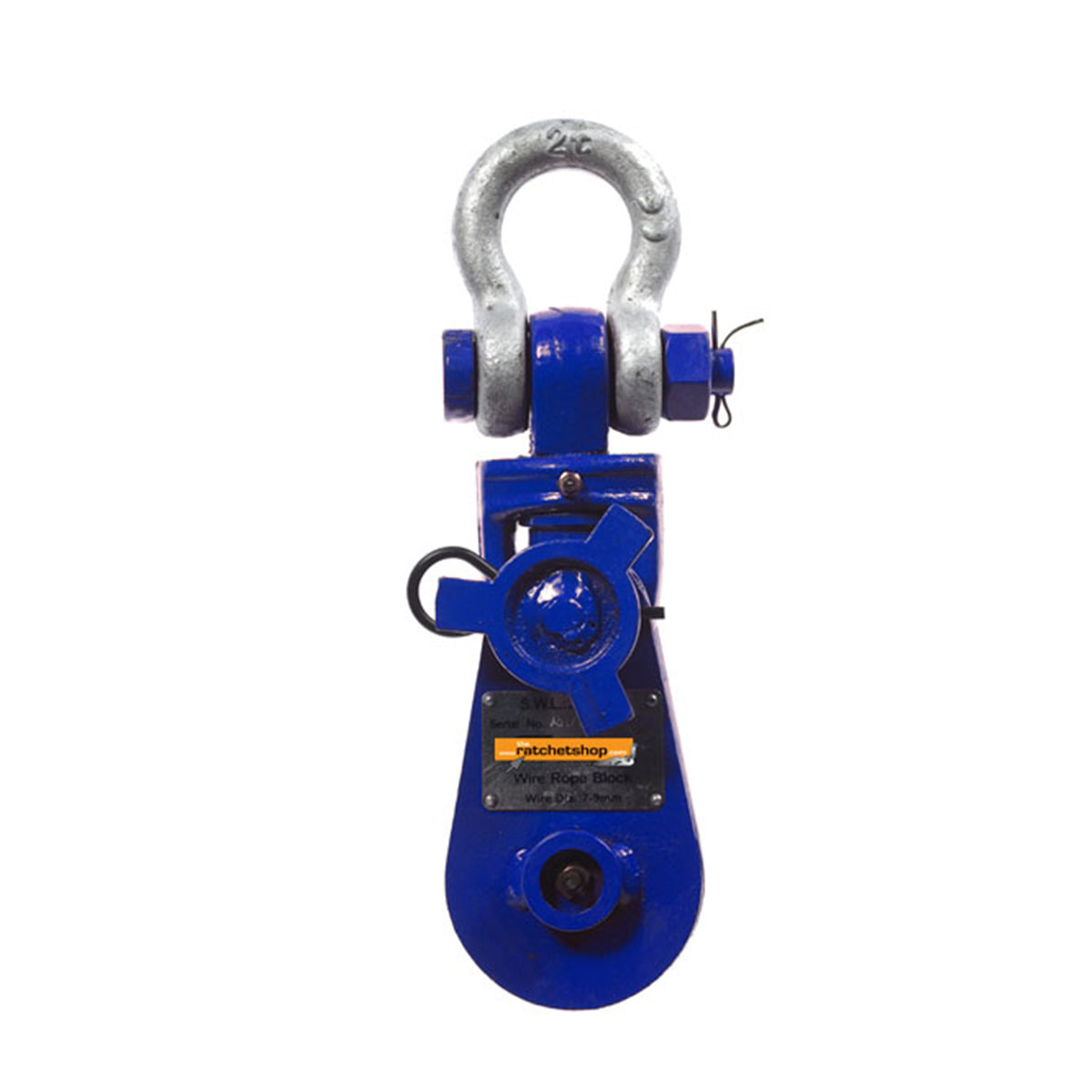

10000kg Heavy Duty Shackle Head Snatch Block
A heavy-duty steel snatch block with shackle head rated to 10,000 kg, designed for lifting, pulling, towing and wire rope redirection in demanding industrial applications.
- Working load limit
- 10,000 kg
- Rope diameter
- 24 mm
- Webbing width
- 260 mm
- Material
- Structural quality carbon steel, ASTM A36/A572
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This heavy-duty shackle head snatch block is built for the most demanding lifting, pulling, towing and rope-redirection tasks. Rated to a 10,000 kg (10 tonne) capacity and finished in a robust blue coating, the block is fitted with a roller bearing sheave for smooth, high-speed wire rope operation.
The drop-forged wheel and carbon steel side plates deliver exceptional strength and durability, while the opening feature allows wire rope to be inserted quickly without threading, simply remove one bolt for fast rigging and re-rigging on site. The galvanised shackle head provides a secure and reliable suspension point.
Suitable for use in construction, marine, forestry, recovery and factory environments wherever a dependable heavy-duty block is required.
- Rated capacity: 10,000 kg (10 t)
- Drop-forged sheave wheel for superior strength
- Roller bearing sheave for high-speed wire rope applications
- Opening side plates for fast wire rope insertion, single bolt removal
- Galvanised shackle head suspension fitting
- Side plates in structural quality carbon steel (ASTM A36/A572)
- Safety factor: 4 times
Key features
- 0110,000 kg (10 t) rated capacity
- 02Roller bearing sheave ensures smooth
- 03Drop-forged steel wheel and carbon steel plates deliver outstanding strength and long service life
- 04Opening side-plate design
- 05Galvanised shackle head provides a secure
Specification
