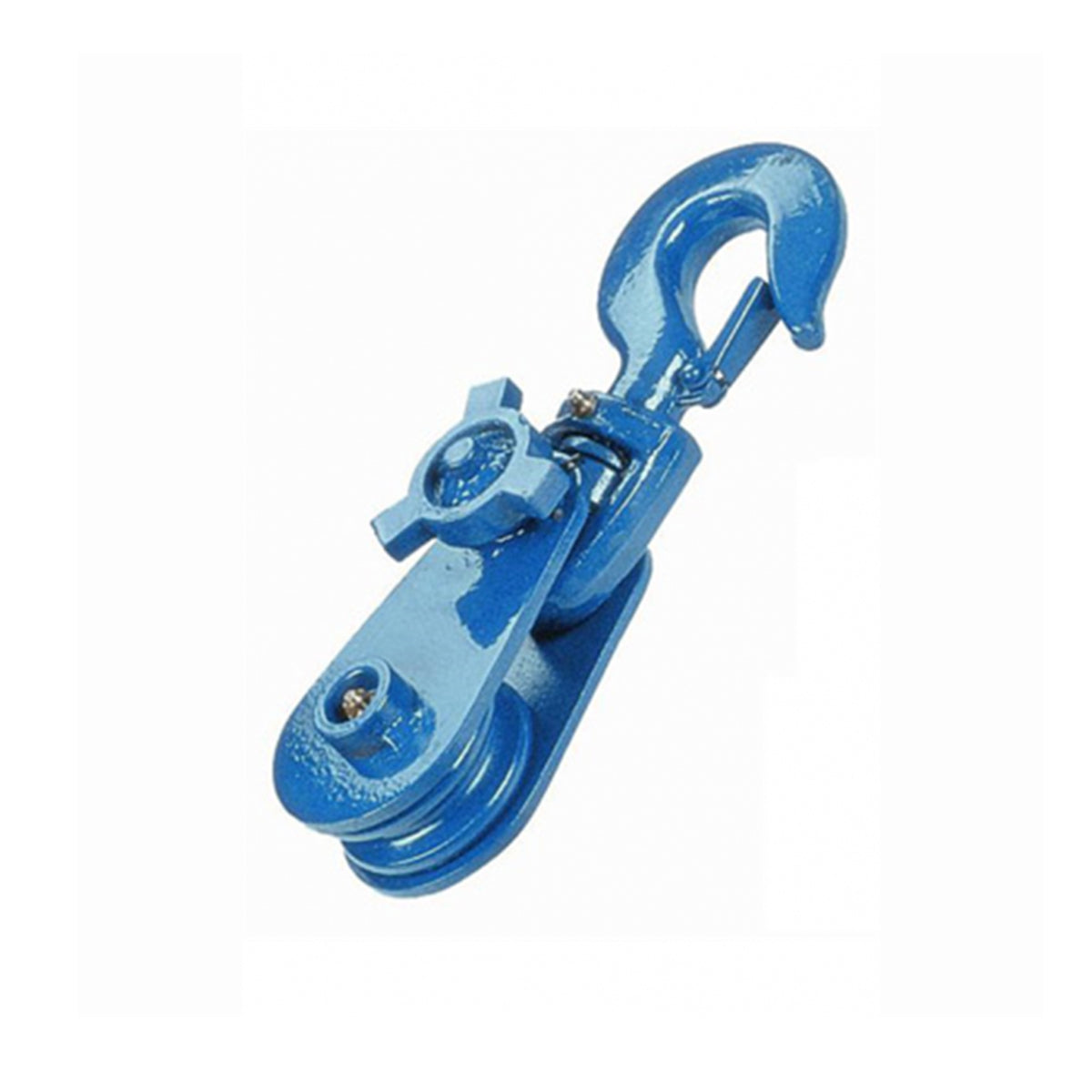

10000kg Heavy Duty Hook Head Snatch Block
A heavy-duty snatch block with a safety hook head, rated to 10,000 kg. Fitted with a roller bearing sheave for smooth, high-speed wire rope applications in lifting, pulling and towing.
- Working load limit
- 10,000 kg
- Material
- Cast steel with flame-hardened groove
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
2T 1/2" Blue Pin Dee Shackle – ABLE £5.20£4.33
-
3.25T 5/8" Blue Pin Dee Shackle £6.83£5.69
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview
This heavy-duty snatch block is engineered for demanding lifting, pulling, towing and rope-redirect applications. Rated to a working load limit of 10,000 kg, it is built from high-quality materials throughout and fitted with a swivel safety hook for quick, secure attachment.
The roller bearing sheave ensures smooth, low-friction rope travel even at high speeds, extending both rope and block service life. An opening gate allows wire rope to be inserted into the sheave without the need to thread the rope through, saving time and effort on site.
- Plates constructed from structural quality carbon steel to ASTM-A36/A572
- Cast steel sheave with flame-hardened groove for long-lasting wear resistance
- Alloy steel hook and fittings, heat treated and tempered for maximum strength
- Gate opening allows easy insertion and removal of wire rope without threading
- Swivel safety hook with locking latch for secure and versatile attachment
Manufactured in accordance with EU standard EN 13157:2003, this snatch block is suitable for use with steel wire rope and fibre rope. Finished in a durable blue coating for corrosion resistance and easy identification on site.
Key features
- 0110,000 kg working load limit
- 02Roller bearing sheave delivers smooth
- 03Gate opening
- 04Heat-treated alloy steel hook and fittings
- 05Manufactured to EU standard EN 13157:2003
Specification
