1,600kg Wire Rope Puller x 60m
Heavy-duty hand-operated wire rope puller with a 1,600kg lifting capacity and 60m of galvanised steel wire rope included. Compact, lightweight aluminium body suitable for lifting, pulling and positioning at any working angle.
- Working load limit
- 1,600 kg
- Pulling capacity
- 2,800 kg
- Rope diameter
- 11 mm
- Fittings
- Swivel hook
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
Easy Winder Ratchet Strap Winder Tool £9.60£8.00
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

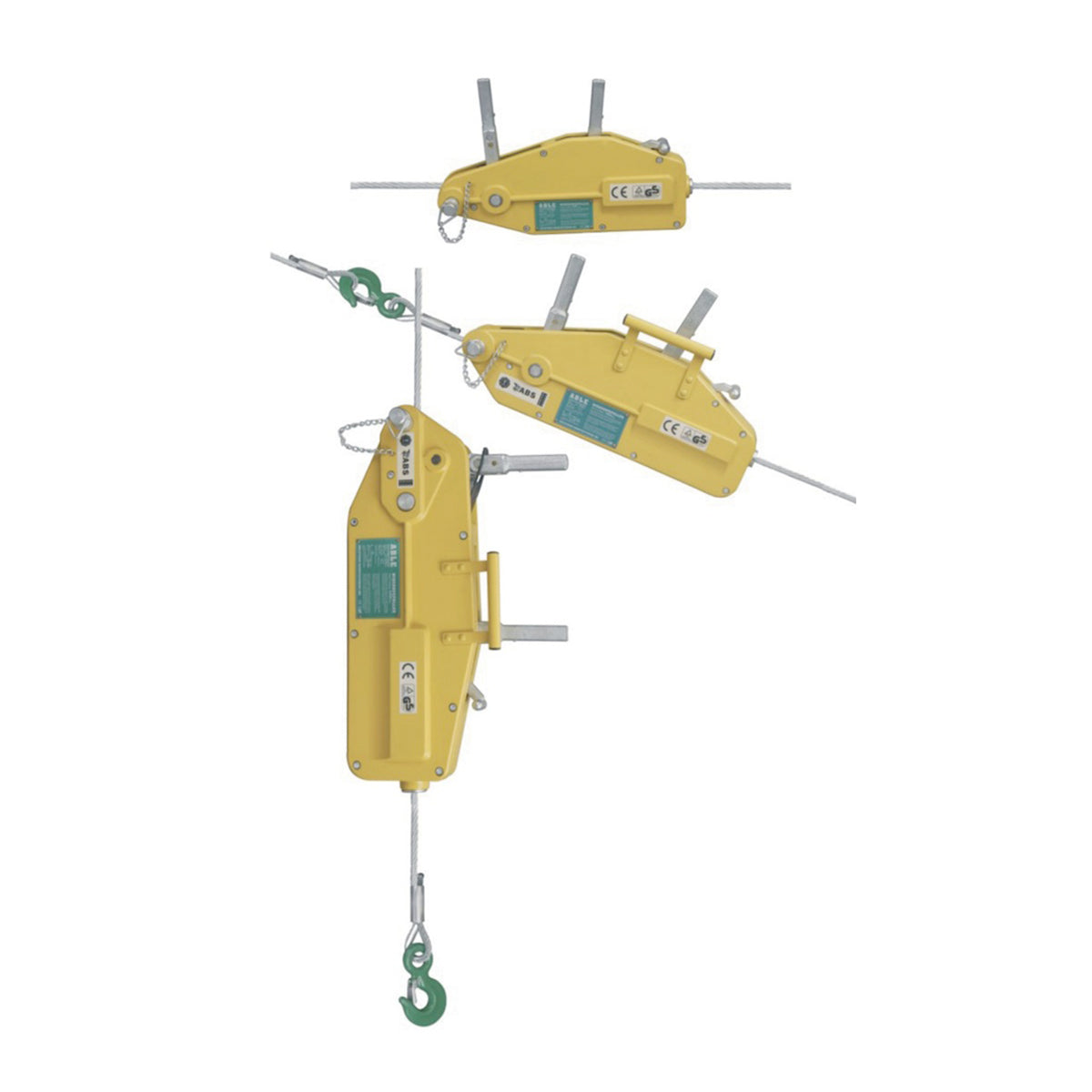

The ABLE WRP16 Wire Rope Puller is a robust, hand-operated pulling and lifting device designed for demanding site, industrial and transport applications. Built around a high-strength cast aluminium alloy body, it is compact and light enough to carry to any location, yet capable of lifting up to 1,600 kg and pulling up to 2,800 kg.
Unlike a conventional winch, the ABLE WRP requires no wire-drum to store the rope. Moving the handle left and right draws the wire rope straight through the body via two internal chucks, allowing the rope to be used at any working angle and at any length, ideal for confined spaces or extended runs.
Supplied complete with 60 metres of galvanised steel wire rope (IWRC11, 11 mm diameter) and a heavy-duty swivel hook, the puller is ready to work straight from the box.
Key Features
- Lifting capacity 1,600 kg; pulling capacity 2,800 kg; tested to 3,000 kg
- High-strength cast aluminium alloy body, compact, smooth-contour design for horizontal and vertical use
- Transmission speed 3 metres per minute, among the fastest of any hand-driven hauling device
- Two built-in safety devices (safety shear pins) plus a safety hook to prevent rope disengagement
- Rope clamp system allows quick, tool-free installation and removal of the wire rope
- Adjustable forward and backward levers; two spare shear pins housed in the carrying handle
- Wire rope safety factor: 5 × WLL; overall structure breaking strength: 4 × WLL
- CE marked and GS certified; every rope operationally tested to 150% of rated capacity with individual test certificate
Typical Applications
- Construction: pulling of structural frames, laying steel or concrete pipe, sheet pile pulling
- Railway: pulling rolling stock, removal of vehicles, laying track
- Shipbuilding: manoeuvring ships, stowing cargo
- Transport: positioning heavy machinery, loading and unloading bulky packages
Key features
- 011,600 kg lifting capacity and 2,800 kg pulling capacity
- 02Supplied with 60 m of 11 mm galvanised steel wire rope (IWRC11) and a heavy-duty swivel hook
- 03No wire drum needed
- 04High-strength cast aluminium alloy body keeps the unit compact and lightweight without compromising structural integrity
- 05Two built-in safety shear pins plus a safety hook ensure safe operation
Specification
