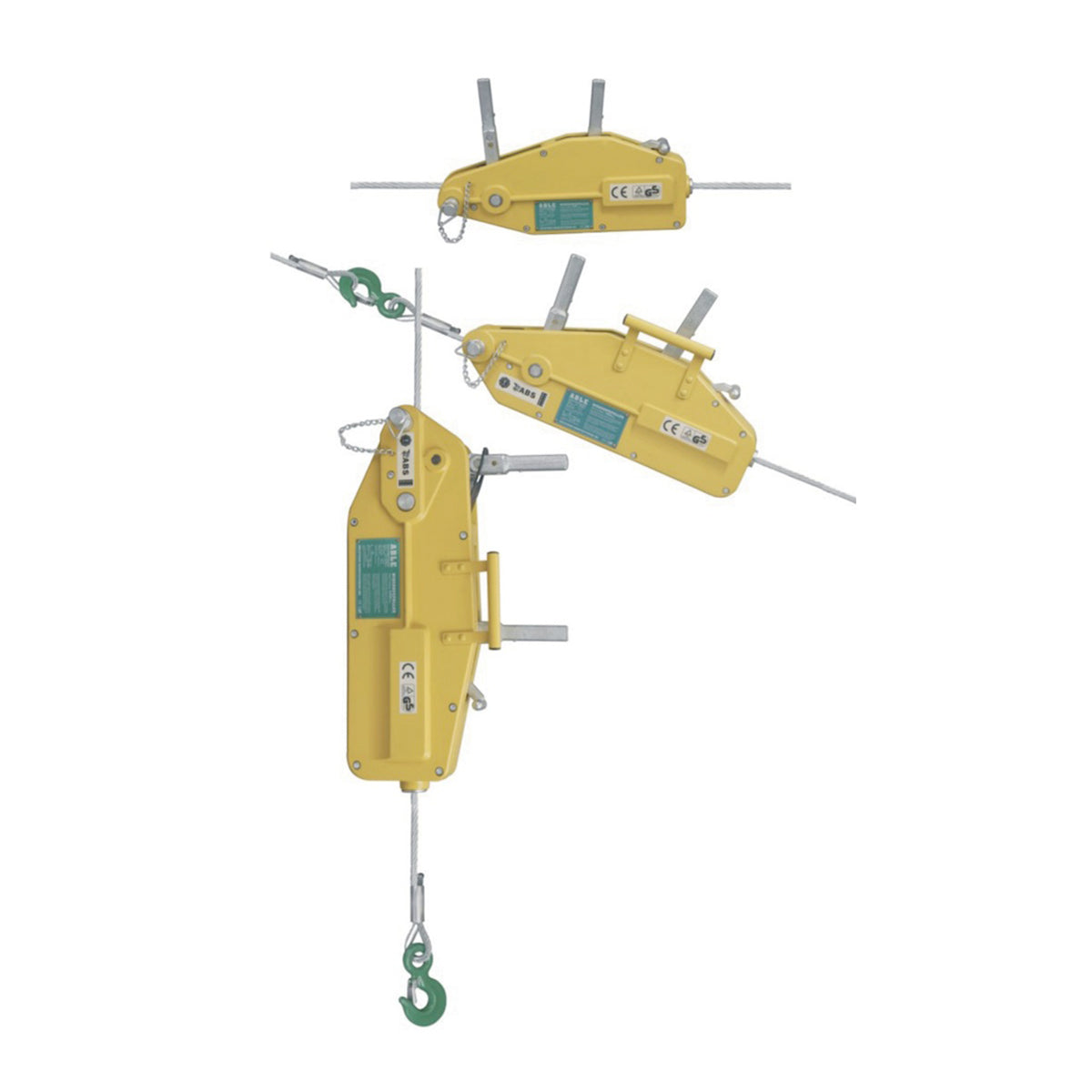

1,600kg Wire Rope Puller x 30m

The Able WRP16 wire rope puller is a compact, hand-operated pulling and lifting device built for demanding site, industrial, railway, shipbuilding and transport applications. Unlike conventional winches, it requires no wire drum, the rope passes straight through the body via a twin-chuck mechanism, keeping the unit small and light without sacrificing capacity.

Operating the adjustable handle on the forward or backward lever draws the 11 mm galvanised steel wire rope through or back through the puller, delivering a transmission speed of 3 metres per minute, among the fastest of any hand-driven hauling device. The wire rope is always drawn out straight, enabling use at any working angle, horizontal, vertical or anywhere in between.

The high-strength cast aluminium alloy body features a smooth contour with a large flat bottom surface for stability in all positions. Two independent safety devices guarantee safe operation, and a built-in shear pin protects against overload at approximately 130% of rated capacity without requiring load removal. A safety hook prevents the wire rope from coming off during operation.

Every rope is operationally tested to 150% of the rated capacity and is supplied with an individual test certificate. CE and GS marked.

• Lifting capacity: 1,600 kg, pulling capacity: 2,800 kg
• Test load: 3,000 kg, wire rope breaking strength: 9,680 kg
• Wire rope diameter: 11 mm (IWRC11), wire rope safety factor: 5 × WLL
• Overall structure breaking strength: 4 × WLL
• Transmission speed: 3 m per minute
• Safety device: safety pins (two independent)
• Net weight (without wire rope): 12 kg
• Supplied with 30 m of galvanised steel wire rope

Typical applications include: construction pulling and lifting, railway maintenance (pulling of rail, removal of wagons, laying of track), shipbuilding manoeuvring, transport and loading of heavy packages, and machinery positioning.
