1,600kg Wire Rope Puller x 20m
A compact, hand-operated wire rope puller with a 1,600kg lifting capacity and 20m galvanised wire rope included. Ideal for pulling and lifting vehicles, logs, machinery and heavy loads at any working angle.
- Working load limit
- 1,600 kg
- Pulling capacity
- 2,800 kg
- Rope diameter
- 11 mm
- Fittings
- Swivel hook
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
Easy Winder Ratchet Strap Winder Tool £9.60£8.00
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

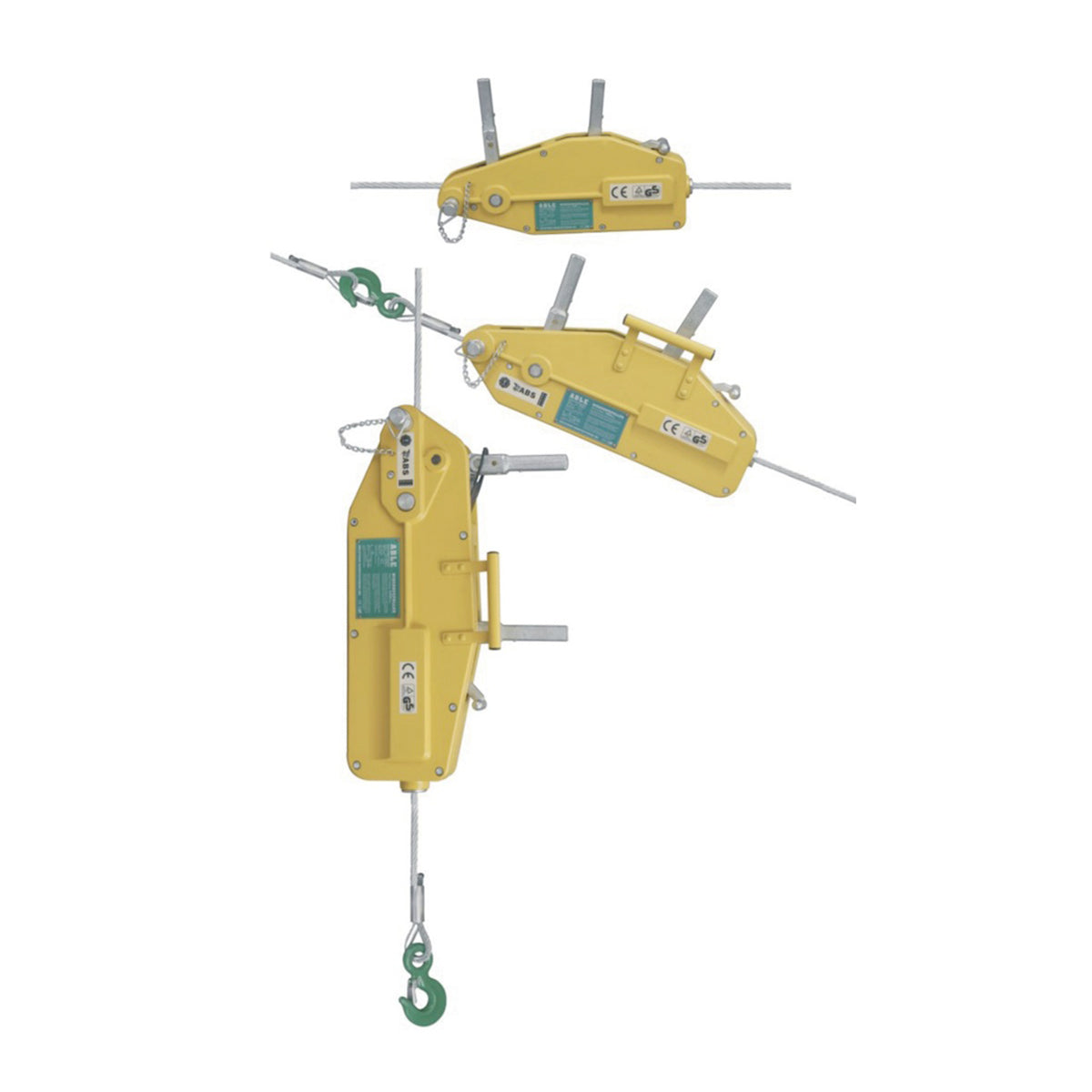

The Able WRP16 wire rope puller is a compact, lightweight hand-operated hauling device capable of lifting up to 1,600kg and pulling up to 2,800kg. Unlike conventional hoists, it requires no drum to store the rope, the wire is drawn out straight, keeping the unit small and easy to transport. Simply move the handle left and right to feed the wire rope through two internal chucks, advancing the load at up to 3 metres per minute.
Supplied complete with a 20-metre galvanised wire rope (11mm diameter, IWRC11 construction) and a heavy-duty swivel hook, it is ready to work straight from the box. The high-strength cast aluminium alloy body keeps weight to a minimum without sacrificing durability, and the large flat bottom surface provides stability in both horizontal and vertical working positions.
Two independent safety devices, including a built-in shear pin that activates at approximately 130% overload and a safety hook that prevents the rope coming off during operation, ensure safe use in demanding environments. CE and GS marked.
- Lifting capacity: 1,600kg (WLL)
- Pulling capacity: 2,800kg
- Test load: 3,000kg
- Wire rope diameter: 11mm (IWRC11)
- Breaking strength of wire rope: 9,680kg
- Wire rope safety factor: 5 × WLL
- Overall structure breaking strength: 4 × WLL
- Transmission speed: 3 metres per minute
- Safety device: safety pins
- Net weight (without wire rope): 12kg
- Rope length supplied: 20m
Typical applications include: construction pulling and lifting, railway track laying, shipbuilding manoeuvring, vehicle recovery, positioning of heavy machinery, steel alignment during erection, and loading/unloading of bulky packages.
Key features
- 011,600kg lifting capacity and 2,800kg pulling capacity
- 02Supplied with 20m of 11mm galvanised steel wire rope and a heavy-duty swivel hook
- 03No rope drum required
- 04Works at any angle
- 05Two built-in safety devices including overload shear pins and a safety hook
