0.80t Long Shank Collared Eyebolt – Metric Thread (L1604)
Heavy-duty carbon steel C15 long shank collared eyebolt with metric thread, heat treated and certified. Rated at 0.80 tonnes WLL, ideal for vertical and angled lifting applications.
- Working load limit
- 0.8 kg
- Material
- Carbon Steel C15
- Length
- 178 mm
- Free UK delivery on orders over £180£150 ex VAT
- 30-day returns on stock items
-
Easy Winder Ratchet Strap Winder Tool £9.60£8.00
Questions? Call the team on 01638 731608, Monday to Friday, 9am to 5pm
Overview

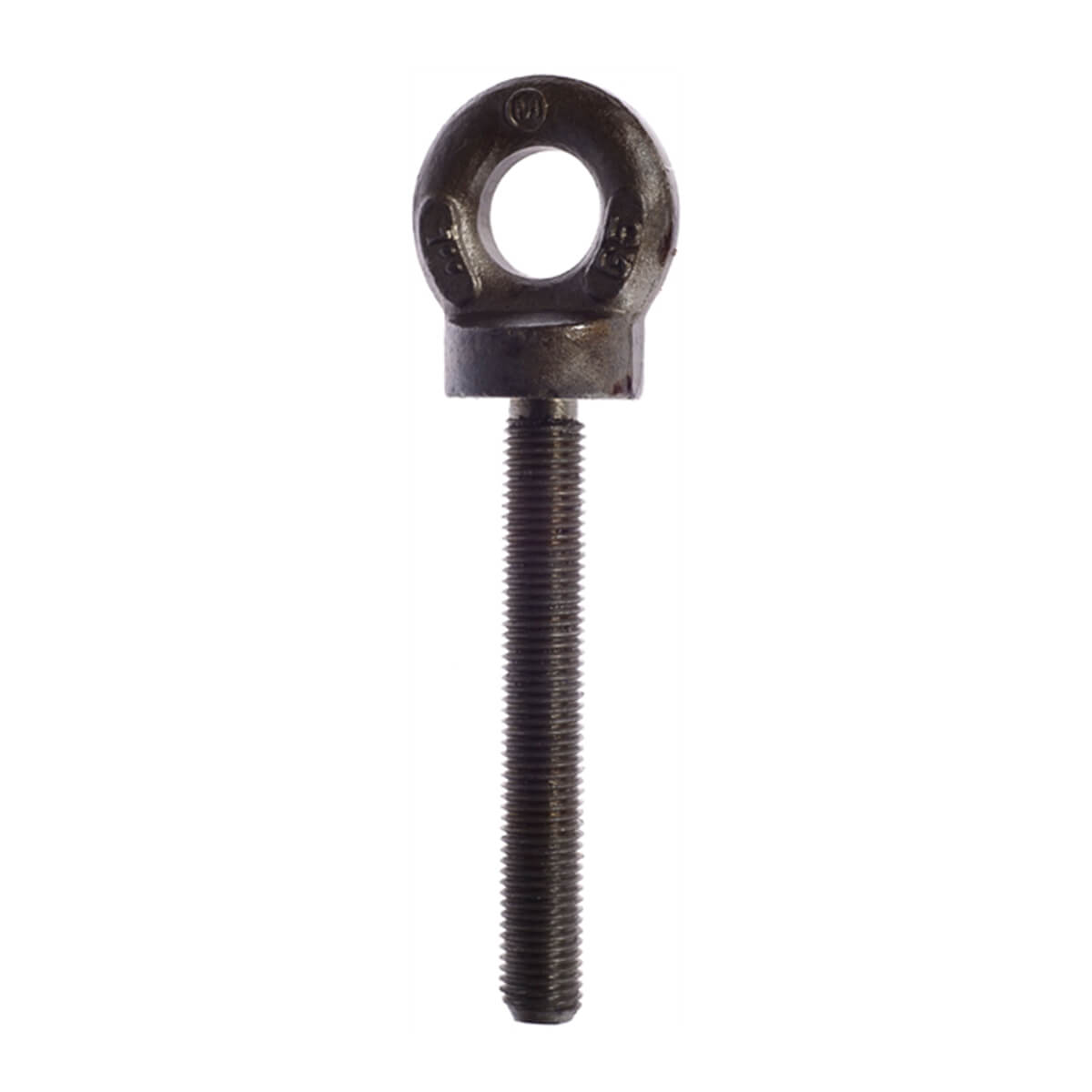

Long Shank Collared Eyebolt, Metric Thread, 0.80t WLL (L1604)
This long shank collared eyebolt is manufactured from Carbon Steel C15, heat treated, and tested and certified for lifting use. The extended shank length allows secure installation through thick materials, while the integral collar ensures load is transferred safely into the structure. Suitable for vertical lifts and angled lifts, the sling angle should not exceed 45° from the vertical.
The pull must always be in the same plane as the eye. Available with an electro galvanised finish on request (self colour supplied as standard).
- Material: Carbon Steel C15, heat treated for strength and durability
- Self colour finish as standard; electro galvanised finish available on request
- Tested and certified
- Metric thread, suits standard metric fixings
- Long shank design for use through thicker substrates
- Collared design allows angled lifts up to 45° from vertical
Key features
- 01080t Working Load Limit (WLL)
- 02Long shank design (178 mm total length)
- 03Collared eyebolt supports angled lifts
- 04Metric thread (M16)
- 05Self colour finish as standard

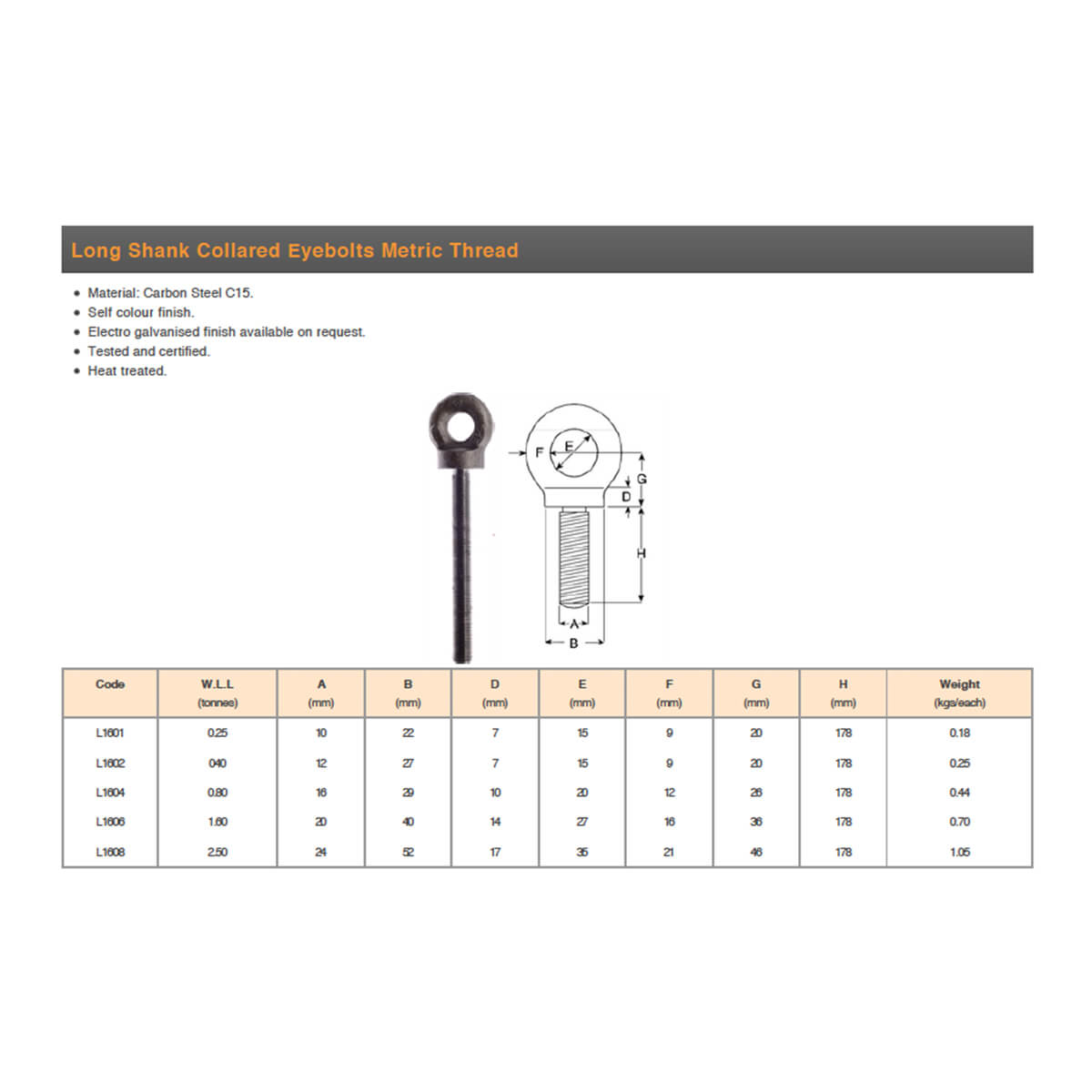

Specification
Delivery and returns
Next-day delivery to England, Wales and Scotland (excluding the Highlands) on stock orders placed before 2.45pm. Free delivery on orders over £180£150 ex VAT.
Stock items can be returned within 30 days. Made-to-measure items, including lifting chains, can only be returned if faulty or damaged in transit.
